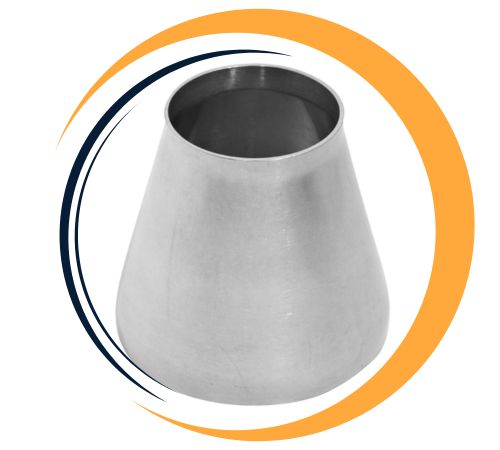

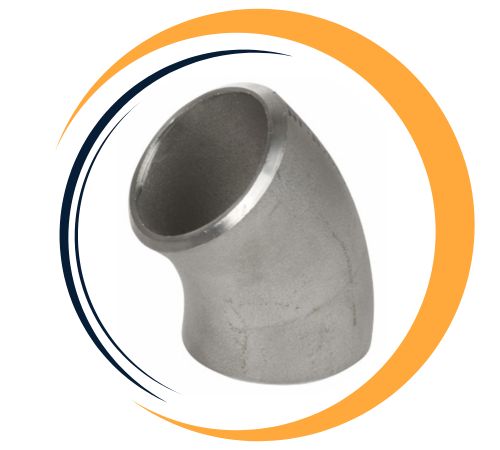

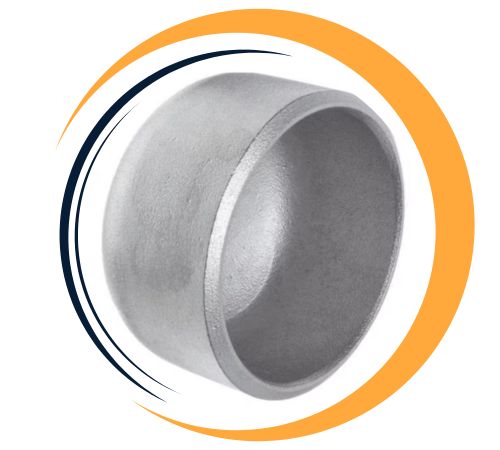

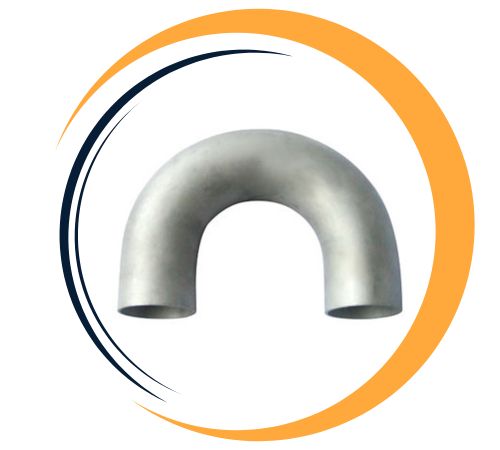

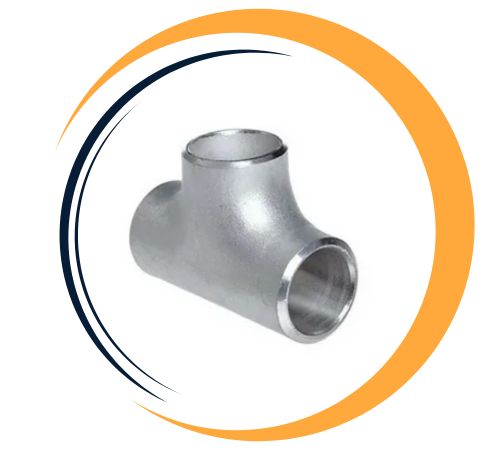

A reputable manufacturer and supplier in Houston, USA, Vipul Pipes and Tubes provides a large selection of high-quality 304H stainless steel buttweld fittings made for high-temperature and high-pressure applications. The high-carbon form of 304 stainless steel, known as SS 304H, offers better strength and resistance to creep at higher temperatures. ASTM A403 standards are followed in the manufacturing of these buttweld fittings, which include elbows, tees, reducers, and caps, to guarantee accuracy, robustness, and longevity. When corrosion resistance and high-temperature performance are crucial, Vipul’s 304H fittings are perfect for use in boilers, heat exchangers, power plants, and petrochemical applications.
Specifications : ASTM A403 / ASME SA403
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : Seamless Butt Weld Fittings : 1/2″ – 10″ | Welded Butt Weld Fittings : 1/2″ – 48″
Schedule : SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type : Seamless / ERW / Welded / Fabricated
Thickness :20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
Vipul Pipes and Tubes’ 304H stainless steel buttweld fittings are composed of 18–20% chromium, 8–11% nickel, and 0.04–0.10% carbon. 304H’s higher carbon content improves creep resistance and high-temperature strength. Tensile strength ≥515 MPa, yield strength ≥205 MPa, and elongation ≥35% are all provided by these fittings. SS 304H is appropriate for pressure-bearing, thermally stressed applications because it retains its structural integrity at temperatures as high as 800°C (1472°F). In demanding industrial settings, its oxidation resistance and mechanical strength guarantee dependable performance.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| 304H | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | min: 0.04 max:0.10 | 0.75 max | 2.0 max | 0.045 max | 0.03 max | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
| 304H | 75 | 30 | 40 | 201 | 92 |
Harry Fittings is a leading supplier of Stainless Steel 304H Buttweld Fittings in Houston, USA. We offer an extensive range of Stainless Steel 304H Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| SS 304L | S30403 | 1.4306/1.4307 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 304S11 | 03Х18Н11 |
| SS 304H | S30409 | 1.4301 | – | – | – | – | – |
Stainless Steel 304H Buttweld Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 304H Buttweld Fittings offer excellent mechanical properties, high thermal strength and corrosion resistance, making them ideal for critical operating conditions They maintain structural integrity at high temperatures, ensuring long life and performance in heat exchanger, power plant and chemical processing applications Their high carbon content resists creep increases, thereby reducing the risk of deformation over time. These components are easily welded, providing a secure, watertight connection. Additionally, 304H’s versatility and scaling resistance make it suitable for a wide range of applications, from petrochemical to food processing.
| SS 304/304L | ||||||
|---|---|---|---|---|---|---|
| Density lbm/in3 | Thermal Conductivity (BTU/h ft. °F) | Electrical Resistivity (in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/ °F x 10-6 | Specific Heat (BTU/lb/ °F) | Melting Range (°F) |
| at 68°F: 0.285 | 9.4 at 212°F | 28.3 at 68°F | 28 | 9.4 at 32 – 212°F | 0.1200 at 68°F to 212°F | 2500 to 2590 |
| 12.4 at 932 °F | 39.4 at 752°F | 10.2 at 32 – 1000°F | ||||
| 49.6 at 1652 °F | 10.4 at 32 – 1500°F | |||||
| SS 304H | ||||||
| Denstiy lbm/in3 | Coefficient of Thermal Expansion (min/in)-°F | Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | ||
| at 68 °F | at 68 – 212°F | at 68 – 1600°F | at 212°F | at 932°F | at 32 – 212°F | in tension (E) |
| 0.285 | 9.2 | 11.0 | 9.4 | 12.4 | 0.12 | 29 x 106 |
Yes, custom sizes for Stainless Steel 304H Buttweld Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
Boiler systems, nuclear plant applications, chemical processing, oil and gas refineries, and power generation all make extensive use of the stainless steel 304H buttweld fittings from Vipul Pipes and Tubes. These fittings are especially appropriate for heat exchangers, superheater tubes, steam piping, and pressure vessels because of their high carbon content and improved high-temperature strength. Because of its consistent resistance to oxidation, sulfidation, and thermal fatigue, SS 304H is a popular material for systems used in high-pressure and thermal cycling settings. In the most crucial industrial processes, these fittings guarantee long-term strength, durability, and resistance to corrosion.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
