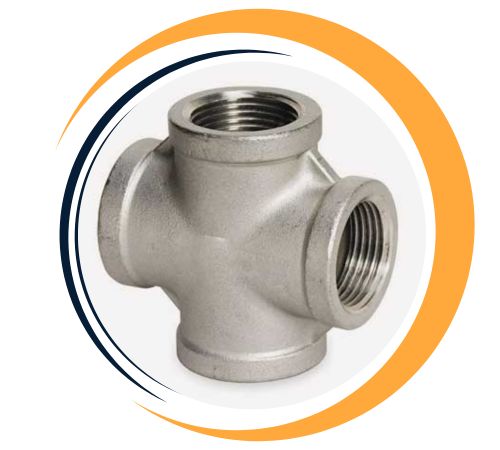

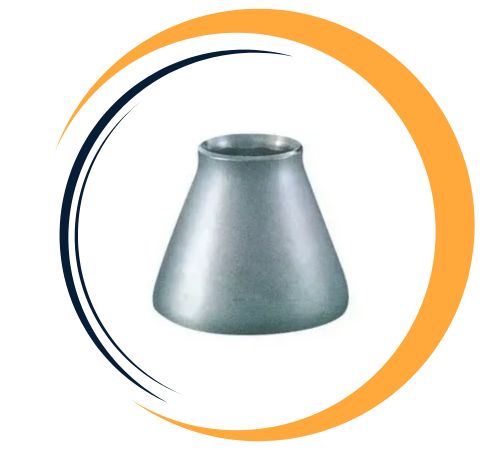

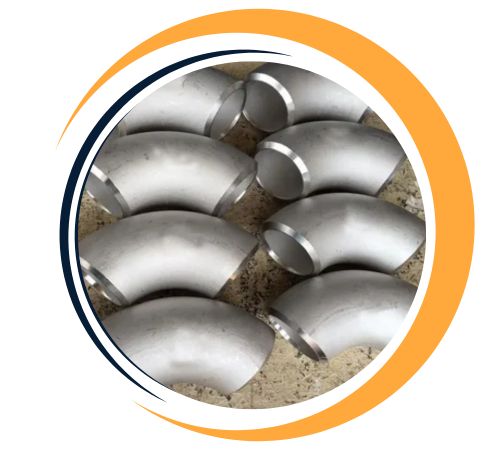

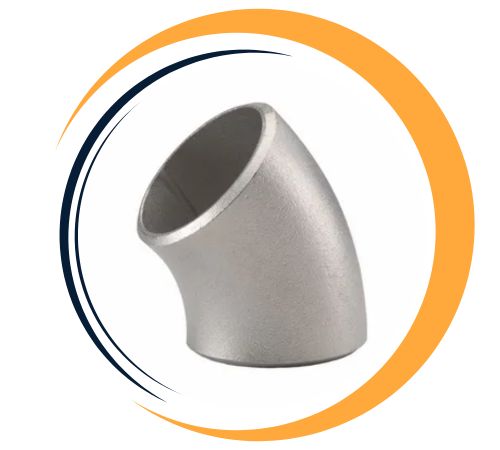

Based in Houston, USA, Vipul Pipes and Tubes is a reputable brand in cutting-edge piping solutions. It produces and distributes high-end nickel alloy pipe fittings designed for harsh conditions with high pressure, temperature, and corrosive media. Several nickel-based alloys, including Alloy 200/201, Monel, Inconel, Hastelloy, and Incoloy, are used to make these fittings. These alloys were chosen for their exceptional resistance to heat stress, oxidation, and acids. Vipul’s product line consists of elbows, tees, reducers, caps and crosses that are made to satisfy international standards such as ASTM B366. In mission-critical applications, these fittings guarantee longevity, exceptional mechanical strength, and leak-free operation.
| Specification : | ASTM B 366 / ASME SB 366 |
| Dimensions : | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Size : | Seamless 1/2″ – 10″ , Welded 1/2″ – 48″ |
| Thickness : | Sch Sch 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160 Sch XXS |
| Types : | Seamless / ERW / Welded / Fabricated |
| Nickel 200: 2.4066, N02200, NW 2200 Nickel 201: 2.4068,N02201, NW 2201 |
Depending on the grade (Monel 400, Inconel 625, Hastelloy C276), nickel alloy pipe fittings from Vipul Pipes and Tubes are made mostly of nickel (≥65%), which is frequently alloyed with copper, chromium, molybdenum, and iron. These alloys have outstanding resistance to oxidizing/reducing agents, thermal cycling, and corrosive environments. Tensile strength (450–880 MPa), yield strength (≥170 MPa), and elongation (≥30%) are examples of mechanical properties. These fittings preserve structural integrity in harsh chemical or marine environments and are perfect for welding, fabrication, and high-stress service.
| Grade | C | Ni | Si | S | Mn | Cu | Fe |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 0.15 max | 99.0 min | 0.35 max | 0.01 max | 0.35 max | 0.25 max | 0.40 max |
| Nickel 201 | 0.02 max | 99.0 min | 0.35 max | 0.01 max | 0.35 max | 0.25 max | 0.40 max |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Nickel 200 / 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Harry Fittings is a leading supplier of Nickel Alloy Pipe Fittings in Houston, USA. We offer an extensive range of Nickel Alloy Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| Ni 200 | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | NA 11 | НП-2 |
| Ni 201 | N02201 | 2.4068 | – | LC-Ni 99 | NW 2201 | NA 12 | НП-2 |
Nickel Alloy Pipe Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Nickel Alloy Pipe Fittings offer excellent corrosion resistance, making them ideal for harsh environments such as chemical processing, marine, and high-temperature applications. They have superior strength and durability, ensuring long-term performance under extreme conditions. These fittings exhibit excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, enhancing their reliability. Their high-temperature stability ensures they maintain mechanical integrity in elevated temperature environments. Additionally, nickel alloys offer great weldability, ease of fabrication, and versatile compatibility with various fluids, making them essential in industries requiring high-performance piping systems.
Yes, custom sizes for Nickel Alloy Pipe Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
Chemical processing facilities, nuclear reactors, offshore oil and gas platforms, aerospace systems and marine engineering all make extensive use of nickel alloy pipe fittings from Vipul Pipes and Tubes. Heat exchangers, condensers, pressure vessels, and pipeline systems that transport aggressive chemicals or seawater are just a few examples of the applications that benefit greatly from their exceptional corrosion resistance. Fittings made of nickel alloy are also crucial for power generation, particularly in areas with high-temperature gases or superheated steam. In demanding industrial operations, their dependability in harsh environments guarantees a long service life and minimal maintenance.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
