Our Equal, Reducing, and Split Tees are made from top-grade stainless steel, carbon steel, and alloy steel, chosen based on the specific requirements for pressure, temperature, and corrosion resistance. These tees boast impressive mechanical properties, including high tensile strength, impact resistance, and long-lasting durability under stress. We produce our fittings in line with international standards like ASME B16.9 and ASTM specifications. Through heat treatment and forging processes, we ensure a superior grain structure and uniform wall thickness, which enhances the overall performance and reliability in demanding pipeline applications.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Seamless Pipe Tee Size: 1/2″~24″
ERW / Welded / Fabricated Pipe Tee Size: 1/2″ (15 NB) to 48″ (1200NB)

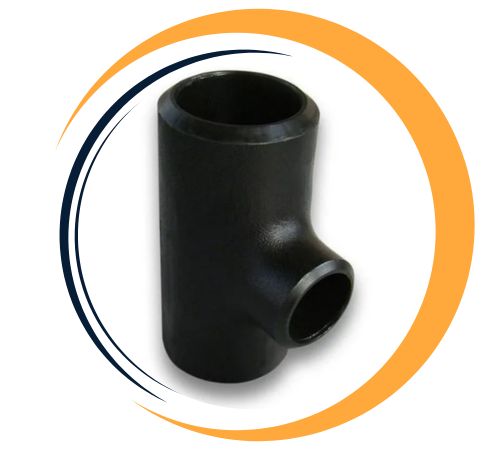

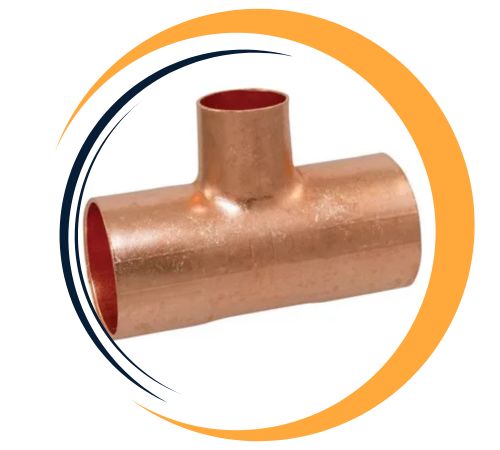

Form: Pipe Tee, Equal Tee, Fitting Tee, Butt weld Tee
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Seamless Reducing Tee Size: 1/2″~24″
ERW / Welded / Fabricated Reducing Tee Size: 1/2″ (15 NB) to 48″ (1200NB)

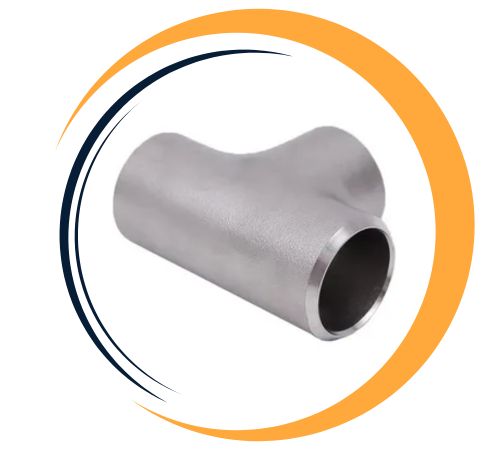

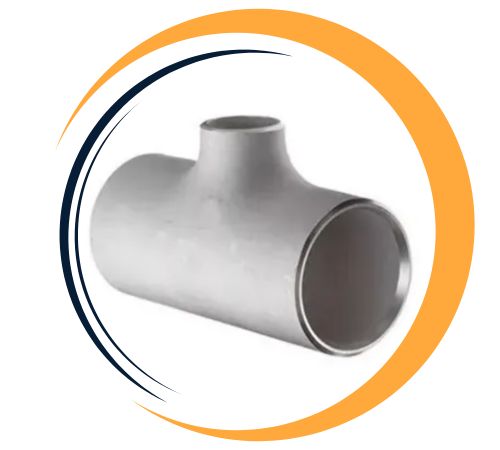

Form: Unqual Tee, Reducing Tee
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Size: 2″~36″ 15-1200
Pressure 150#~2500#
Wall Thickness : Sch 10- Sch160
Material : Stainless Steel, Carbon Steel, Alloy Steel, Monel, Hastelloy, Inconel, Incoloy, Nickel Alloy, Copper Nickel, Super Duplex Steel, Super Duplex Steel, Titanium

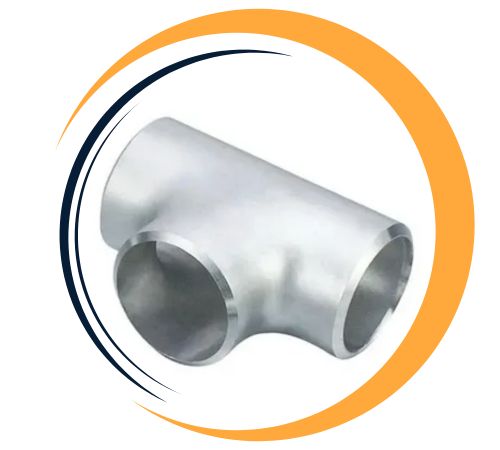

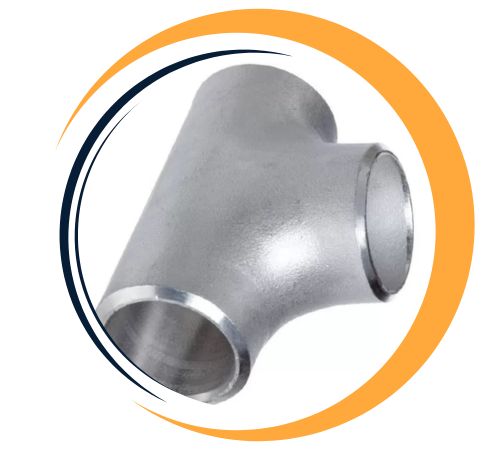

Form: Split Tees
Tee fittings are typically made from materials like stainless steel, carbon steel, and alloy steel, with compositions including iron, chromium, nickel, and molybdenum. They offer high tensile strength, corrosion resistance, and excellent weldability. The mechanical properties of tee fittings ensure they can withstand high pressure, temperature variations, and mechanical stresses. These fittings are designed to provide durable and reliable connections in piping systems, ensuring optimal flow and system integrity.
Our Equal, Reducing, and Split Tees are made from top-grade stainless steel, carbon steel, and alloy steel, chosen based on the specific requirements for pressure, temperature, and corrosion resistance. These tees boast impressive mechanical properties, including high tensile strength, impact resistance, and long-lasting durability under stress. We produce our fittings in line with international standards like ASME B16.9 and ASTM specifications. Through heat treatment and forging processes, we ensure a superior grain structure and uniform wall thickness, which enhances the overall performance and reliability in demanding pipeline applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Equal/ Reducing/ Split Tee from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
A tee is a versatile pipe fitting that connects three pipe sections, creating a branching point for fluid or gas flow. It is designed to ensure smooth flow, minimize resistance, and distribute pressure effectively. Tees are available in various materials and sizes, offering durability, corrosion resistance, and ease of installation. They provide a reliable solution for creating branch connections, enabling the efficient flow of liquids or gases through piping systems.
| Nominal Pipe Size | Outside diameter at bevel | Center-to-End | |
|---|---|---|---|
| Run (C) | Outlet(M) | ||
| 1/2″ | 21.3 | 25 | 25 |
| 3/4″ | 26.7 | 29 | 29 |
| 1″ | 33.4 | 38 | 38 |
| 1 1/4″ | 42.2 | 48 | 48 |
| 1 1/2″ | 48.3 | 57 | 57 |
| 2″ | 60.3 | 64 | 64 |
| 2 1/2″ | 73.0 | 76 | 76 |
| 3″ | 88.9 | 86 | 86 |
| 3 1/2″ | 101.6 | 95 | 95 |
| 4″ | 114.3 | 105 | 105 |
| 5″ | 141.3 | 124 | 124 |
| 6″ | 168.3 | 143 | 143 |
| 8″ | 219.1 | 178 | 178 |
| 10″ | 273.0 | 216 | 216 |
| 12″ | 323.8 | 254 | 254 |
| 14″ | 355.6 | 279 | 279 |
| 16″ | 406.4 | 305 | 305 |
| 18″ | 457.0 | 343 | 343 |
| 20″ | 508.0 | 381 | 381 |
| 22″ | 559.0 | 419 | 419 |
| 24″ | 610.0 | 432 | 432 |
| Nominal Pipe Size | Outside diameter at bevel | Center-to-End | |||
|---|---|---|---|---|---|
| Run | Outlet | Run | Outlet | Run (C) | Outlet (M) |
|
1/2″ |
1/4″
3/8″ |
21.3 |
13.7
17.3 |
25 |
25 |
|
3/4″ |
3/8″
1/2″ |
26.7 |
17.3
21.3 |
29 |
29 |
|
1″ |
1/2″
3/4″ |
33.4 |
21.3
26.7 |
38 |
38 |
|
1 1/4″ |
1/2″
3/4″
1″ |
42.2 |
21.3
26.7
33.4 |
48 |
48 |
|
1 1/2″ |
1/2″
3/4″
1″
1 1/4″ |
48.3 |
21.3
26.7
33.4
42.2 |
57 |
57 |
|
2″ |
3/4″
1″
1 1/4″
1 1/2″ |
60.3 |
26.7
33.4
42.2
48.3 |
64 |
44
51
57
60 |
|
2 1/2″ |
1″
1 1/4″
1 1/2″
2″ |
73.0 |
33.4
42.2
48.3
60.3 |
76 |
57
64
67
70 |
|
3″ |
1 1/4″
1 1/2″
2″
2 1/2″ |
88.9 |
42.2
48.3
60.3
73.0 |
86 |
70
73
76
83 |
|
3 1/2″ |
1 1/2″
2″
2 1/2″
3″ |
101.6 |
48.3
60.3
73.0
88.9 |
95 |
79
83
89
92 |
|
4″ |
1 1/2″
2″
2 1/2″
3″
3 1/2″ |
114.3 |
48.3
60.3
73.0
88.9
101.6 |
105 |
86
89
95
98
102 |
|
5″ |
2″
2 1/2″
3″
3 1/2″
4″ |
141.3 |
60.3
73.0
88.9
101.6
114.3 |
124 |
105
108
111
114
117 |
|
6″ |
2 1/2″
3″
3 1/2″
4″
5 |
168.3 |
73.0
88.9
101.6
114.3
141.3 |
143 |
121
124
127
130
137 |
|
8″ |
3 1/2″
4″
5″
6″ |
219.1 |
101.6
114.3
141.3
168.3 |
178 |
152
156
162
168 |
|
10″ |
4″
5″
6″
8″ |
273.0 |
114.3
141.3
168.3
219.1 |
216 |
184
191
194
203 |
|
12″ |
5″
6″
8″
10″ |
323.8 |
141.3
168.3
219.1
273.0 |
254 |
216
219
229
241 |
|
14″ |
6″
8″
10″
12″ |
355.6 |
168.3
219.1
273.0
323.8 |
279 |
238
248
257
270 |
|
16″ |
6″
8″
10″
12″
14″ |
406.4 |
168.3
219.1
273.0
323.8
355.6 |
305 |
264
273
283
295
305 |
|
18″ |
8″
10″
12″
14″
16″ |
457.0 |
219.1
273.0
323.8
355.6
406.4 |
343 |
298
308
321
330
330 |
|
20″ |
8″
10″
12″
14″
16″
18″ |
508.0 |
219.1
273.0
323.8
355.6
406.4
457.0 |
381 |
324
333
346
356
356
368 |
|
22″ |
10″
12″
14″
16″
18″
20″ |
559.0 |
273.0
323.8
355.6
406.4
457.0
508.0 |
419 |
359
371
381
381
394
406 |
|
24″ |
10″
12″
14″
16″
18″
20″
22″ |
610.0 |
273.0
323.8
355.6
406.4
457.0
508.0
559.0 |
432 |
384
397
406
406
419
432
432 |
Yes, custom sizes for Equal/ Reducing/ Split Tee are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
Equal Tees, Reducing Tees, and Split Tees play a crucial role in pipeline systems, helping to control flow direction, distribution, or modification without interrupting the overall operation. Equal Tees are perfect for distributing flow evenly across branches, while Reducing Tees allow for smooth transitions between pipes of different diameters. Split Tees are often used in hot tapping and bypass connections for live pipelines, ensuring that maintenance or expansion can happen without any downtime. These fittings are vital in oil refineries, chemical plants, power stations, water treatment systems, and beyond. Harry Fittings also provides customized solutions to cater to a wide range of application needs across various industries.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
