Harry Fittings is a reliable Houston, USA-based manufacturer and supplier of high-quality Straight Crosses. Committed to precision and quality, the company provides high-performance pipe fittings that cater to the varying needs of industrial customers. Harry Fittings, with its reputation for reliability and strength, caters to numerous industries, such as oil and gas, petrochemical, and power generation. Each of their products is made with a precise adherence to international specifications, guaranteeing superior strength and performance under challenging conditions. By being strategically positioned in Houston, they can render efficient service to customers within the United States and globally, making them a reliable name in the fittings business.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Size: 1/2″ to 36″
Form: Butt weld Straight Tees, Fitting Butt weld Straight Crosses
Straight Crosses are usually made of stainless steel, carbon steel, or alloy steel, depending on use requirements. These materials promise superior corrosion resistance, strength, and durability. Mechanically, Straight Crosses are of high tensile and yield strength, usually in excess of 205 MPa and 515 MPa respectively, with optimal elongation and hardness values. They are designed to withstand high-pressure and high-temperature conditions. Due to their precision fabrication, tight leaks and leak-free interfaces are guaranteed, and thus they are appropriate for the transportation of critical fluid or gas systems, where stability, strength, and extended service life are necessary performance characteristics.

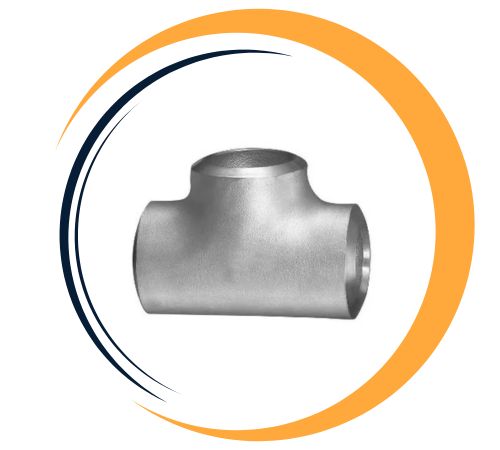

Stainless Steel Butt weld Straight Tees & Crosses: ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

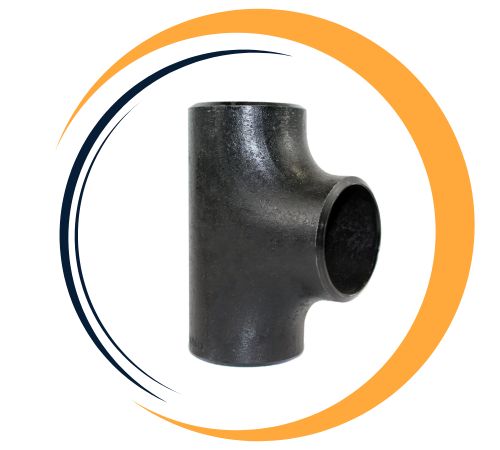

Carbon Steel Butt weld Straight Tees & Crosses : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

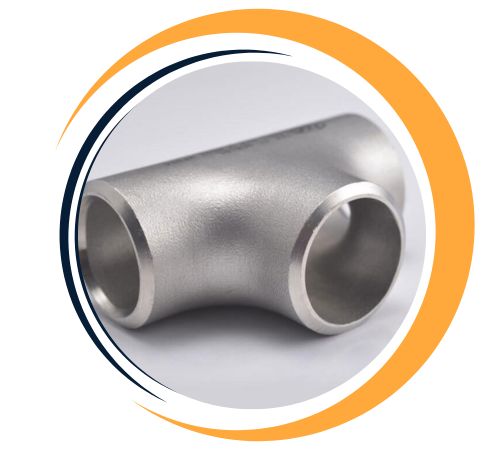

Alloy Steel Butt weld Straight Tees & Crosses : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91

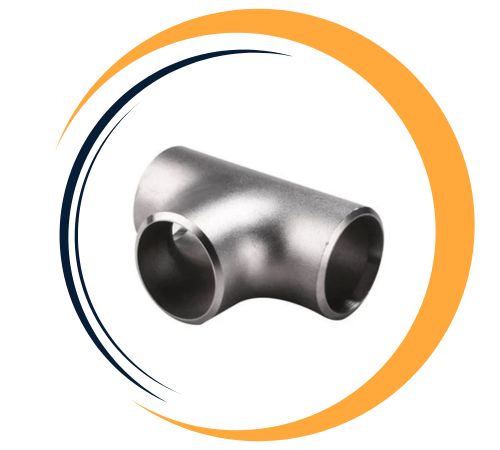

Duplex Steel Butt weld Straight Tees & Crosses : ASTM A815, ASME SA815 UNS No S31803, S32205

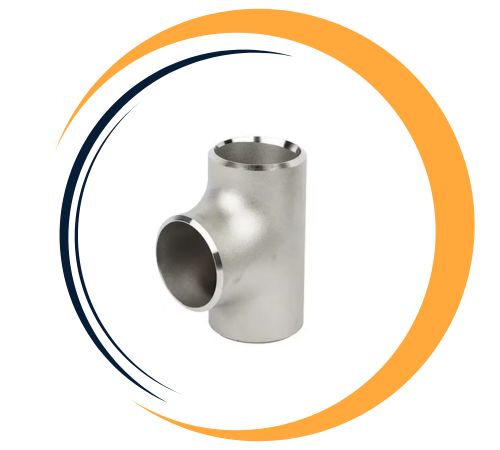

Super Duplex Butt weld Straight Tees & Crosses : ASTM A815, ASME SA815 UNS No S32750, S32950

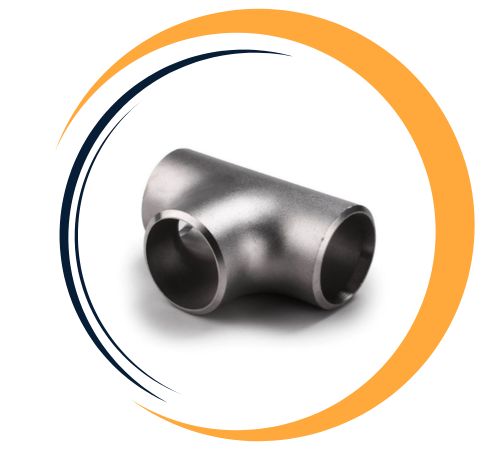

Nickel Alloy Butt weld Straight Tees & Crosses : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel Butt weld Straight Tees & Crosses : ASTM A420 WPL3, A420 WPL6
Harry Fittings is a leading supplier of Straight Crosses in Houston, USA. We offer an extensive range of Straight Crosses, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Straight Crosses from Harry Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Straight Crosses are widely applied in piping systems to evenly distribute fluids or gases in four directions at 90-degree angles. Their strong design makes them suitable for high-pressure uses in oil refineries, chemical processing plants, water treatment plants, and HVAC systems. Straight Crosses ensure proper flow control and system integrity in sophisticated pipeline networks. Owing to their strength and versatility, Straight Crosses are also utilized in marine engineering, power plants, and fire protection systems. Their resistance to corrosive materials and extreme conditions provides rugged performance and safety in different industrial settings.
Yes, custom sizes for Straight Crosses are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
| NPS | O.D. D | Center-to-End C | Center-to-End M |
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 29 | 29 |
| 1 | 33.4 | 38 | 38 |
| 1¼ | 42.2 | 48 | 48 |
| 1½ | 48.3 | 57 | 57 |
| 2 | 60.3 | 64 | 64 |
| 2½ | 73 | 76 | 76 |
| 3 | 88.9 | 86 | 86 |
| 3½ | 101.6 | 95 | 95 |
| 4 | 114.3 | 105 | 105 |
| 5 | 141.3 | 124 | 124 |
| 6 | 168.3 | 143 | 143 |
| 8 | 219.1 | 178 | 178 |
| 10 | 273 | 216 | 216 |
| 12 | 323.8 | 254 | 254 |
| 14 | 355.6 | 279 | 279 |
| 16 | 406.4 | 305 | 305 |
| 18 | 457 | 343 | 343 |
| 20 | 508 | 381 | 381 |
| 22 | 559 | 419 | 419 |
| 24 | 610 | 432 | 432 |
| 26 | 660 | 495 | 495 |
| 28 | 711 | 521 | 521 |
| 30 | 762 | 559 | 559 |
| 32 | 813 | 597 | 597 |
| 34 | 864 | 635 | 635 |
| 36 | 914 | 673 | 673 |
| 38 | 965 | 711 | 711 |
| 40 | 1016 | 749 | 749 |
| 42 | 1067 | 762 | 711 |
| 44 | 1118 | 813 | 762 |
| 46 | 1168 | 851 | 800 |
| 48 | 1219 | 889 | 838 |
Straight Crosses are widely used in various industries for branching and connecting four pipelines in a straight line. They are essential in fluid and gas transmission systems, particularly in oil and gas, chemical processing, water treatment, and HVAC systems. These fittings are ideal for creating complex network structures in power plants, refineries, and heating systems. Straight Crosses are also used in industrial piping systems where the flow of liquids or gases needs to be distributed across multiple directions, providing a reliable and efficient solution for managing pipelines in high-pressure and high-temperature environments.
