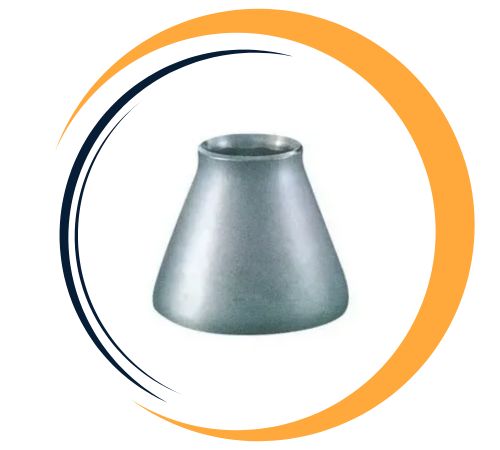

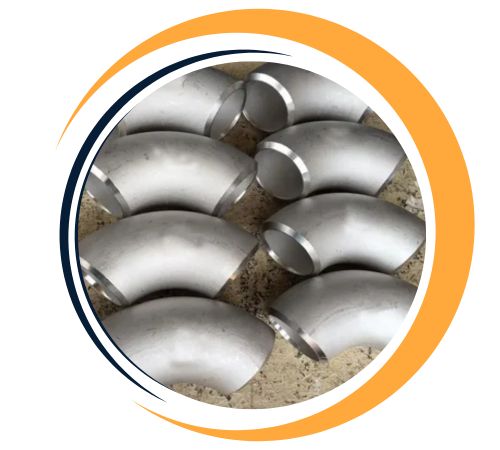

Harry Fittings, located in Houston, USA, is a reliable manufacturer and supplier of high-performance Monel K500 pipe fittings, designed for tough applications that involve high levels of corrosion, pressure, and temperature. Monel K500 is a nickel-copper alloy enriched with aluminum and titanium, which gives it remarkable strength, hardness, and resistance to corrosion—particularly in marine and chemical settings. Harry Fittings offers a full range of Monel K500 pipe fittings, including elbows, tees, reducers, and caps, all meeting ASTM and ASME standards. These fittings are perfect for industries like marine engineering, chemical processing, oil & gas, and aerospace, where durability and long-lasting reliability are crucial.
Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-79
Size Seamless 1/2″ – 10″ , Welded 1/2″ – 48″
Type (Seamless & 100% X-Ray Welded, Fabricated)
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Grade Monel K500 Pipe Fittings UNS (N05500), DIN (2.4375)
Monel K500 pipe fittings from Harry Fittings consist of about 63% nickel, 27–33% copper, along with 0.3–0.8% aluminum and 0.35–0.85% titanium, ensuring outstanding mechanical strength and resistance to corrosion. The alloy undergoes age-hardening to achieve impressive tensile strength (≥965 MPa) and yield strength (≥690 MPa) while maintaining toughness across a broad temperature range. These fittings are resistant to seawater corrosion, sour gas, and non-oxidizing acids, making them perfect for extreme environments. Manufactured to ASTM B366 UNS N05500, each fitting is thoroughly tested for dimensional accuracy, hardness, and corrosion performance.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 115000 , MPa – 790 | Psi – 160000 , MPa – 1100 | 20 % |
Harry Fittings is a leading supplier of Monel K500 pipe fittings in Houston, USA. We offer an extensive range of Monel K500 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Monel K500 pipe fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

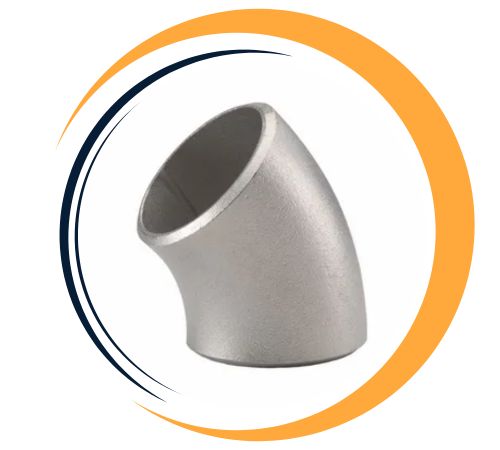

| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Monel K500 Pipe Fittings offer exceptional advantages, including superior corrosion resistance, making them ideal for marine and chemical industries. They combine high strength and toughness with excellent resistance to stress corrosion cracking and erosion in harsh environments. Their non-magnetic properties and outstanding thermal conductivity make them versatile for diverse applications. Monel K500 fittings maintain mechanical properties even at sub-zero and elevated temperatures, ensuring durability and reliability. Additionally, their ease of machining and fabrication allows for custom designs, meeting various industrial needs with long-term performance and low maintenance requirements.
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
Yes, custom sizes for Monel K500 pipe fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
Harry Fittings’ Monel K500 pipe fittings find extensive use in marine equipment, oil and gas platforms, chemical processing facilities, pump and valve systems, and aerospace components. These fittings are particularly well-suited for seawater piping, heat exchangers, and sour gas environments, where standard alloys often fail due to corrosion or pressure fatigue. Their high strength and non-magnetic properties also make them advantageous in electrical and defense applications. Monel K500 fittings are frequently utilized in subsea systems, shipbuilding, and high-pressure processes.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
