Harry Fittings, located in Houston, USA, stands out as a leading manufacturer and supplier of Alloy Steel Pipe Fittings, designed to excel in high-temperature, high-pressure, and corrosive settings. Crafted from top-notch alloy steel grades like ASTM A234 WP1, WP5, WP11, WP22, and WP91, these fittings boast remarkable mechanical strength, durability, and resistance to wear and thermal stress. Harry Fittings offers a diverse selection of elbows, tees, reducers, caps, and custom fittings that comply with international standards such as ASME, ASTM, and ANSI. These fittings find extensive use in power generation, petrochemicals, oil & gas, and refinery applications for critical piping systems.
| Specifications Standard | Astm A234/ ASME SA 234 |
|---|---|
| Alloy Steel Pipe Fittings Size Range | Welded Fittings: 1/2″ – 48″ Seamless Fittings: 1/2″ – 10″ |
| Connection | Welding |
| Type | DN15 to DN1200 |
| Radius of bending | R=3D, 1D, 8D, 10D, 5D, 2D, Custom MSS Sp-43, 6D |
| Alloy Steel Pipe Fittings Manufacturing process | Forge, Press, Cast, Push etc. |
| Thickness | SCH10, SCH40, XS, SCH30, SCH 160, SCH 80, SCH 140, SCH60, SCH20, STD , SCH 120, SCH 100, XXS |
| Pressure Ratings | 2000#, 150#, 6000#, 3000#, 9000# |
| End Connections: | socket weld and Threaded |

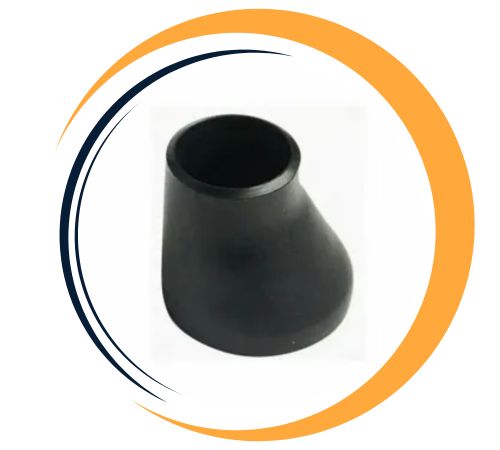

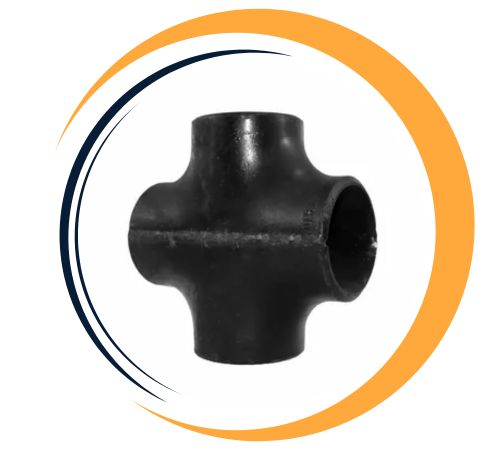

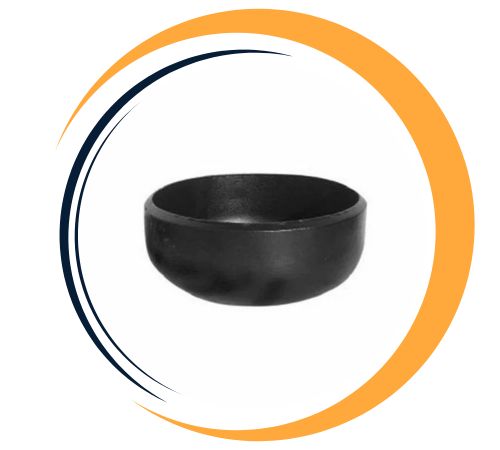

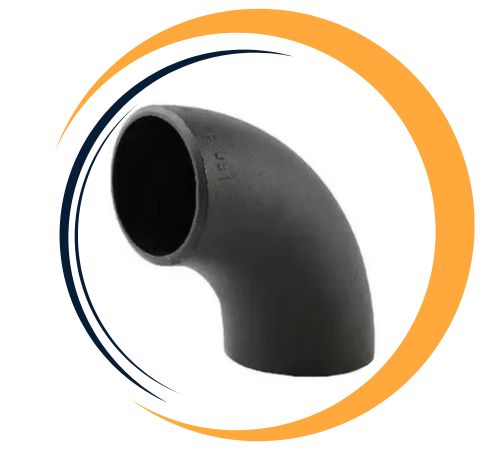

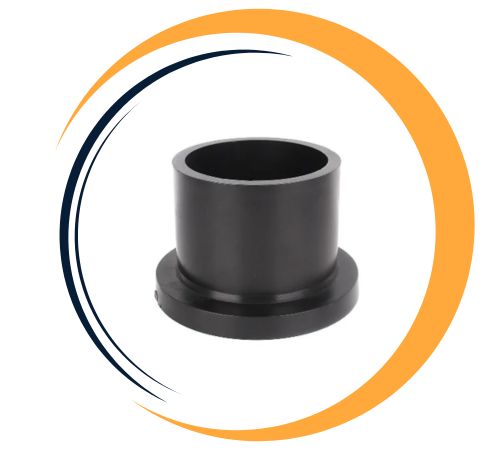

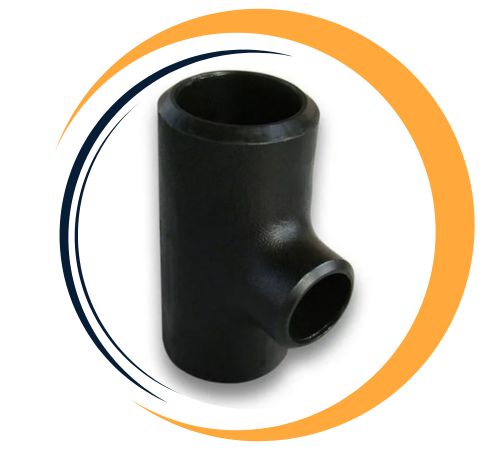

| Alloy Steel Pipe Fittings manufacturer | 90º Tee, Elbows, Pipe Cap, Stub End, 45º Elbows, Crosses, Pipe Bend, Reducers |
| Dimensions | ASME B16.28, BS4504, MSS-SP-43, ASME/ANSI B16.9, BS1560, BS4504, BS10 |
| Elbows | Angle : 2.0D, 1.5D, 5D, 3D, 1.0D, 6D, 4D, 2.5D, 7D-40D . Standard: JISB2312, MSS SP-75, 22.5 deg, JISB2313, 30deg, ASME B16.9, 180 deg, 45 deg, JISB2311 BS, DIN2605, 90 deg, GB ISO |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report, etc |
Alloy Steel Pipe Fittings from Harry Fittings are produced using alloy grades infused with elements like chromium, molybdenum, nickel, and manganese, which boost creep strength, hardness, and oxidation resistance. Typical compositions include Cr-Mo and Cr-Mo-V combinations, depending on the specific grade. These fittings deliver tensile strength up to 585 MPa and yield strength around 275 MPa, along with good elongation and thermal stability. Adhering to standards like ASTM A234 and ASME B16.9, each fitting undergoes rigorous testing for mechanical integrity, heat resistance, and dimensional accuracy, ensuring they can withstand harsh operating conditions.
|
Grade |
Mn |
C |
P |
Si |
Cr |
S |
Mo |
|---|---|---|---|---|---|---|---|
|
F5 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F1 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F11 |
0.03 to 0.06 |
0.05 to 0.015 |
0.003 |
0.05 to 1.00 |
1.00 to 1.05 |
0.003 |
0.044 to 0.065 |
|
F9 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
8 to 10 |
0.003 |
0.09 to 1.01 |
|
F22 |
0.03 to 0.06 |
0.050.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F12 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F91 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
8 to 10 |
0.003 |
0.09 to 1.01 |
|
Grade |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
|---|---|---|---|
|
F5 |
485 |
275 |
20 % |
|
F1 |
485 |
275 |
20 % |
|
F11 |
415 |
205 |
20 % |
|
F9 |
585 |
380 |
20 % |
|
F22 |
415 |
205 |
20 % |
|
F12 |
485 |
275 |
20 % |
|
F91 |
585 |
380 |
20 % |
Harry Fittings is a leading supplier of Alloy Steel Pipe Fittings in Houston, USA. We offer an extensive range of Alloy Steel Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel Pipe Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Yes, custom sizes for Alloy Steel Pipe Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
Harry Fittings’ Alloy Steel Pipe Fittings are extensively utilized in power plants, oil & gas refineries, petrochemical facilities, high-temperature steam lines, thermal processing units, and pressure vessels. These fittings are perfect for environments that experience extreme heat, pressure, and corrosive chemicals, where standard carbon steel would falter. Their applications include boilers, superheaters, heat exchangers, reactors, and hydrocrackers in high-stress systems. Thanks to their exceptional mechanical strength and metallurgical stability, they are the go-to choice for long-lasting, high-performance piping solutions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
