Based in Houston, USA, Harry Fittings is a top producer and supplier of carbon steel A105 forged fittings. Delivering high-performance forged fittings for a variety of industrial applications, the company is well-known for its dedication to quality, precision engineering, and customer satisfaction. These fittings are perfect for high-pressure piping systems and are made in accordance with international standards. Harry Fittings is a preferred option for customers in the petrochemical, power generation, and oil and gas sectors because of its emphasis on performance and durability as well as its stringent quality control procedures.
| Forged Fittings Specifications | ASTM A105/ ASME SA105 |
|---|---|
| Carbon Steel A105 Forged Fittings size | 1/8” NB to 4” NB (Socket weld & Screwed-Threaded) |
| Carbon Steel A105 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Carbon Steel A105 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM A105 Carbon Steel A105 Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Carbon Steel A105 Forged Fittings Thread | NPT, BSPT, BSPP |
| Carbon Steel A105 Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Carbon A105 Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V |
| A105 | 0.35 | 0.10–0.35 | 0.60–1.05 | 0.035 | 0.040 | 0.12 | 0.40 | 0.30 | 0.40 | 0.08 |
| Grade | Yield Strength, Min (MPa) | Tensile Strength, Min (MPa) | Elongation, min, % |
| A105 | 250 | 485 | 30 |
Carbon (0.35% max), manganese (0.60–1.05%), phosphorus (0.035% max), sulphur (0.040% max), and silicon (0.10–0.35%) make up the majority of Carbon Steel A105 Forged Fittings. These fittings have outstanding toughness and mechanical strength. Tensile strength of 485 MPa (min), yield strength of 250 MPa (min), and elongation of 22% (min) are typical mechanical characteristics. They are appropriate for pressure systems because they have been heat-treated to increase their hardness and resistance to stress corrosion. The structure of the material allows for high machinability and weldability while preserving stability in harsh environments.
| ASTM A105 / A105M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Carbon Steel A105 Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Carbon Steel A105 fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| Products | Size | |
|---|---|---|

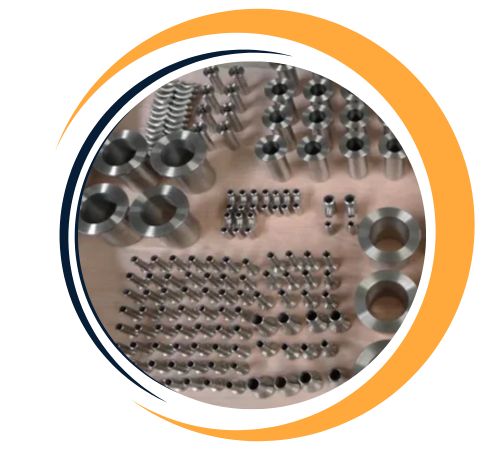

| ASTM A105 Carbon Steel 90° Elbow | ASTM A105 Carbon Steel 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

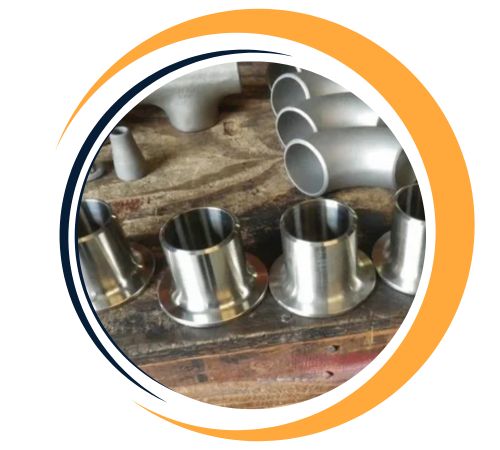

| ASTM A105 Carbon Steel Forged Tee | ASTM A105 Carbon Steel Union | |

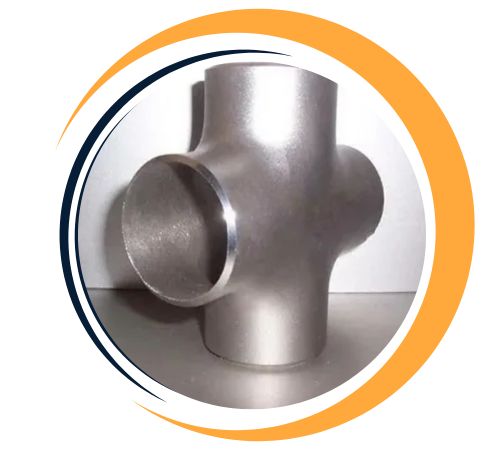

| ASTM A105 Carbon Steel Forged Cross | ASTM A105 Carbon Steel Insert | |
| ASTM A105 Carbon Steel Screwed Bushing | ASTM A105 Carbon Steel Threaded Pipe Nipple | |

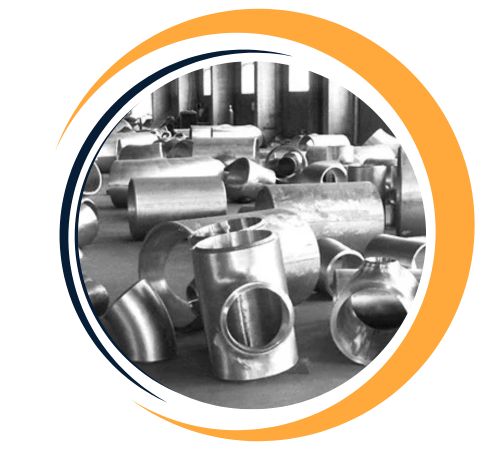

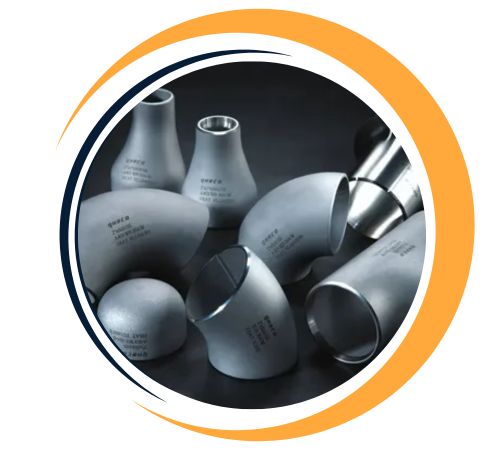

| ASTM A105 Carbon Steel Forged Socket weld Cap | ASTM A105 Carbon Steel Screwed Coupling | |

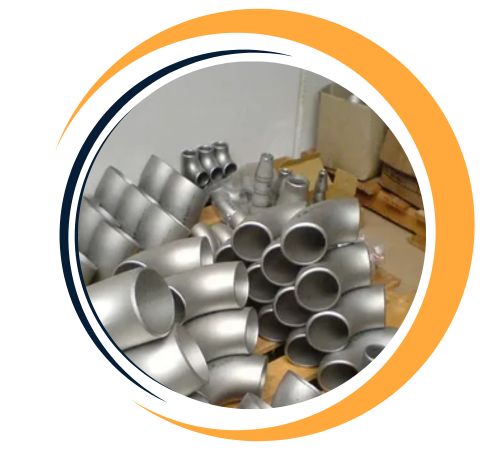

| ASTM A105 Carbon Steel Forged Plug | ASTM A105 Carbon Steel Street Elbow | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Carbon Steel A105 Forged Fittings offer several advantages, making them ideal for industrial applications. They provide excellent strength and durability, ensuring long service life under high-pressure and high-temperature conditions. Their corrosion resistance makes them suitable for harsh environments, including oil, gas, and chemical industries. With exceptional machinability and weldability, they are easy to install and maintain. These fittings deliver cost-effective performance due to their affordability and extended reliability. Additionally, they comply with international standards, ensuring safety, quality, and compatibility with various piping systems.
Carbon Steel A105 Forged Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Yes, custom sizes for Carbon Steel A105 Forged Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
Industries that require strength, durability, and resistance to high temperatures and pressures frequently use carbon steel A105 forged fittings. Pipelines in power plants, petrochemical facilities, oil and gas refineries, and marine environments are examples of common applications. In critical operations, these fittings are crucial for pipe connections, flow regulation, and guaranteeing leak-proof joint systems. They are perfect for above-ground and underground installations due to their strong mechanical characteristics and resistance to corrosion. They are also employed in the HVAC, chemical processing, and fire safety systems sectors, guaranteeing effective and safe fluid handling in a variety of industrial operations.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
