Harry Fittings is a reliable manufacturer and supplier of Stainless Steel 316 Pipe Fittings, located in Houston, USA. Famed for excellent quality and engineering accuracy, our 316 fittings are engineered to excel in corrosive and high-pressure environments, such as marine and chemical industries. With high contents of molybdenum and nickel, these fittings provide superior resistance to corrosion, strength, and durability. Harry Fittings provides an extensive range of pipe fittings like elbows, tees, reducers, and so on, offering high-performance solutions designed for rigorous applications in industries such as petrochemical, power generation, pharmaceutical, and marine engineering.
| Specifications | ASTM A403 / ASME SA403 |
|---|---|
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
Stainless Steel 316 Pipe Fittings consist of 16–18% Chromium, 10–14% Nickel, 2–3% Molybdenum, up to 2% Manganese, 1% Silicon, 0.08% Carbon, 0.045% Phosphorus, and 0.03% Sulfur, with trace elements. The content of molybdenum greatly enhances resistance to pitting corrosion, acids, and chlorides. The fittings provide tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of 40%, with a Brinell hardness of 217 HB. These values ensure good mechanical stability as well as wear resistance, and therefore SS 316 fittings are apt for long-term usage under corrosive conditions.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 316 | min. | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – | |
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
Harry Fittings one of the largest suppliers of Stainless Steel 316 Pipe Fittings in Houston, USA. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 316 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 316 Pipe Fittings in the USA.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 316 Pipe Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316 Fittings | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Stainless Steel 316 Pipe Fittings provide outstanding corrosion resistance, particularly in marine and chloride-rich environments, due to the presence of molybdenum. They are highly durable, offering excellent strength and resistance to pitting, crevice corrosion, and oxidation in aggressive conditions. These fittings maintain mechanical integrity at high and low temperatures, making them suitable for a wide range of applications. With superior weldability and machinability, SS 316 fittings are easy to fabricate and install. Their long-lasting performance makes them ideal for industries like petrochemical, marine, chemical processing, and power generation.

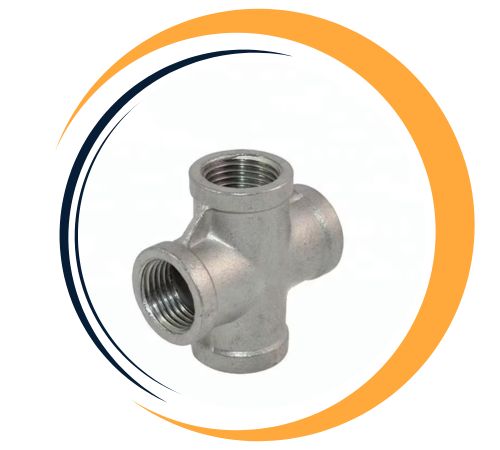

| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | (inches) | Length (inches) | Center to End (inches) | Center to End (inches) | Lap Diameter (inches) | Long Length (inches) | Short Length (inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes are available for Stainless Steel 316 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@harryfittings.us.
| Product | Size* | Wall Thickness** | Seamless | Welded | |||||||||||||||||||||

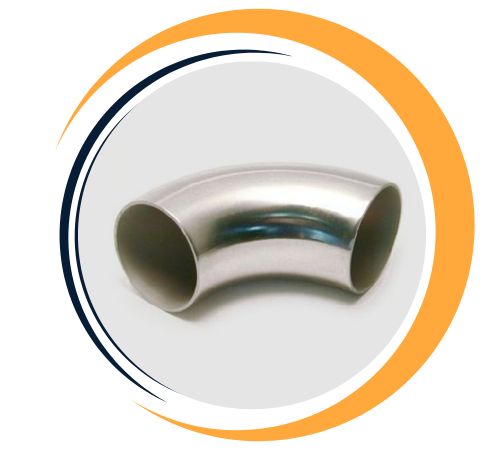

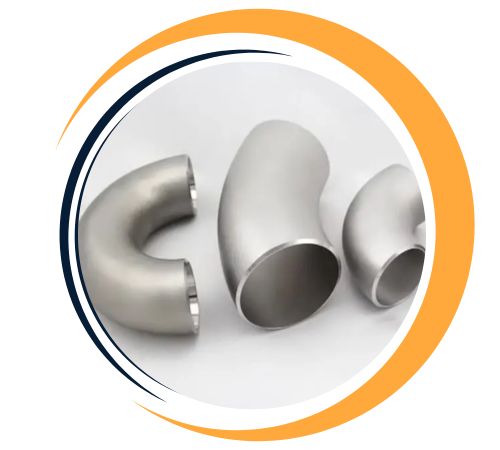

| Elbow | 1/2″-24″ | SCH10S~XXS | √ | √ | |||||||||||||||||||||
| 8″-104″ | SCH5S~80S/XS | √ | |||||||||||||||||||||||

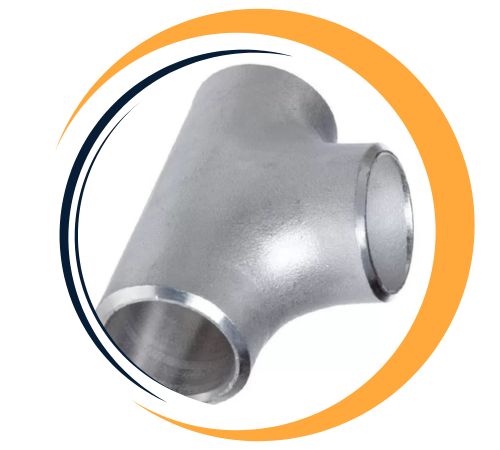

| Tee | 1/2″-24″ | SCH10S~XXS | √ | √ | |||||||||||||||||||||
| 8″-104″ | SCH5S~80S/XS | √ | |||||||||||||||||||||||
| Reducer | 1/2″-24″ | SCH10S~XXS | √ | √ | |||||||||||||||||||||
| 8″-104″ | SCH5S~80S/XS | √ | |||||||||||||||||||||||
| Cap | 1/2″-80″ | SCH10S~SCH160 | √ | ||||||||||||||||||||||

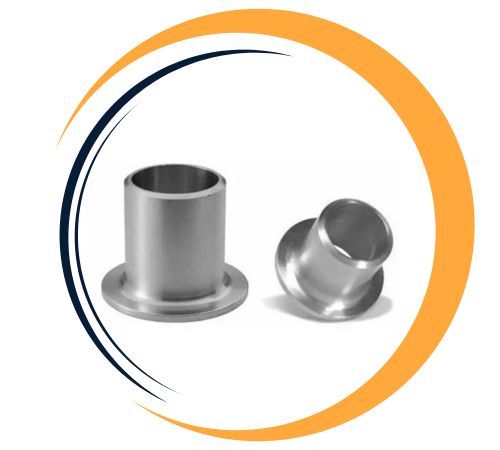

| Lap Joint Stub End | 1/2″-24″ | SCH5S~80S/XS | √ | √ | |||||||||||||||||||||
| 8″-80″ | SCH5S~80S/XS | √ | |||||||||||||||||||||||
Stainless Steel 316 Pipe Fittings find extensive use in those applications where there is a need for superior corrosion resistance, especially in chloride-enriched and acidic conditions. They are best suited for marine engineering, desalination plants, and chemical processing units, where pitting and crevice corrosion resistance along with durability are paramount. They find applications in pharmaceutical processing, food and beverage systems, and petrochemical pipelines because of their hygienic nature and mechanical strength. Other uses involve power generation, heat exchangers, and industrial water treatment plants. The reliability of SS 316 at high pressure and temperature guarantees extended service life in both commercial and industrial piping systems.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
