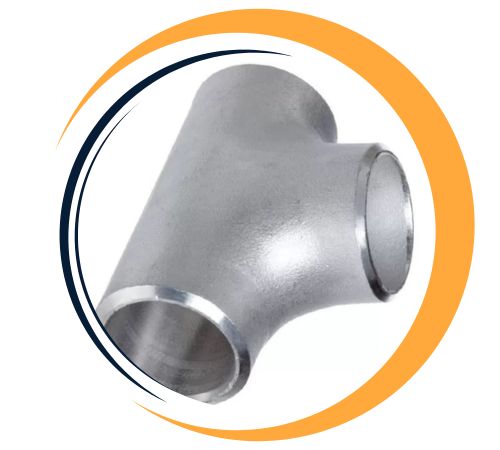

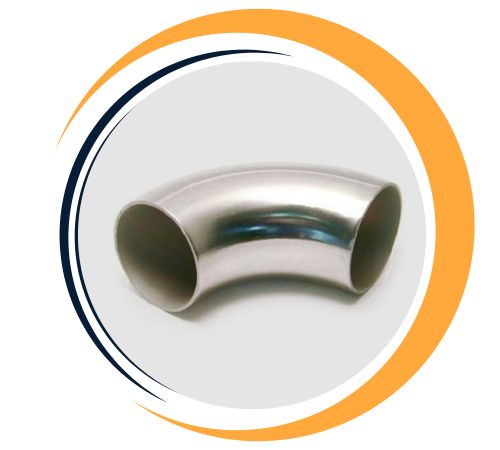

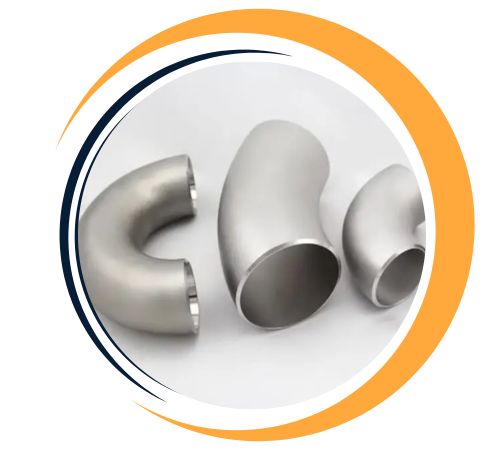

Harry Fittings is a reputable manufacturer and exporter of high-quality Stainless Steel 17-4 PH Pipe Fittings, with headquarters in Houston, USA. Renowned for their superior strength, corrosion resistance, and dimensional stability, these fittings are designed to satisfy the rigorous needs of industries like aerospace, marine, petrochemical, and chemical processing. With special focus on precision engineering, quality assurance, and customer satisfaction, we supply products that meet international industry requirements. With a broad inventory of fittings that include elbows, tees, reducers, and caps, Harry Fittings provides high-performance and durable solutions to your project‘s specifications.
| Specification | ASTM A403 / ASME SA403 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type | Seamless / Welded / Fabricated |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule | Schedule 5 TO Schedule XXS. |
| Type Of Dimension | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
Stainless Steel 17-4 PH Pipe Fittings are manufactured using a precipitation-hardened alloy comprised mainly of iron, 15–17.5% Chromium, 3–5% Nickel, 3–5% Copper, and minute quantities of Manganese, Silicon, and Carbon. Such fittings show great mechanical strength with tensile strength of up to 930 MPa and yield strength of 725 MPa in the H1025 condition. They further provide corrosion resistance of up to 38 HRC, along with strong hardness. 17-4 PH is highly suitable for applications involving high stress, corrosives, and precision-criticality due to the synergy of high strength, toughness, and weldability.
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-4 PH | 0.07 max | 0.15-0.45 | 15.00-17.50 | 3.00-5.00 | Bal | 1.0 max | 3.0-5.0 | 0.40 max | 0.03 max | 1.0 max |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-4 PH | 170000 psi | 140000 psi | 6% | 38 |
Stainless Steel 17-4 PH Pipe Fittings are manufactured using a precipitation-hardened alloy comprised mainly of iron, 15–17.5% Chromium, 3–5% Nickel, 3–5% Copper, and minute quantities of Manganese, Silicon, and Carbon. Such fittings show great mechanical strength with tensile strength of up to 930 MPa and yield strength of 725 MPa in the H1025 condition. They further provide corrosion resistance of up to 38 HRC, along with strong hardness. 17-4 PH is highly suitable for applications involving high stress, corrosives, and precision-criticality due to the synergy of high strength, toughness, and weldability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 17-4 PH Pipe Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless Steel 17-4 PH Pipe Fittings offer numerous advantages, including excellent corrosion resistance, even in harsh environments such as marine and chemical industries. Their high strength-to-weight ratio and superior mechanical properties ensure durability and reliability under high-pressure and high-temperature conditions. These fittings are easy to machine and weld, providing versatility in various applications. The alloy’s precipitation-hardening capability allows for adjustable strength levels through heat treatment, enhancing its adaptability. Additionally, they exhibit minimal distortion during heat processing, making them an ideal choice for precision-demanding applications like aerospace and petrochemical industries.
Yes, custom sizes are available for Stainless Steel 17-4 PH Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@harryfittings.us.
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
Stainless Steel 17-4 PH Pipe Fittings find widespread usage in industries that need a synergy of high strength, corrosion resistance, and precision. In the aerospace industry, they play a key role in components like aircraft structures, landing gear, and engine assemblies. They are used by the petrochemical and chemical industries to transport corrosive fluids under severe conditions. In marine environments, such as offshore platforms and shipyards, they resist seawater and salt-bearing atmospheres. They are also used in power plants, food handling equipment, and medical equipment production, which places them among the most universal and dependable high-performance stainless steel fittings on the market.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
