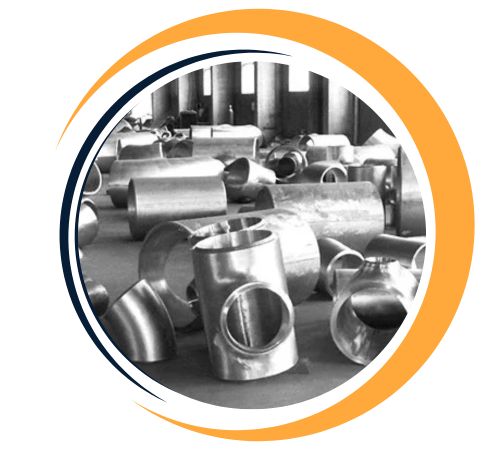

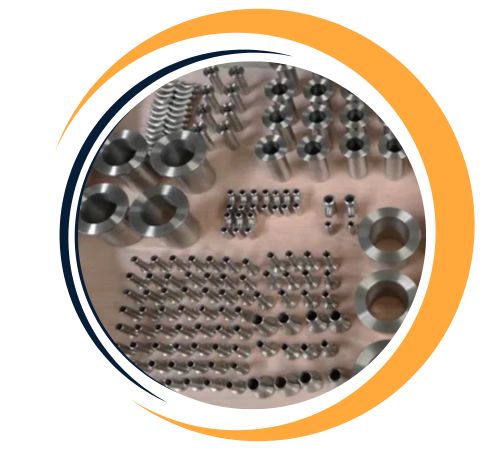

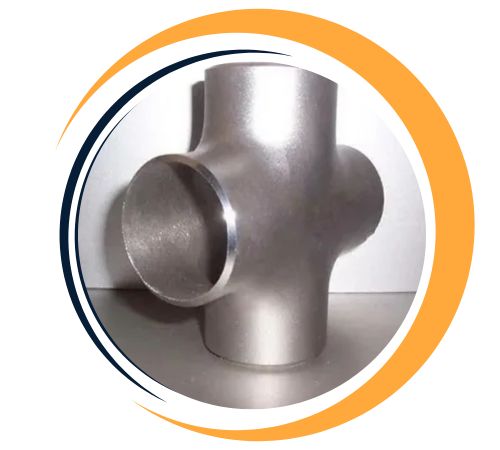

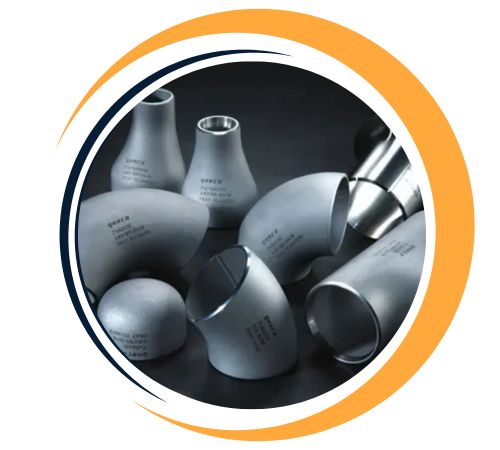

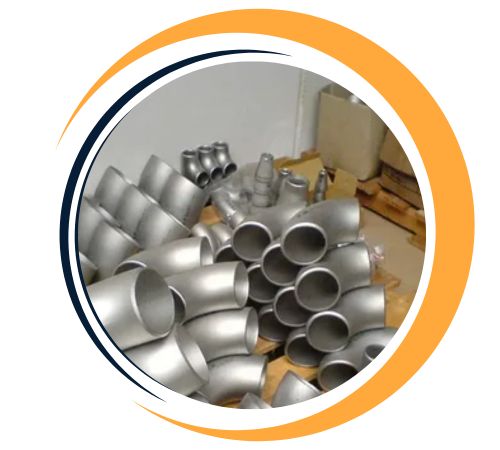

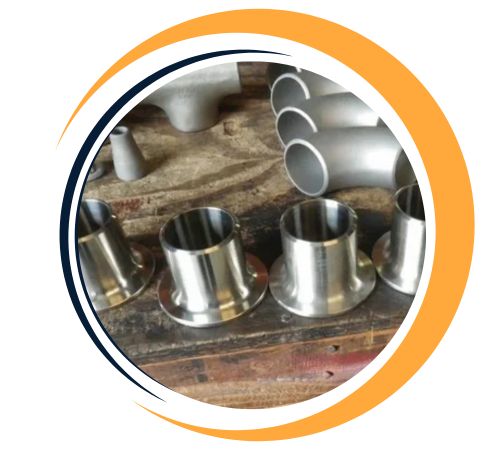

High-quality Inconel pipe fittings made to withstand harsh temperatures and corrosive conditions are available from Harry Fittings, a leading manufacturer and supplier with headquarters in Houston, USA. These ASTM B366-certified fittings, which include elbows, tees, reducers, caps, and crosses, are made from premium Inconel alloys like Inconel 600, 601, 625, and 718. Because of their unparalleled strength, weldability, and dependability under high-stress operating conditions, Inconel fittings—which are widely used in aerospace, chemical processing, power generation, and marine applications—are well-known for their resistance to oxidation, chloride stress corrosion, and thermal fatigue.
| Specification | ASTM B366, ASTM SB 366, ASTM B564, ASME SB564 |
| Grade | Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800) |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 24″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Nickel (≥58%) makes up the majority of Inconel Pipe Fittings from Harry Fittings, with different grades also containing different amounts of Chromium, Iron, Molybdenum, and Niobium. These alloys have exceptional resistance to high-temperature corrosion, acid attack, and oxidation. Tensile strength up to 1035 MPa, yield strength ≥415 MPa, and superior creep and rupture resistance are examples of mechanical properties. Inconel fittings are appropriate for welded and pressurised systems in harsh environments because they retain their structural integrity at both cryogenic and high temperatures.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Harry Fittings is a leading supplier of Inconel Pipe Fittings in Houston, USA. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WNR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – |
Inconel Pipe Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | 180 DEG RETURN BENDS | REDUCERS | ELBOWS AND TEES | 180 DEG RETURN BENDS | CAPS |
|---|---|---|---|---|---|---|---|
| NPS | ID at End (1), (3), (4) | OD at Bevel (1), (2) | Centre-to- Centre O | Overall Length H | Centre -to- End Dimension A, B, C, M | Alignment of Ends U | Overall Length E |
| ½ to 2½ | 0.003 | 0.006 -0.003 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 3 to 3 ½ | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 4 | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 5 to 8 | 0.006 | 0.009 -0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.025 |
| 10 to 18 | 0.012 | 0.016 -0.012 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 20 to 24 | 0.019 | 0.025 -0.019 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 26 to 30 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.012 | … | 0.038 |
| 32 to 48 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.019 | … |
Inconel pipe fittings offer numerous advantages, making them ideal for demanding environments. Their exceptional resistance to oxidation, corrosion, and high temperatures ensures durability in extreme conditions. These fittings maintain mechanical strength and stability across a wide temperature range, reducing the risk of deformation or failure. Inconel’s ability to withstand high-pressure environments makes it suitable for critical applications in aerospace, chemical processing, and power plants. Additionally, the alloy resists cracking under thermal and mechanical stress, enhancing reliability and longevity. Low maintenance requirements further contribute to their cost-effectiveness over time.
Nominal Pipe Size | 45° Elbow | 90° Elbow | OD | 180° Returns | ||||
(inch.) | LR | SR | LR | LR | ||||
Radius (inch.) | Center to Face (inch.) | Center to Face (inch.0) | Center to Face (inch.0) | (inch) | (millimeter) | Back to face (inch.) | Center to Center (inch.) | |
1/2 | 5/8 | – | 1 1/2 | 0.0840 | 21.03 | 1 7/8 | 2 | |
3/4 | 7/16 | – | 1 1/8 | 1.0050 | 26.07 | 1 11/16 | 2 1/4 | |
1 | 7/8 | 1 | 1 1/2 | 1.0315 | 33.04 | 2 3/16 | 3 | |
1 1/4 | 1 | 1 1/4 | 1 7/8 | 1.0660 | 42.02 | 2 3/4 | 3 3/4 | |
1 1/2 | 3 | 1 1/8 | 1 1/2 | 2 1/4 | 1.0900 | 48.03 | 3 1/4 | 4 1/2 |
2 | 4 | 1 3/8 | 2 | 3 | 2.0375 | 60.03 | 4 3/16 | 6 |
2 1/2 | 5 | 1 3/4 | 2 1/2 | 3 3/4 | 2.0875 | 73.00 | 5 3/16 | 7 1/2 |
3 | 6 | 2 | 3 | 4 1/2 | 3.0500 | 88.09 | 6 1/4 | 9 |
3 1/2 | 7 | 2 1/4 | 3 1/2 | 5 1/4 | 4.0000 | 101.06 | 7 1/4 | 10 1/2 |
4 | 8 | 2 1/2 | 4 | 6 | 4.0500 | 114.03 | 8 1/4 | 12 |
5 | 10 | 3 1/8 | 5 | 7 1/2 | 5.0563 | 141.03 | 10 5/16 | 15 |
6 | 12 | 3 3/4 | 6 | 9 | 6.0625 | 168.03 | 12 5/16 | 18 |
8 | 12 | 5 | 8 | 12 | 8.0625 | 219.01 | 16 5/16 | 24 |
10 | 15 | 6 1/4 | 10 | 15 | 10.0750 | 273.01 | 20 3/8 | 30 |
12 | 18 | 7 1/2 | 12 | 18 | 12.0750 | 323.09 | 24 3/8 | 36 |
Yes, custom sizes for Inconel Pipe Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
Vipul Tubes and Pipes Critical industries like petrochemical refineries, chemical plants, nuclear reactors, aerospace, and marine engineering all use Inconel pipe fittings. These fittings are perfect for applications requiring high-temperature strength and corrosion resistance, such as offshore platforms, turbine components, heat exchanger systems, and superheater tubes. These fittings are particularly useful in reactor vessels, combustion systems, and waste incineration equipment because of Inconel’s resistance to thermal cycling, chloride ion stress corrosion, and acidic media. They are an affordable option for even the most demanding settings because of their extended service life and minimal maintenance requirements.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
