Luke Steel is a reliable manufacturer and supplier located in Houston, USA, providing a comprehensive selection of Equal, Unequal, and Reducing Crosses that ensure dependable flow distribution in piping systems. Crafted to meet strict ASME, ASTM, and ANSI standards, these crosses connect four pipe sections with precise alignment and guarantee secure, leak-free performance. They are available in carbon steel, stainless steel, alloy steel, and special alloys, coming in various sizes, schedules, and end connections to cater to a wide range of process needs. Industries such as oil and gas, chemical processing, power generation, and water treatment trust Luke Steel for top-notch fittings and expert technical support.
Equal, Unequal, and Reducing Crosses are made from materials specifically chosen to meet service demands. Carbon steel crosses (like ASTM A234 WPB) offer a tensile strength of around 485 MPa, along with good weldability and toughness. Stainless steels such as 304/316 provide tensile strengths ranging from 515 to 620 MPa and boast excellent corrosion resistance. Alloy steel and nickel alloys offer high strength and outstanding performance at elevated temperatures. Each cross undergoes heat treatment and precise machining to ensure dimensional accuracy, proper wall thickness, and integrity under pressure, making them dependable for critical flow control and branch connections.
| Buttweld Equal Cross size | Welded Cross : 1/2″ – 48″ |
|---|---|
| Buttweld Equal Cross Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Equal Cross Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Equal Cross Connection | Welding |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Cross |
| ASME B16.9 Buttweld Equal Cross Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Equal Cross Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ANSI B16.9 Buttweld Equal Cross Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Buttweld Unequal Cross size | Welded Cross : 1/2″ – 48″ |
|---|---|
| Buttweld Unequal Cross Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Unequal Cross Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Unequal Cross Connection | Welding |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Cross |
| ASME B16.9 Buttweld Unequal Cross Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Unequal Cross Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ANSI B16.9 Buttweld Unequal Cross Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Buttweld Reducing Cross size | Welded Cross : 1/2″ – 48″ |
|---|---|
| Buttweld Reducing Cross Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Reducing Cross Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Reducing Cross Connection | Welding |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Cross |
| ASME B16.9 Buttweld Reducing Cross Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Reducing Cross Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ANSI B16.9 Buttweld Reducing Cross Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Harry Fittings is a leading supplier of Equal/ Unequal/ Reducing Cross in Houston, USA. We offer an extensive range of Equal/ Unequal/ Reducing Cross, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Equal/ Unequal/ Reducing Cross from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

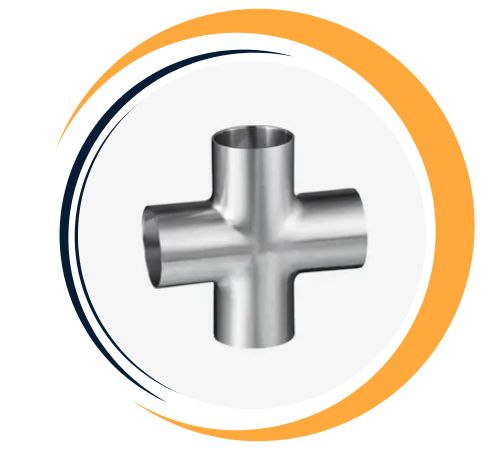

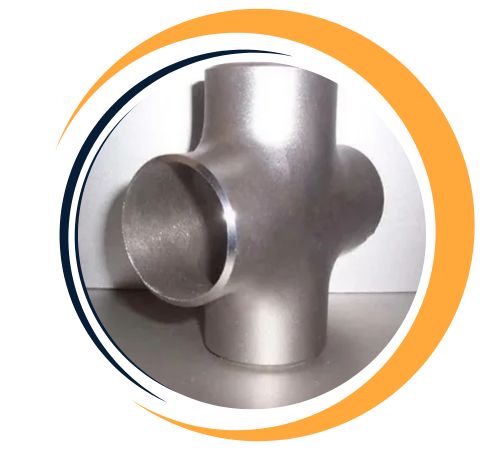

These pipe fittings provide versatile solutions for branching in piping systems. Equal Cross fittings ensure consistent flow by maintaining uniform diameter across all outlets, which is ideal for balanced distribution. Unequal Cross fittings accommodate varied pipe sizes, facilitating transitions in systems with different flow requirements. Reducing Cross fittings offers seamless connections to smaller branches, optimizing space and material usage. All types deliver excellent leak resistance, durability, and compatibility with various materials. They simplify installation, support high-pressure environments, and enhance system efficiency, ensuring long-term reliability across industrial and commercial applications.
| Nominal Pipe Size (NPS) |
DN |
Outside Diameter at Bevel |
Center- to-End |
|
|
Run.C |
Outlet. M[Notes(1) and (2)] | |||
| 1/2 | 15 | 21.3 | 25 | 25 |
| 3/4 | 20 | 26.7 | 29 | 29 |
| 1 | 25 | 33.4 | 38 | 38 |
| 1-1/4 | 32 | 42.2 | 48 | 48 |
| 1-1/2 | 40 | 48.3 | 57 | 57 |
| 2 | 50 | 60.3 | 64 | 64 |
| 2-1/2 | 65 | 73.0 | 76 | 76 |
| 3 | 80 | 88.9 | 86 | 86 |
| 3-1/2 | 90 | 101.6 | 95 | 95 |
| 4 | 100 | 114.3 | 105 | 105 |
| 5 | 125 | 141.3 | 124 | 124 |
| 6 | 150 | 168.3 | 143 | 143 |
| 8 | 200 | 219.1 | 178 | 178 |
| 10 | 250 | 273.0 | 216 | 216 |
| 12 | 300 | 323.8 | 254 | 254 |
| 14 | 350 | 355.6 | 279 | 279 |
| 16 | 400 | 406.4 | 305 | 305 |
| 18 | 450 | 457 | 343 | 343 |
| 20 | 500 | 508 | 381 | 381 |
| 22 | 550 | 559 | 419 | 419 |
| 24 | 600 | 610 | 432 | 432 |
| 26 | 650 | 660 | 495 | 495 |
| 28 | 700 | 711 | 521 | 521 |
| 30 | 750 | 762 | 559 | 559 |
| 32 | 800 | 813 | 597 | 597 |
| 34 | 850 | 864 | 635 | 635 |
| 36 | 900 | 914 | 673 | 673 |
| 38 | 950 | 965 | 711 | 711 |
| 40 | 1000 | 1016 | 749 | 749 |
| 42 | 1050 | 1067 | 762 | 711 |
| 44 | 1100 | 1118 | 813 | 762 |
| 46 | 1150 | 1168 | 851 | 800 |
| 48 | 1200 | 1219 | 889 | 838 |
Yes, custom sizes for Equal/ Unequal/ Reducing Cross are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.

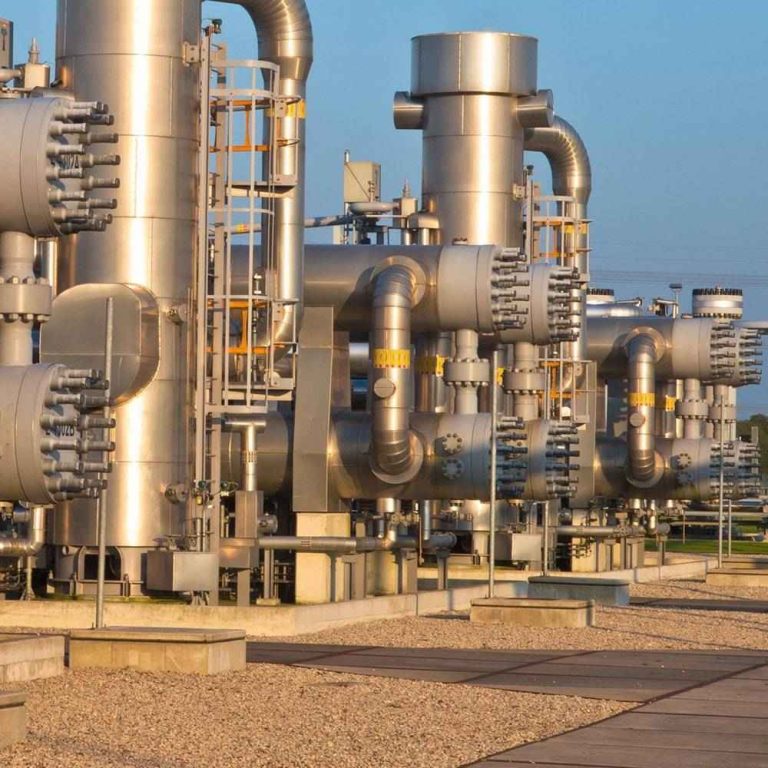

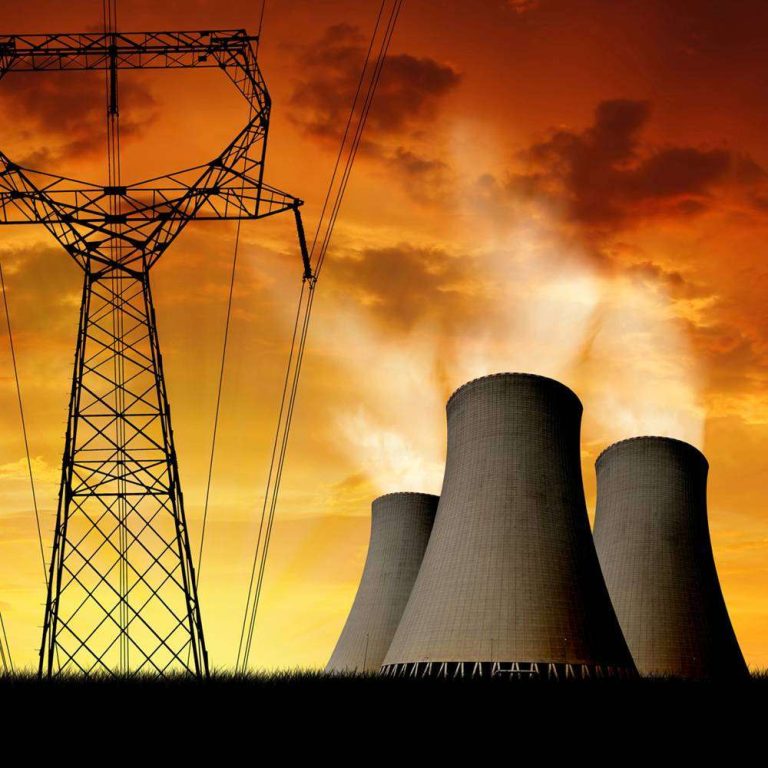

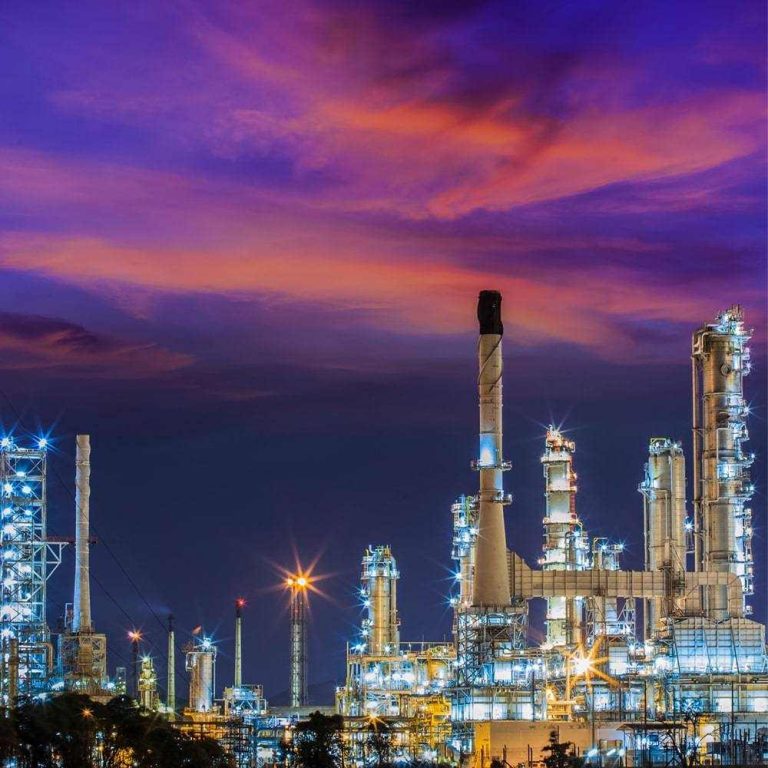

Equal, Unequal, and Reducing Crosses play a vital role in piping systems that need multiple branch connections and accurate flow distribution. Oil and gas operations depend on them for use in manifolds, wellhead assemblies, and gathering systems. Chemical processing plants utilize crosses to manage corrosive media between reactors, storage tanks, and process lines. Power plants incorporate them in high-pressure steam and water piping. Water treatment and fire protection systems use crosses to effectively distribute flow to various pipelines and equipment. Their strength, precise dimensions, and material versatility ensure safe and efficient operation in diverse applications.
