Incoloy 825 Pipe Fittings Manufacturer and Supplier in Houston, USA

Harry Fittings, a top-notch manufacturer and supplier based in Houston, USA, stands out for its commitment to providing high-quality Incoloy 825 pipe fittings. These fittings are crafted for outstanding performance, specifically designed to meet the rigorous demands of industries such as chemical processing, oil and gas, and marine applications. Known for their remarkable resistance to corrosion and oxidation, Harry Fittings guarantees that every product adheres to strict quality standards. By harnessing cutting-edge technology and skilled craftsmanship, the company has established itself as a reliable partner for durable Incoloy 825 pipe fitting solutions around the globe.

UNS N08825 Elbow And Most Reliable Alloy 825 Tubing Fittings USA, Incoloy 825 Pipe Fitting United kingdom, ASTM B366 N08825 Incoloy 825 Fittings Suppliers Houston, Incoloy 825 Buttweld Fittings Los Angeles, ASTM B366 WPNICMC Fittings Houston, Incoloy 825 Elbow Fittings Texas, UNS N08825 Tee Fittings Dealer California, Alloy 825 Fittings Stockists Houston, USA.

Incoloy 825 Pipe Fittings Specification

Spec Chart Of:	Incoloy 825 Pipe Fittings
Dimension Table Of:	ANSI B16.9, JIS B2312, MSS-SP-43 Type B, ASME B16.28, JIS B2313, MSS-SP-43 Type A
Fittings Materials Directory:	Iron (Ductile/Cast), Carbon Steel, Titanium, Nickel Alloys, Nickel, Cupro-Nickel 90/10 & 70/30, Brass, Bronze, Copper, Chrome-molybdenum, Inconel, Monel, Tantalum, Stainless Steel, Hastalloy, Alloy Steel
Size Calculation:	Normal Pipe Size (1⁄₂”) to Normal Pipe Size (48”)
Standard Fittings Chart	JIS, NPT, ISO, DIN, EN
Manimum Pressure	Class 150# To Class 2500#.
Schedule Chart:	Schedule 5s/ Schedule 10s/ Schedule 40/ Schedule 80/ Schedule 120/ Schedule 160.
Most Demanded Fittings Types	Adapter, 4 Wye, End Cap, Stub End, Reducer, Cross, Bend, Elbow, Tee
Buttweld Fittings Connection Type	Threaded/ Weld/ Flange/ Clamp End / End Bell

Incoloy 825 Pipe Fittings Chemical Composition

The Chemical Composition of Incoloy 825 Pipe Fittings, %
Nickel	38.0-46.0
Iron	≥22.0
Chromium	19.5-23.5
Molybdenum	2.5-3.5
Copper	1.5-3.0
Titanium	0.6-1.2
Carbon	≤0.05
Manganese	≤1.00
Sulfur	≤0.030
Silicon	≤0.50
Aluminum	≤0.20

Incoloy 825 Pipe Fittings Mechanical Properties

Tensile Strength, min.		Yield Strength, min.		Elongation, min.	Elastic Modulus
Mpa	%	Gpa	10⁶psi	ksi	Mpa	ksi
690	45	206	29.8	100	310	45

Incoloy 825 Pipe Fittings Equivalent Indian Standard

STANDARD	AFNOR	EN	OR	WERKSTOFF NR.	UNS	JIS	BS	GOST
Incoloy 825 Pipe Fittings	NFE30C20DUM	NiCr21Mo	XH38BT	2.4858	N08825	NCF 825	NA 16	ЭП703

Incoloy 825 pipe fittings are constructed from a nickel-iron-chromium alloy, enriched with significant amounts of molybdenum, copper, and titanium. This unique blend provides exceptional resistance to acid attacks, especially from sulfuric and phosphoric acids. The fittings boast a tensile strength of about 585 MPa and a yield strength of 220 MPa, along with impressive resistance to pitting and crevice corrosion. Their thermal stability and mechanical strength make them perfect for high-temperature and corrosive environments, ensuring they remain reliable and long-lasting in demanding industrial settings.

Distributors of Incoloy 825 Buttweld Pipe Fittings in USA, ASTM B366 N08825 Equal Tee United kingdom, 825 Incoloy® Alloy Welded Pipe Fittings Suppliers Houston, Werkstoff Nr. 2.4858 Concentric Reducer Los Angeles, 800HT Incoloy 825 45°/90°/180° Butt weld Elbow Houston, Nickelvac® 825 Pipe Fittings Texas, Alloy 825 Buttweld Pipe Nipple California, High-Quality ASME B366 Incoloy N08825 Stub End Houston, USA.

Largest Incoloy 825 Pipe Fittings Supplier in Houston, USA

Harry Fittings is a leading supplier of Incoloy 800/ 800H/ 800HT Pipe Fittings in Houston, USA. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Why Choose Incoloy 825 Pipe Fittings from Harry Fittings?

Incoloy 825 Pipe Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS N08825 Elbow And Most Reliable Alloy 825 Tubing Fittings USA, Incoloy 825 Pipe Fitting United kingdom, ASTM B366 N08825 Incoloy 825 Fittings Suppliers Houston, Incoloy 825 Buttweld Fittings Los Angeles, ASTM B366 WPNICMC Fittings Houston, Incoloy 825 Elbow Fittings Texas, UNS N08825 Tee Fittings Dealer California, Alloy 825 Fittings Stockists Houston, USA.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Incoloy 825 pipe fittings offer several advantages, making them ideal for demanding applications. They provide exceptional resistance to corrosion, including pitting, crevice corrosion, and intergranular attack, even in harsh acidic and oxidizing environments. Their high nickel content ensures resistance to stress corrosion cracking, while molybdenum enhances protection against chloride-induced corrosion. These fittings maintain excellent mechanical strength and stability across a wide temperature range. Additionally, they are durable, easy to fabricate, and cost-effective, ensuring long-term reliability in industries like chemical processing, marine engineering, and oil and gas exploration.

Standard Dimensions Of Alloy 825 Pipe Fittings

NPS (Normal Pipe Size)	O.D. (Outside Daimeter)		Elbow 90 Deg		Elbow 45 Deg		Return Elbow 180 Deg
*(inch)*			Long Radius Elbow	Short Radius	Long Radius Elbow		Long Radius Elbow
	*(millimeter/ MM)*	*(inch./ Inches)*	Center to Face (Inches)	Center to Face (Inches)	Center to Face (Inches)	Radius (Inches)	Center to Center (Inches)	Back to face (Inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	–	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Alloy 825 Pipe Fittings Weight Chart Table

DN (Normal Pipe Size) For ASME B16.9	Schedule 10S			Schedule 40S			Schedule 80S
DN (Normal Pipe Size) For ASME B16.9	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

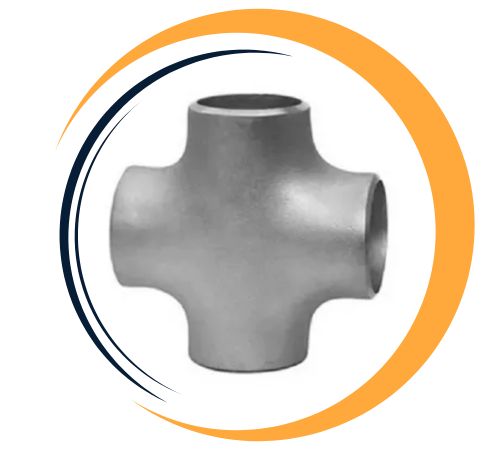

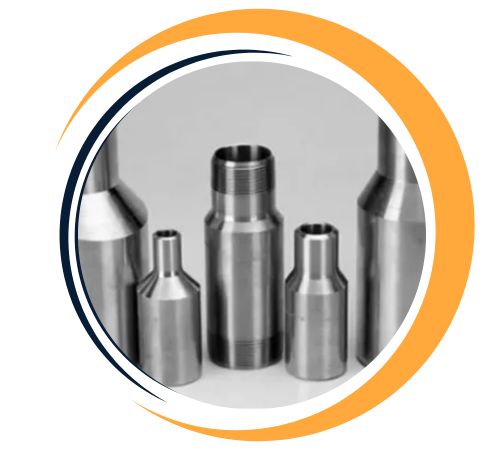

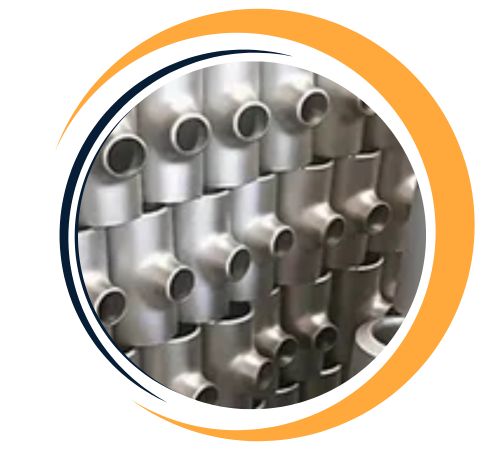

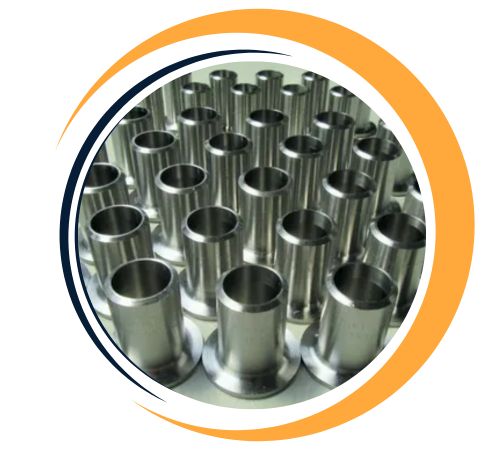

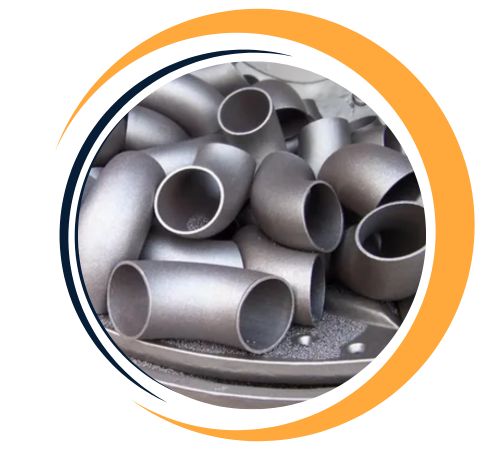

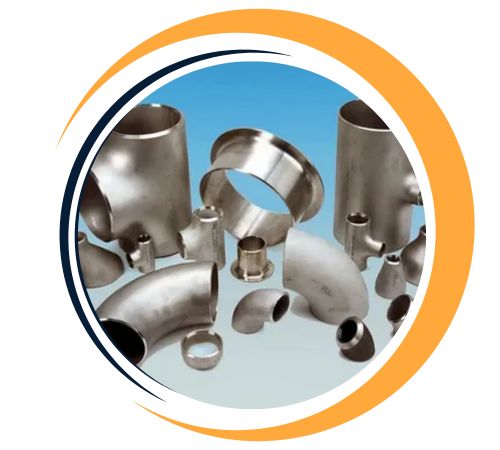

Types of Incoloy 825 Pipe Fittings

Are Custom Sizes Available for Incoloy 825 Pipe Fittings?

Yes, custom sizes for Incoloy 825 Pipe Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.

Distributors of Incoloy 825 Buttweld Pipe Fittings in USA, ASTM B366 N08825 Equal Tee United kingdom, 825 Incoloy® Alloy Welded Pipe Fittings Suppliers Houston, Werkstoff Nr. 2.4858 Concentric Reducer Los Angeles, 800HT Incoloy 825 45°/90°/180° Butt weld Elbow Houston, Nickelvac® 825 Pipe Fittings Texas, Alloy 825 Buttweld Pipe Nipple California, High-Quality ASME B366 Incoloy N08825 Stub End Houston, USA.

Application Industry of Incoloy 825 Pipe Fittings

Incoloy 825 pipe fittings find extensive use in industries that require both corrosion resistance and high-temperature performance. They are essential in chemical processing for managing corrosive substances, in oil and gas for sour gas and offshore drilling operations, and in marine environments for saltwater applications. Additionally, they are utilized in power generation, pollution control equipment, and heat exchangers. The combination of durability, strength, and resistance to harsh conditions makes Incoloy 825 fittings the go-to choice for industries aiming for efficiency and reliability in extreme environments.
