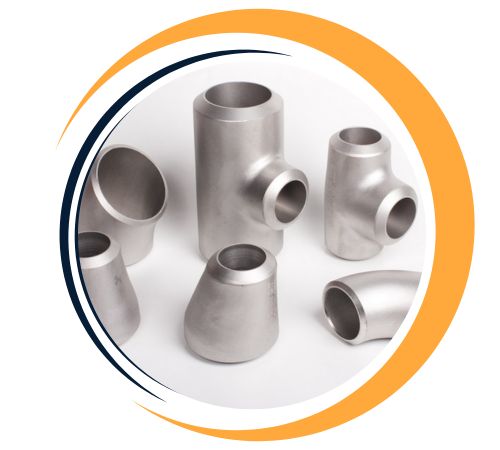

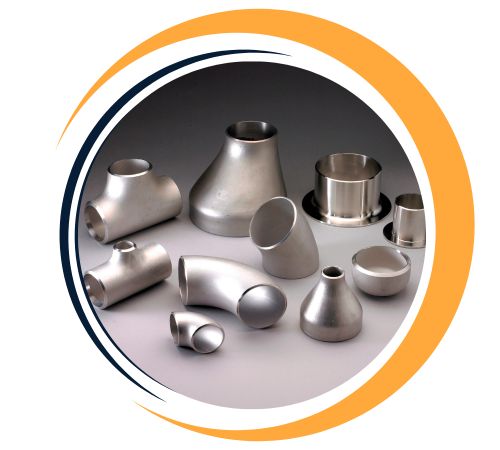

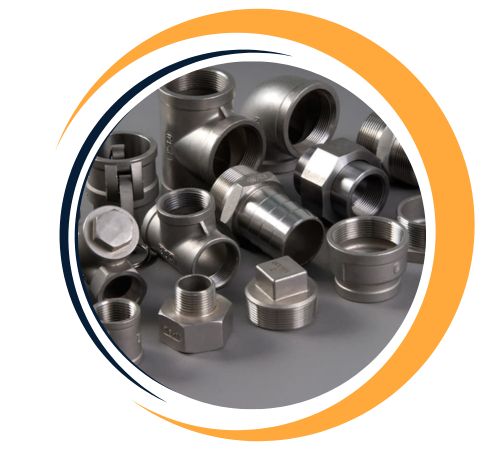

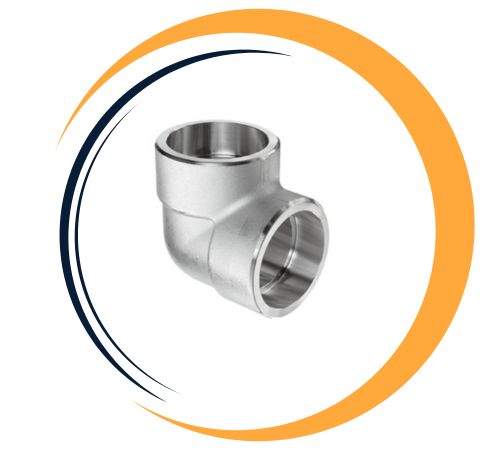

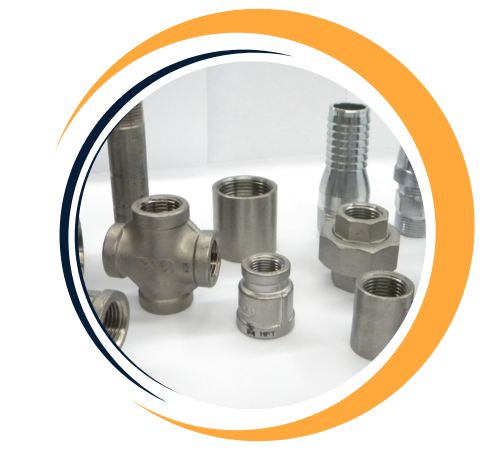

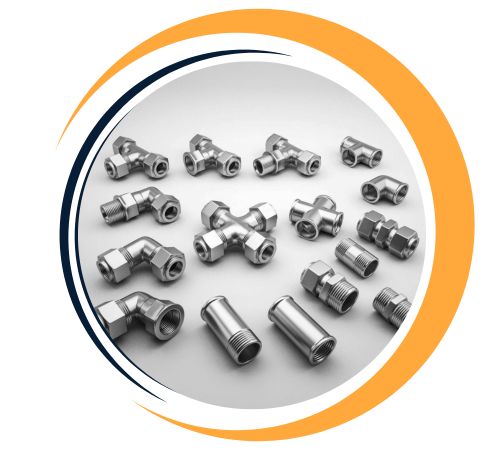

Harry Fittings, a top-notch manufacturer and supplier located in Houston, USA, provides an extensive selection of durable and high-performance Carbon Steel Pipe Fittings tailored for both industrial and commercial uses. Designed for strength and reliability, these fittings excel in systems that face high pressure, temperature, and mechanical stress. Harry Fittings produces elbows, tees, reducers, caps, and various other pipe fittings that meet ASTM, ASME, and ANSI standards. Renowned for their precision machining, dimensional accuracy, and sturdy construction, our Carbon Steel Pipe Fittings are widely utilized in oil & gas, power plants, petrochemicals, and structural piping applications around the world.
| Grade Specification | Carbon Steel: ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70Low temperature Steel: A420 WPL3 / A420 WPL6 |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Carbon Steel Pipe Fittings from Harry Fittings are generally crafted from grades like ASTM A234 WPB, A105, or A106, primarily composed of iron and carbon, with small amounts of manganese, phosphorus, and sulfur. These fittings boast impressive tensile strength (up to 485 MPa) and outstanding impact resistance, making them perfect for high-pressure scenarios. They are recognized for their ductility, toughness, and weldability, particularly in seamless systems. All fittings are produced according to standards such as ASME B16.9 and undergo rigorous testing for hydrostatic performance, dimensional accuracy, and mechanical integrity to guarantee long-lasting operational reliability.
|
Element |
Weight % |
|
Carbon |
0.08 – 0.15 |
|
Nickel |
0.5 max |
|
Phosphorus |
0.025 max * |
|
Sulphur |
0.025 max * |
|
Molybdenum |
0.90 – 1.10 |
|
Chromium |
2.00 – 2.50 |
|
Silicon |
0.15 – 0.50 |
|
Manganese |
0.30 – 0.60 |
|
Property |
Values |
|
Hardness |
197 – 237 BHN (75 Ksi min) |
|
Ultimate Tensile Strength * |
95 min Ksi (655 Mpa) |
|
Elongation * |
17 % min |
|
Reduction of Area * |
35 % min |
|
0.2 % Yield Strength * |
75 min Ksi (517 Mpa) |
|
Charpy Impact Toughness |
42 mean/ 33 min J at –18o C |
Harry Fittings is a leading supplier of Carbon Steel Pipe Fittings in Houston, USA. We offer an extensive range of Carbon Steel Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Carbon Steel Pipe Fittings from Harry Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Carbon Steel Pipe Fittings offer several advantages, making them a preferred choice across industries. They provide exceptional strength and durability, allowing them to withstand high pressures and heavy loads. These fittings are highly resistant to wear and impact, ensuring longevity in demanding conditions. Cost-effectiveness is another key benefit, as carbon steel is less expensive compared to other alloys while maintaining excellent performance. Their adaptability to various temperatures and resistance to corrosion in moderate environments make them versatile for numerous applications, including oil and gas, construction, and power generation industries.
Yes, custom sizes for Carbon Steel Pipe Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| DN (Normal Pipe Size) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Harry Fittings’ Carbon Steel Pipe Fittings find extensive applications in oil & gas pipelines, power generation facilities, petrochemical refineries, shipbuilding, water treatment plants, and industrial process piping systems. They are particularly well-suited for high-temperature and high-pressure settings where mechanical strength is crucial. Common uses include steam lines, hydraulic systems, offshore drilling platforms, and structural pipe networks. Their ability to endure stress, pressure, and harsh conditions makes them a cost-effective and dependable choice for critical infrastructure projects.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
