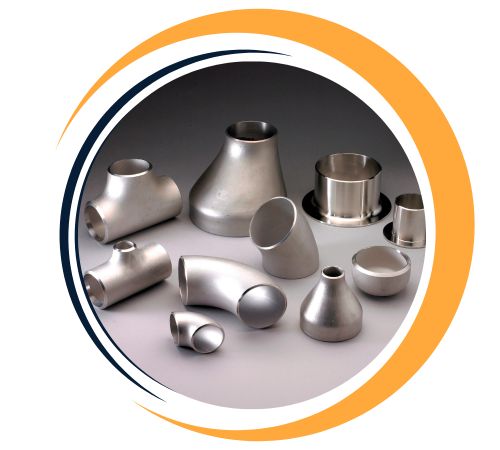

Premium Carbon Steel P235GH Pipe Fittings, made to withstand the rigours of high-temperature and high-pressure applications, are manufactured and supplied by Harry Fittings, a reputable company with its headquarters located in Houston, USA. P235GH elbows, tees, reducers, and caps for critical industrial systems are offered by Harry Fittings, a company well-known for its precision engineering and adherence to EN standards. Power plants, petrochemical facilities, and refineries all make extensive use of these fittings in their piping systems and pressure vessels. Harry Fittings provides reliable and long-lasting solutions to both domestic and foreign markets by means of strict quality control and customer-focused service.
| Size Range | Welded Fittings: 1/2″ – 48″ Seamless Fittings: 1/2″ – 10″ |
|---|---|
| Bending Radius | R=8D, 3D, 10D, 1D, 2D, 5D, 6D or Custom MSS Sp-43 |
| Elbows | Angle : 3D, 4D, 5D, 6D, 1.0D, 1.5D, 2.0D, 2.5D, 7D-40D . Standard: MSS SP-75 JISB2312 JISB2313, ASME B16.9, 22.5 deg, 30deg, 45 deg, 90 deg, DIN2605 JISB2311 BS, 180 deg, GB, ISO |
| Specialized manufacturer of | 90º Elbows, Tee, Stub End, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend |
| Thickness | SCH 140, SCH 160, SCH10, SCH30, STD SCH40, SCH20, XS, SCH 80, SCH60, SCH 100, SCH 120, XXS |
| Dimensions | ASME/ANSI B16.9, BS4504, ASME B16.28, MSS-SP-43, BS4504, BS1560, BS10 |
| Manufacturing process | Press, Forge, Push, Cast, etc. |
| Origin & Mills | Japanese, Korean, European, Indian, USA, Ukraine, Russian |
| Type | DN15-DN1200 |
| Connection | Welding |
| Test Certificates | Raw Materials Certificate EN 10204/3.1B Third Party Inspection Report, etc |
Carbon (≤0.16%), manganese (0.40–1.30%), phosphorus (≤0.025%), sulphur (≤0.015%), and silicon (≤0.40%) make up the majority of Carbon Steel P235GH Pipe Fittings. These fittings are renowned for their exceptional strength, formability, and weldability at high temperatures. Mechanical characteristics include tensile strength ranging from 360 to 500 MPa and a minimum yield strength of 235 MPa. Additionally, P235GH retains good ductility and elongation, guaranteeing performance in high-pressure settings. The material can be easily incorporated into thermal systems and pressure equipment because it has been normalised for increased toughness and structural integrity.
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | – |
| max 0.16 | max 0.35 | 0.6 – 1.2 | max 0.3 | max 0.025 | max 0.015 | max 0.3 | max 0.08 | max 0.02 | max 0.012 | max 0.02 | max 0.03 | max 0.02 | max 0.3 | Cr+Cu+Mo+Ni < 0.7 |
| Nominal thickness (mm): | to 100 | 100 – 150 | 150 – 250 |
| Rm – Tensile strength (MPa) (+N) | 360-480 | 350-480 | 340-480 |
Harry Fittings is a leading supplier of Carbon Steel P235GH Pipe Fittings in Houston, USA. We offer an extensive range of Carbon Steel P235GH Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Carbon Steel P235GH Pipe Fittings from Harry Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Carbon Steel P235GH Pipe Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us
| EU EN | USA – | Germany DIN,WNr | Japan JIS | France AFNOR | England BS | Italy UNI | Belgium NBN | Spain UNE | China GB | Sweden SS | Poland PN | Czechia CSN | Finland SFS | Austria ONORM | Russia GOST | Inter ISO | India IS | |||||||||||||||||||||||||||||||
| P235GH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Nominal Pipe Size | Outside Diameter | Reducers | ||
|---|---|---|---|---|
|
Reduced from
(inches) |
(mm) |
(inches) |
Reduced to
(inches) |
Concentric & Eccentric Length
(inches) |
|
1/2 |
21.3 |
0.840 |
1/4 |
1 1/2 |
|
3/8 |
1 1/2 |
|||
|
3/4 |
26.7 |
1.050 |
3/8 |
2 |
|
1/2 |
2 |
|||
|
1 |
33.4 |
1.315 |
3/8 |
2 |
|
1/2 |
2 |
|||
|
3/4 |
2 |
|||
|
1 1/4 |
42.2 |
1.660 |
1/2 |
2 |
|
3/4 |
2 |
|||
|
1 |
2 |
|||
|
1 1/2 |
48.3 |
1.900 |
1/2 |
2 1/2 |
|
3/4 |
2 1/2 |
|||
|
1 |
2 1/2 |
|||
|
1 1/4 |
2 1/2 |
|||
|
2 |
60.3 |
2.375 |
3/4 |
3 |
|
1 |
3 |
|||
|
1 1/4 |
3 |
|||
|
1 1/2 |
3 |
|||
|
2 1/2 |
73.0 |
2.875 |
1 |
3 1/2 |
|
1 1/4 |
3 1/2 |
|||
|
1 1/2 |
3 1/2 |
|||
|
2 |
3 1/2 |
|||
|
3 |
88.9 |
3.500 |
1 |
3 1/2 |
|
1 1/2 |
3 1/2 |
|||
|
2 |
3 1/2 |
|||
|
2 1/2 |
3 1/2 |
|||
|
3 1/2 |
101.6 |
4.000 |
1 1/4 |
4 |
|
1 1/2 |
4 |
|||
|
2 |
4 |
|||
|
2 1/2 |
4 |
|||
|
3 |
4 |
|||
|
4 |
114.3 |
4.500 |
1 1/2 |
4 |
|
2 |
4 |
|||
|
2 1/2 |
4 |
|||
|
3 |
4 |
|||
|
3 1/2 |
4 |
|||
|
5 |
141.3 |
5.563 |
2 |
5 |
|
2 1/2 |
5 |
|||
|
3 |
5 |
|||
|
3 1/2 |
5 |
|||
|
4 |
5 |
|||
|
6 |
168.3 |
6.625 |
2 1/2 |
5 1/2 |
|
3 |
5 1/2 |
|||
|
3 1/2 |
5 1/2 |
|||
|
4 |
5 1/2 |
|||
|
5 |
5 1/2 |
|||
|
8 |
219.1 |
8.625 |
3 |
6 |
|
3 1/2 |
6 |
|||
|
4 |
6 |
|||
|
5 |
6 |
|||
|
6 |
6 |
|||
|
10 |
273.1 |
10.750 |
4 |
7 |
|
5 |
7 |
|||
|
6 |
7 |
|||
|
8 |
7 |
|||
|
12 |
323.9 |
12.750 |
5 |
8 |
|
6 |
8 |
|||
|
8 |
8 |
|||
|
10 |
8 |
|||
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Industries that need to withstand high temperatures and pressures frequently use carbon steel P235GH pipe fittings. In the petrochemical, oil and gas, and power generation sectors, these fittings are perfect for use in boilers, pressure vessels, heat exchangers, and pipeline systems. They are widely used in thermal power plants and steam systems because of their excellent mechanical performance and weldability. P235GH fittings are appropriate for moving gases and liquids in high-stress situations and meet EN standards. They are necessary for safe and effective industrial fluid handling systems because of their resistance to pressure cycling and thermal fatigue.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
