Harry Fittings Manufacturer and Suppliers, located in Houston, USA, is a trusted name when it comes to Titanium Grade 5 Pipe Fittings. They cater to a wide range of industries, providing high-performance piping components that truly stand out. With a strong focus on quality, precision, and customer satisfaction, Harry Fittings ensures that their products are engineered to withstand even the toughest conditions. Their Titanium Grade 5 Pipe Fittings are celebrated for their remarkable strength, resistance to corrosion, and lightweight nature. These fittings find their place in various sectors, including aerospace, marine, petrochemical, and power generation, all while adhering to international standards for long-lasting reliability in high-stress environments.
Standard : ASTM B363 / ASME SB363
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″ to 24″ NB to 24″NB in
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Type : Seamless / Welded / Fabricated

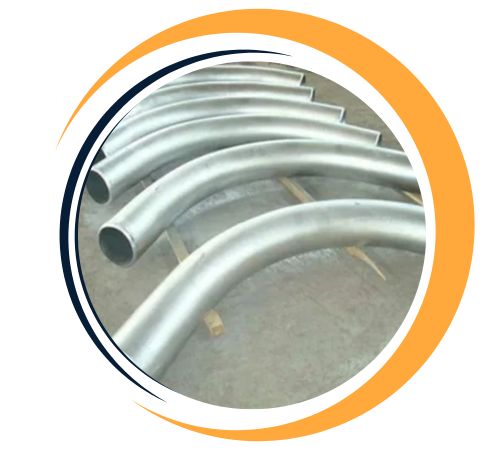

Bending Radius :R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr 5 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |
Titanium Grade 5, or Ti-6Al-4V, is an alpha-beta alloy made up of 90% titanium, 6% aluminum, and 4% vanadium. This unique blend provides an impressive combination of high tensile strength (around 950 MPa), yield strength (approximately 880 MPa), and fatigue resistance. It also holds its structural integrity at elevated temperatures and shows good resistance to corrosion in different environments. With a density of 4.43 g/cm³ and outstanding weldability, this alloy is perfect for both structural and pressure-handling applications. Titanium Grade 5 is well-known for merging high mechanical performance with the benefits of corrosion-resistant titanium.
Harry Fittings is a leading supplier of Titanium Gr 5 Pipe Fittings in Houston, USA. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Gr 5 Pipe Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

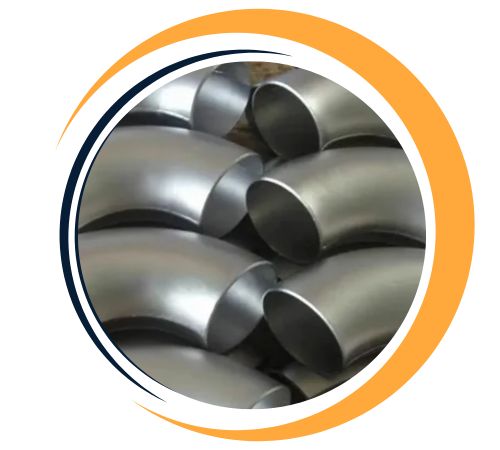

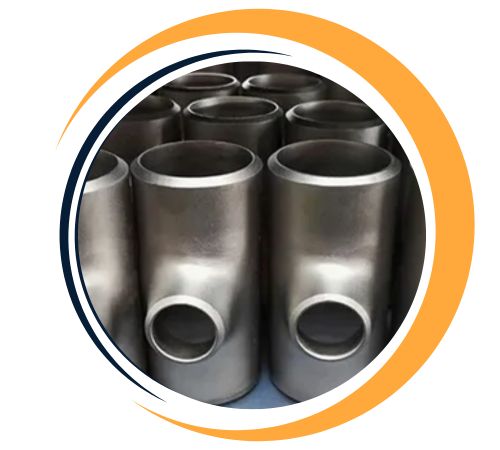

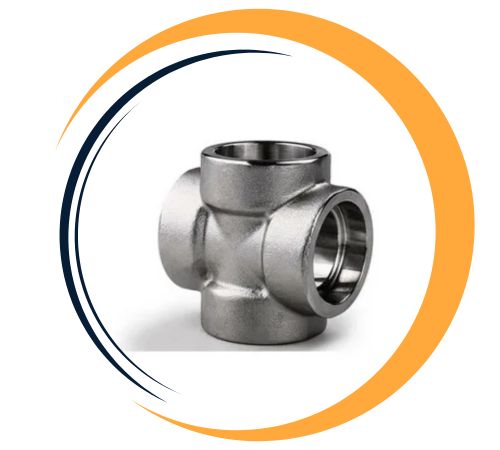

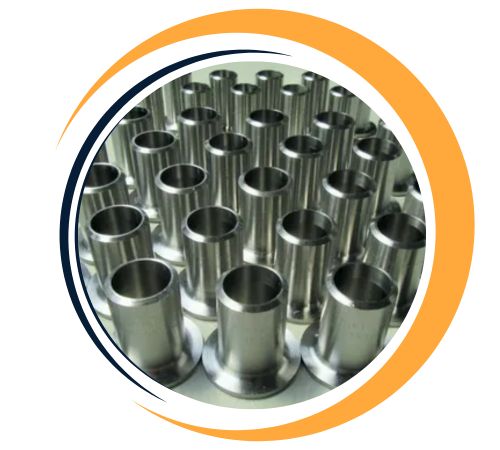

| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings | GR5 Titanium Alloy Long Radius Elbows, Long Radius Reducing Elbows, Titanium Gr5 Long Radius Returns, Titanium Alloy Gr5 Short Radius Elbows, Titanium Gr 5 Short Radius 180-deg Rerurns, Titanium Gr 5 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Titanium Gr 5 Lap Joint Stub Ends, Titanium Gr 5 Caps, Reducers |
| ASME B16.28 | Gr5 Titanium Alloy Short Radius Elbows, Titanium Gr 5 Short Radius 180-deg Returns | |

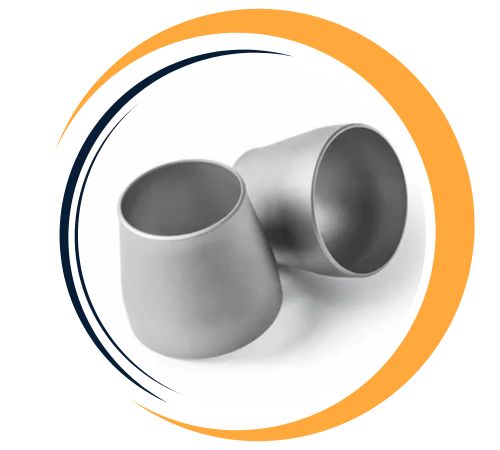

| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Titanium Gr 5 Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, Gr5 Titanium Gr 5 caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Titanium Gr 5 Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, Gr5 Titanium Alloy reducers |
Yes, custom sizes for Titanium Gr 5 Pipe Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
Titanium Grade 5 Pipe Fittings are a go-to choice for many applications that demand a combination of strength, lightness, and resistance to corrosion. These fittings shine in aerospace systems, offshore and marine setups, chemical processing plants, and even in the manufacturing of medical equipment. Their ability to withstand seawater and a range of corrosive chemicals makes them perfect for subsea and high-salinity conditions. In the realms of power generation and oil & gas, they provide a dependable solution for systems that operate under high temperatures and pressures. With a track record of consistent performance and adherence to stringent quality standards, Harry Fittings delivers Titanium Grade 5 Pipe Fittings that cater to the essential needs of today’s industries.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
