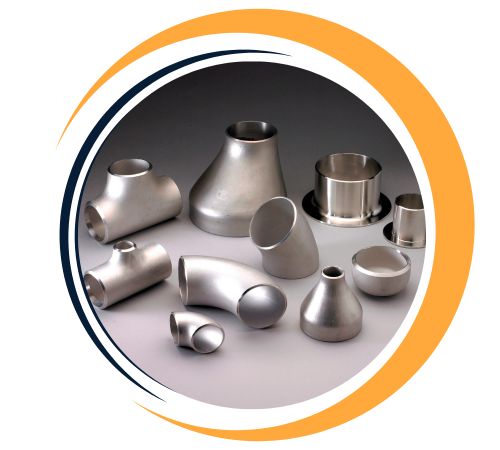

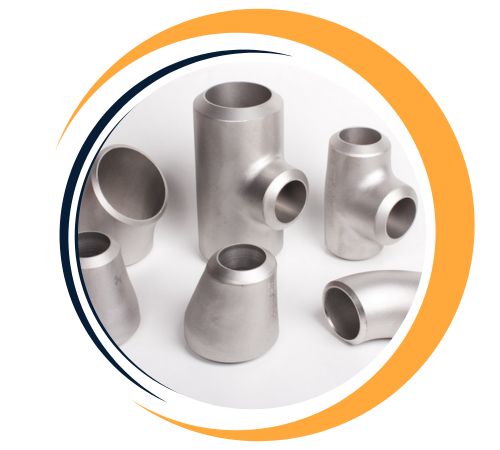

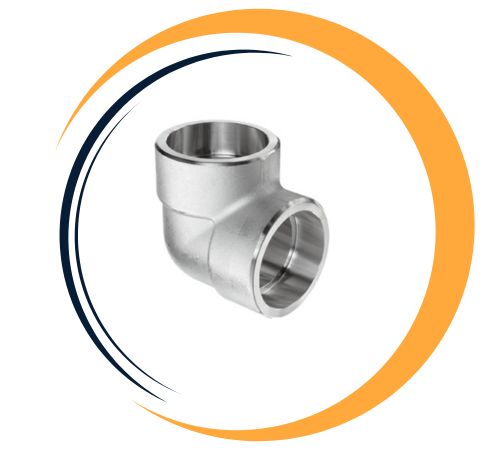

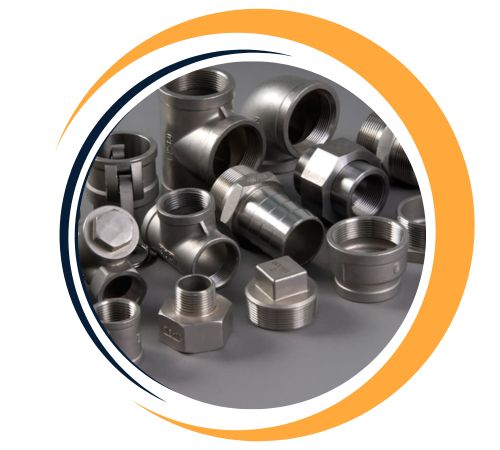

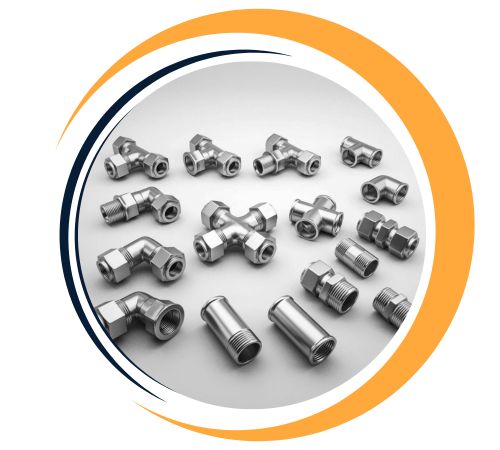

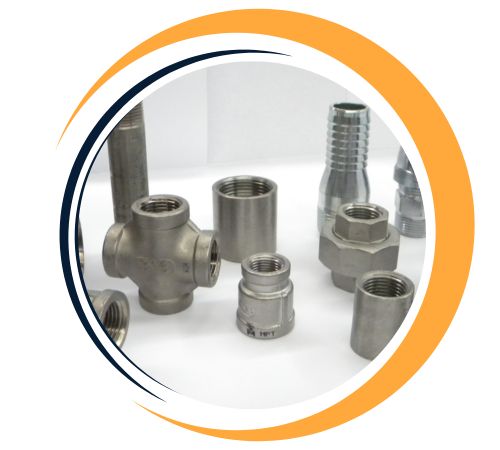

Harry Fittings is a top manufacturer and supplier of ASTM A860 WPHY 42 Pipe Fittings, offering premium forged fittings for pipeline systems with low to medium pressure. The company is based in Houston, USA. These fittings, which include elbows, tees, reducers, and caps, are made in accordance with ASTM and MSS standards and guarantee accuracy and longevity. Harry Fittings provides dependable and reasonably priced piping solutions to a variety of industries, including water treatment, petrochemical, and oil and gas. The company is committed to offering durable and effective fittings for vital flow management systems through sophisticated manufacturing procedures and strict quality control.
| Specifications | ASTM A860/ ASME SA860 |
|---|---|
| Grade | WPHY 42 |
| Dimension | ASME/ ANSI B16.9 | BS10 | ASME B16.28 | BS1560 | BS4504 | MSS-SP-43 |
| Thickness of Fittings | SCH 10, SCH20, SCH 30, STD SCH 40, SCH 60, XS, SCH80, SCH100, SCH 120, SCH 140, SCH160, XXS available with NACE MR 01-75 |
| Types | Seamless | Welded | Fabricated |
| Bending Radius | R= 1D, 8D, 3D, 2D, 6D, 5D, 10D |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Size Ranges | Seamless ButtWeld Fitting: From 1/2″ – 10″ Welded ButtWeld Fitting: From 1/2″ – 48″ |
| Process of Manufacturing | Push, Press, Cast, Forge. |
ASTM A860 WPHY 42 Pipe Fittings are composed primarily of carbon, manganese, phosphorus, sulfur, and silicon, with trace amounts of vanadium and titanium to enhance strength and durability. These fittings offer exceptional mechanical properties, including a minimum tensile strength of 415 MPa and a minimum yield strength of 290 MPa. Known for their toughness and resistance to high-pressure environments, they also provide excellent impact strength at sub-zero temperatures. ASTM A860 WPHY 42 fittings are widely used in demanding pipeline systems for oil, gas, and petrochemical industries.
| Grade | P | Mn | S | Si | Ni | Cr | Mo | Cu | Ti | Cb | V | Al |
| WPHY42 | 1.00-1.45 | 0.20 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.10 | 0.05 | 0.04 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 515-690 | 415 | 28 % |
The high-strength low-alloy steel used to make ASTM A860 WPHY 42 Pipe Fittings contains trace amounts of micro-alloying elements along with carbon (≤0.26%), manganese (≤1.35%), phosphorus (≤0.035%), and sulphur (≤0.035%). To improve mechanical strength and toughness, these fittings are heat-treated, usually normalised or quenched and tempered. They have a tensile strength of up to 60,000 psi (414 MPa) and a minimum yield strength of 42,000 psi (290 MPa). WPHY 42 fittings are perfect for moderate pressure applications in a variety of industries because of their strong weldability, impact resistance, and structural stability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose ASTM A860 WPHY 42 Pipe Fittings from Harry Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for ASTM A860 WPHY 42 Pipe Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Low to medium pressure pipelines in the petrochemical, water treatment, construction, and oil and gas industries frequently use ASTM A860 WPHY 42 pipe fittings. For systems carrying water, oil, natural gas, and other fluids where reliable flow control and joint integrity are necessary, these fittings are essential. WPHY 42 is particularly well-suited for uses like distribution lines, utility piping, and pump systems where high strength is required but extreme pressure is absent. They are appropriate for both above-ground and underground piping networks in demanding operating environments due to their superior mechanical qualities and resistance to corrosion.
