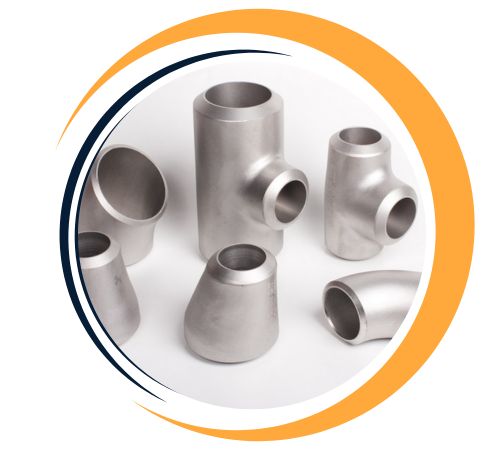

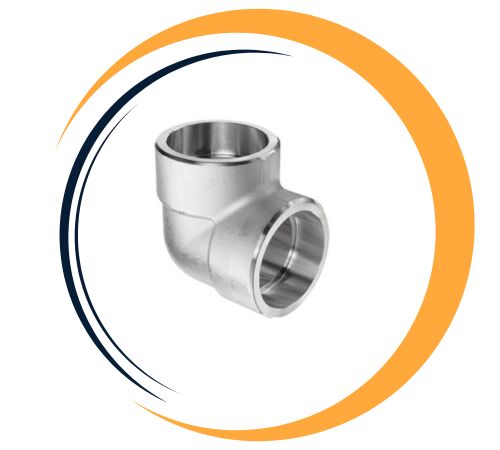

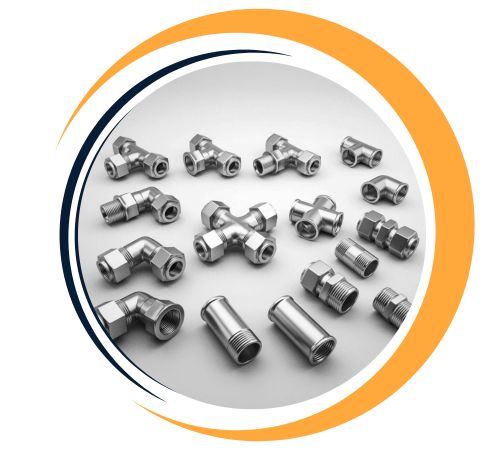

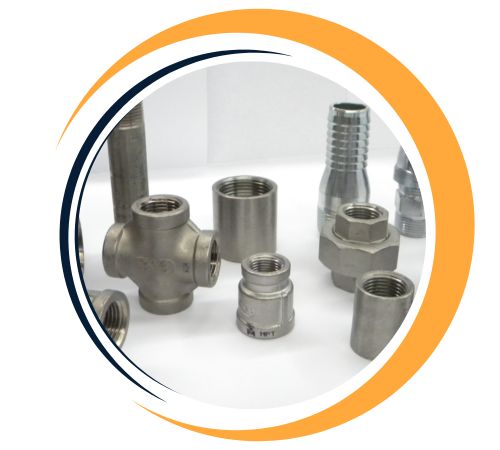

For applications requiring exceptional resistance to heat, pressure, and corrosion, Harry Fittings, a top supplier and manufacturer in Houston, USA, provides precision-engineered Inconel Forged Fittings. These forged fittings, which include elbows, tees, couplings, unions, and plugs, are made in accordance with ASTM B564 and other international standards. They are made from high-performance grades like Inconel 600, 601, 625, and 718. Inconel forged fittings, which are well-known for their superior mechanical qualities and resistance to oxidation, are perfect for applications requiring durability and safety in harsh environments, such as chemical processing, aerospace, nuclear reactors, and marine settings.
| Specifications | ASTM B564 & ASME SB564 |
| Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Grades | Inconel 600, 601, 625, 718, 783, 690, X750 Forged Fittings |

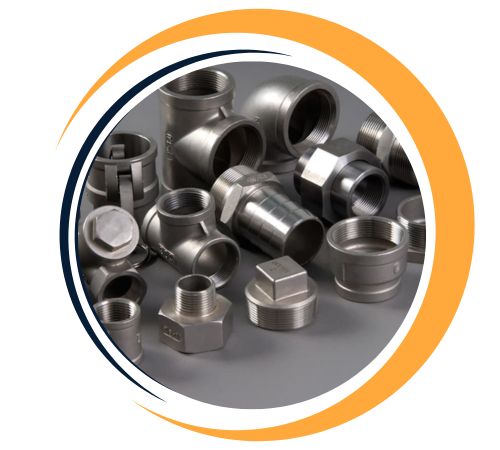

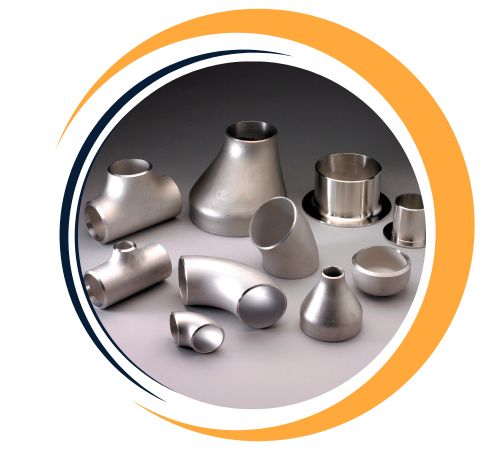

| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Depending on the Inconel grade, Vipul Pipes and Tubes’ Inconel Forged Fittings are mainly made of nickel (≥58%) alloyed with chromium, iron, molybdenum, niobium, and other elements. Particularly in oxidising and chloride-rich environments, these fittings are resistant to corrosion. Tensile strength up to 1035 MPa, yield strength ≥415 MPa, and remarkable creep resistance at high temperatures are examples of mechanical properties. Inconel forged fittings are perfect for high-stakes, pressurised systems because they are designed to last in conditions with high temperatures, acid attacks, and pressure changes.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Harry Fittings is a leading supplier of Inconel Forged Fittings in Houston, USA. We offer an extensive range of Inconel Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | EN | WERKSTOFF NR. | GOST | JIS | BS | AFNOR |
| Inconel 600 | N06600 | NiCr15Fe | 2.4816 | МНЖМц 28-2,5-1,5 | NCF 600 | NA 13 | NC15FE11M |
| Inconel 601 | N06601 | NiCr23Fe | 2.4851 | XH60BT | NCF 601 | NA 49 | NC23FeA |
| Inconel 625 | N06625 | NiCr22Mo9Nb | 2.4856 | ХН75МБТЮ | NCF 625 | NA 21 | NC22DNB4M |
| Inconel 718 | N07718 | – | 2.4668 | – | – | – | – |
Choose Inconel Forged Fittings from Harry Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Inconel Forged Fittings offer numerous advantages, making them ideal for demanding applications. Their exceptional resistance to oxidation, corrosion, and extreme temperatures ensures durability in harsh environments. These fittings exhibit superior mechanical strength, maintaining performance under high-pressure and high-stress conditions. With excellent weldability and machinability, they allow for precise installation and customization. Additionally, their resistance to pitting, crevice corrosion, and chloride-induced stress corrosion cracking enhances reliability in chemical, marine, and aerospace industries. Inconel Forged Fittings provide long-term performance, reducing maintenance needs and ensuring operational efficiency in critical systems.
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
Yes, custom sizes for Inconel Forged Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
Aerospace, nuclear energy, petrochemical facilities, chemical reactors, and marine systems all make extensive use of Inconel Forged Fittings from Vipul Pipes and Tubes. High-performance applications like heat exchangers, combustion chambers, jet engines, valve assemblies, and superheater systems require these fittings. Inconel forged fittings provide reliable performance in critical systems that operate at high temperatures and pressures because of their strength and resistance to oxidation, acid corrosion, and thermal cycling. They are a durable and secure option for cutting-edge industrial infrastructure because of their capacity to maintain structural integrity in harsh chemical and maritime environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
