Based in Houston, USA, Vipul Pipes and Tubes is a top producer and supplier of high-performance stainless steel 316L pipe fittings that are utilised in a variety of industries that require superior weldability and corrosion resistance. A low-carbon variant of 316 stainless steel, SS 316L is renowned for its exceptional resistance to pitting and crevice corrosion in environments high in chloride. These pipe fittings, which include caps, crosses, reducers, elbows, and tees, are made in accordance with strict quality standards such as ASTM A403. Suitable for critical piping systems, Vipul’s 316L fittings provide dependable strength, improved durability, and high resistance to chemical and marine environments.
| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
|---|---|
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Manufacturing process | Press, Forge, Push, Cast, etc. |

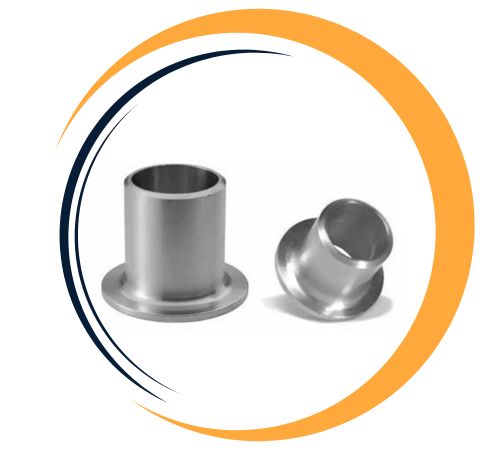

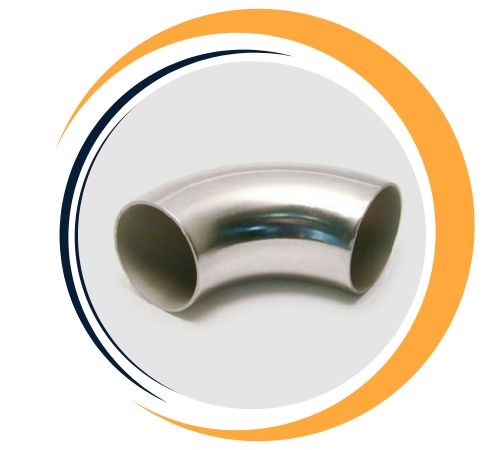

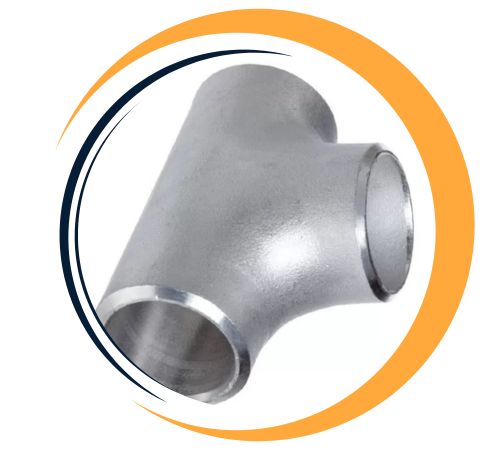

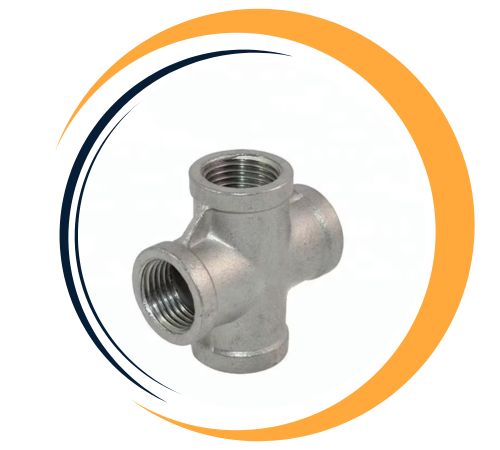

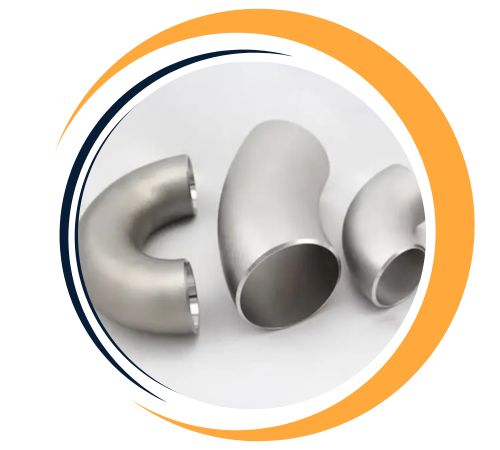

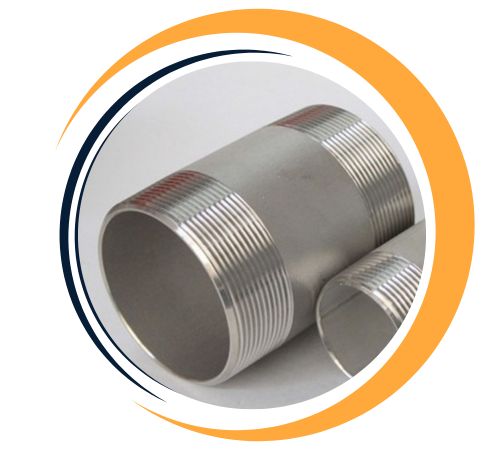

| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap |
Chromium (16–18%), Nickel (10–14%), Molybdenum (2–3%), and Carbon ≤0.03% make up Vipul Pipes and Tubes’ stainless steel 316L pipe fittings. The low carbon content reduces the chance of intergranular corrosion after welding and enhances weldability. Tensile strength ≥485 MPa, yield strength ≥170 MPa, and elongation ≥40% are all displayed by these fittings. Long-term resistance to chemical attacks, scaling, and stress corrosion cracking is provided by SS 316L, which operates dependably in high-chloride, acidic, and marine environments. It is perfect for industrial and sanitary applications due to its corrosion resistance and mechanical stability.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Harry Fittings one of the largest suppliers of Stainless Steel 316L Pipe Fittings in Houston, USA. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 316L is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 316L Pipe Fittings in the USA.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 316L Pipe Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17-11-02 / Z3CND18-14-03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
SS 316L Pipe Fittings offer exceptional corrosion resistance, particularly in chloride-rich environments, making them ideal for marine, chemical, and food processing industries. The low carbon content enhances weldability and reduces the risk of carbide precipitation, ensuring excellent performance in high-temperature applications. These fittings are highly durable, resistant to pitting, crevice corrosion, and stress corrosion cracking. They also maintain strength and integrity in aggressive environments, offering long-lasting reliability. Stainless Steel 316L fittings are easy to fabricate, install, and maintain, making them a trusted choice for demanding industrial applications.
| Nom. Pipe Size | 90° Elbows | 45° Elbows | 180° Return Bends | Tees | Lap Joint Stub Ends | Caps | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Long Rad. | Short Rad. | 3R | Long Rad. | 3R | Long Rad. | Short Rad. | C | M | F | G | R | E | |||
| A | A | A | B | B | O | K | O | K | |||||||
| ½ | 1.50 | – | – | 0.62 | – | 3.00 | 1.88 | – | – | 1.00 | 1.00 | 3.00 | 1.38 | 0.12 | 1.00 |
| ¾ | 1.50 | – | – | 0.75 | – | 3.00 | 2.00 | – | – | 1.12 | 1.12 | 3.00 | 1.69 | 0.12 | 1.00 |
| 1 | 1.50 | 1.00 | – | 0.88 | – | 3.00 | 2.19 | 2.00 | 1.62 | 1.50 | 1.50 | 4.00 | 2.00 | 0.12 | 1.50 |
| 1¼ | 1.88 | 1.25 | – | 1.00 | – | 3.75 | 2.75 | 2.50 | 2.06 | 1.88 | 1.88 | 4.00 | 2.50 | 0.19 | 1.50 |
| 1½ | 2.25 | 1.50 | – | 1.12 | – | 4.50 | 3.25 | 3.00 | 2.44 | 2.25 | 2.25 | 4.00 | 2.88 | 0.25 | 1.50 |
| 2 | 3.00 | 2.00 | 6.00 | 1.38 | 2.50 | 6.00 | 4.19 | 4.00 | 3.19 | 2.50 | 2.50 | 6.00 | 3.62 | 0.31 | 1.50 |
| 2½ | 3.75 | 2.50 | 7.50 | 1.75 | 3.12 | 7.50 | 5.19 | 5.00 | 3.94 | 3.00 | 3.00 | 6.00 | 4.12 | 0.31 | 1.50 |
| 3 | 4.50 | 3.00 | 9.00 | 2.00 | 3.75 | 9.00 | 6.25 | 6.00 | 4.75 | 3.38 | 3.38 | 6.00 | 5.00 | 0.38 | 2.00 |
| 3½ | 5.25 | 3.50 | 10.50 | 2.25 | – | 10.50 | 7.25 | 7.00 | 5.50 | 3.75 | 3.75 | 6.00 | 5.50 | 0.38 | 2.50 |
| 4 | 6.00 | 4.00 | 12.00 | 2.50 | 5.00 | 12.00 | 8.25 | 8.00 | 6.25 | 4.12 | 4.12 | 6.00 | 6.19 | 0.44 | 2.50 |
| 5 | 7.50 | 5.00 | 15.00 | 3.12 | – | 15.00 | 10.31 | 10.00 | 7.75 | 4.88 | 4.88 | 8.00 | 7.31 | 0.44 | 3.00 |
| 6 | 9.00 | 6.00 | 18.00 | 3.75 | 7.44 | 18.00 | 12.31 | 12.00 | 9.31 | 5.62 | 5.62 | 8.00 | 8.50 | 0.50 | 3.50 |
| 8 | 12.00 | 8.00 | 24.00 | 5.00 | 9.94 | 24.00 | 16.31 | 16.00 | 12.31 | 7.00 | 7.00 | 8.00 | 10.62 | 0.50 | 4.00 |
| 10 | 15.00 | 10.00 | 30.00 | 6.25 | 12.44 | 30.00 | 20.38 | 20.00 | 15.38 | 8.50 | 8.50 | 10.00 | 12.75 | 0.50 | 5.00 |
| 12 | 18.00 | 12.00 | 36.00 | 7.50 | 14.88 | 36.00 | 24.38 | 24.00 | 18.38 | 10.00 | 10.00 | 10.00 | 15.00 | 0.50 | 6.00 |
| 14 | 21.00 | 14.00 | 42.00 | 8.75 | 17.38 | 42.00 | 28.00 | 28.00 | 21.00 | 11.00 | 11.00 | 12.00 | 16.25 | 0.50 | 6.50 |
| 16 | 24.00 | 16.00 | 48.00 | 10.00 | 19.88 | 48.00 | 32.00 | 32.00 | 24.00 | 12.00 | 12.00 | 12.00 | 18.50 | 0.50 | 7.00 |
| 18 | 27.00 | 18.00 | 54.00 | 11.25 | 22.38 | 54.00 | 36.00 | 36.00 | 27.00 | 13.50 | 13.50 | 12.00 | 21.00 | 0.5 | 8.00 |
| 20 | 30.00 | 20.00 | 60.00 | 12.50 | 24.88 | 60.00 | 40.00 | 40.00 | 30.00 | 15.00 | 15.00 | 12.00 | 23.00 | 0.50 | 9.00 |
| 22 | 33.00 | 22.00 | 66.00 | 13.50 | 27.31 | 66.00 | 44.00 | 44.00 | 33.00 | 16.50 | 16.50 | 12.00 | 25.25 | 0.50 | 10.00 |
| 24 | 36.00 | 24.00 | 72.00 | 15.00 | 29.81 | 72.00 | 48.00 | 48.00 | 36.00 | 17.00 | 17.00 | 12.00 | 27.25 | 0.50 | 10.50 |
| 26 | 39.00 | – | 78.00 | 16.00 | 32.31 | – | – | – | – | 19.50 | 19.50 | – | – | – | 10.50 |
| 28 | 42.00 | – | 84.00 | 17.25 | 34.75 | – | – | – | – | 20.50 | 20.50 | – | – | – | 10.50 |
| 30 | 45.00 | – | 90.00 | 18.50 | 37.25 | – | – | – | – | 22.00 | 22.00 | – | – | – | 10.50 |
| 32 | 48.00 | – | – | 19.75 | – | – | – | – | – | 23.50 | 23.50 | – | – | – | 10.50 |
| 34 | 51.00 | – | 102.00 | 21.00 | 42.25 | – | – | – | – | 25.00 | 25.00 | – | – | – | 10.50 |
| 36 | 54.00 | – | 108.00 | 22.25 | 44.69 | – | – | – | – | 26.50 | 26.50 | – | – | – | 10.50 |
| 38 | 57.00 | – | 114.00 | 23.62 | 47.25 | – | – | – | – | 28.00 | 28.00 | – | – | – | 12.00 |
| 40 | 60.00 | – | 120.00 | 24.88 | 49.75 | – | – | – | – | 29.50 | 29.50 | – | – | – | 12.00 |
| 42 | 63.00 | – | 126.00 | 26.00 | 52.19 | – | – | – | – | 30.00 | 28.00 | – | – | – | 12.00 |
| 44 | 66.00 | – | 132.00 | 27.38 | 54.69 | – | – | – | – | 32.00 | 30.00 | – | – | – | 13.50 |
| 46 | 69.00 | – | 138.00 | 28.62 | 57.19 | – | – | – | – | 33.50 | 31.50 | – | – | – | 13.50 |
| 48 | 72.00 | – | 144.00 | 29.88 | 59.69 | – | – | – | – | 35.00 | 33.00 | – | – | – | 13.50 |
Yes, custom sizes are available for Stainless Steel 316L Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@harryfittings.us.
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Water treatment facilities, marine systems, chemical processing, pharmaceutical manufacturing, and oil and gas pipelines all make extensive use of the stainless steel 316L pipe fittings from Vipul Pipes and Tubes. These fittings are perfect for process vessels, heat exchangers, condensers, and pressure piping because of their exceptional resistance to acids, chlorides, and saline environments. Applications like biotech, dairy, and sanitary piping systems that demand cleanliness and corrosion resistance are particularly well-suited for SS 316L. It is appropriate for both static and dynamic loading situations due to its strong mechanical characteristics and simplicity of welding.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
