Harry Fittings, a reputed factory and supplier company with headquarters in Houston, USA, has been famous for providing top–class pipe fittings for various industrial applications. Promoting precision engineering and long-lasting performance, the organization guarantees its products adhere to high industry standards. Out of their extensive range of products, Stainless Steel 202 Pipe Fittings are particularly renowned for delivering outstanding performance in corrosive and high-strength conditions. These fittings are greatly appreciated by industries for their affordability, dependability, and versatility. Believed in by customers all over the world, Harry Fittings focuses on excellence in quality, timely delivery, and exceptional customer satisfaction.
| Specifications | : | ASTM A403 / ASME SA403 |
| Dimensions | : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness | : | SCH 5S, SCH 10S, SCH 20S, SCH 40S, SCH 80S, SCH 120S, SCH 1605, SCH XXS |
| Type | : | Seamless / Welded / Fabricated |
Stainless Steel 202 Pipe Fittings consist of 17–19% Chromium, 4–6% Nickel, 7.5–10% Manganese, and up to 0.08% Carbon, with minimal amounts of Silicon, Phosphorus, and Sulfur. This composition strikes a balance between corrosion resistance, strength, and price. They provide a tensile strength of 515 MPa, yield strength of 275 MPa, and elongation of 40%, exhibiting very good toughness and formability. These fittings also have very good weldability, hence can be used for a variety of structural and industrial purposes where performance as well as cost-effectiveness is required.
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |

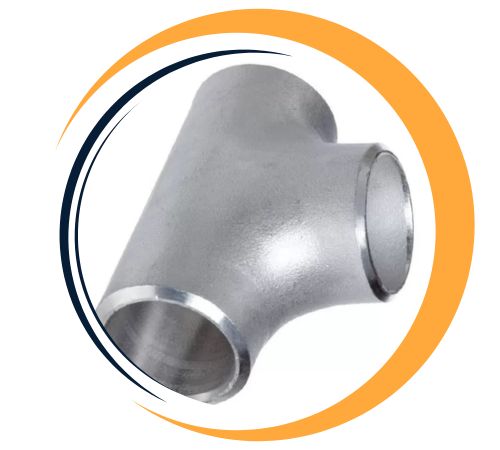

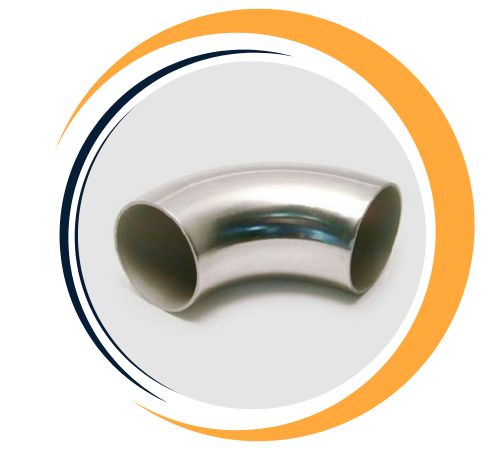

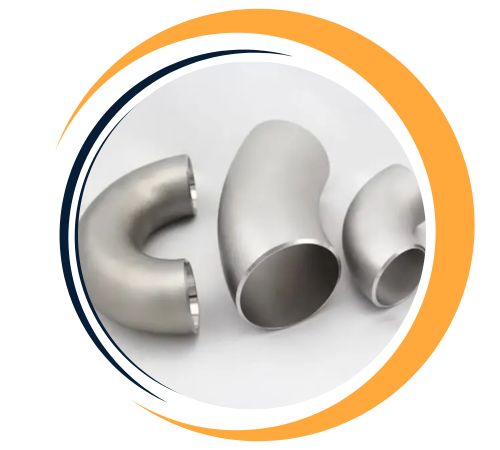

Harry Fittings one of the largest suppliers of Stainless Steel 202 Pipe Fittings in Houston, USA. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 202 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 202 Pipe Fittings in the USA.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 202 Pipe Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | UNS | WERKSTOFF NR. |
| SS 202 | S20200 | 1.4373 |
Stainless steel 202 pipe fittings enhance corrosion resistance, making it suitable for slightly corroded environments. They provide high strength and durability, providing long life even under high stress and temperature conditions. Their lightweight nature makes them easier to handle and install compared to other stainless steel products. The SS 202 fittings are cost-effective, providing performance at an affordable price. They also exhibit excellent weldability and machinability, facilitating fabrication. With their sleek finish, these inserts are ideal for decor and retain their shine over time, requiring minimal maintenance.
| Element | Density, lb/in3 | Modulus of Elasticity, psi | Linear Expansion, 68-212°F, /°F | Thermal Conductivity, Btu/ft hr°F | Heat Capacity, Btu/lb°F | Electrical Resistivity, Ω-inch |
| SS 202 | 0.285 | 29 x 106 | 9.4 x 10-6 | 8.7 | 0.12 | 27.6 x 10-6 |
| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
|
(inches) |
Long Radius |
Short Radius |
Long Radius |
Long Radius |
||||
|
(mm) |
(inches) |
Center to Face
(inches) |
Center to Face
(inches) |
Center to Face
(inches) |
Radius
(inches) |
Center to Center
(inches) |
Back to face
(inches) |
|
|
1/2 |
21.3 |
0.840 |
1 1/2 |
– |
5/8 |
2 |
1 7/8 |
|
|
3/4 |
26.7 |
1.050 |
1 1/8 |
– |
7/16 |
2 1/4 |
1 11/16 |
|
|
1 |
33.4 |
1.315 |
1 1/2 |
1 |
7/8 |
3 |
2 3/16 |
|
|
1 1/4 |
42.2 |
1.660 |
1 7/8 |
1 1/4 |
1 |
3 3/4 |
2 3/4 |
|
|
1 1/2 |
48.3 |
1.900 |
2 1/4 |
1 1/2 |
1 1/8 |
3 |
4 1/2 |
3 1/4 |
|
2 |
60.3 |
2.375 |
3 |
2 |
1 3/8 |
4 |
6 |
4 3/16 |
|
2 1/2 |
73.0 |
2.875 |
3 3/4 |
2 1/2 |
1 3/4 |
5 |
7 1/2 |
5 3/16 |
|
3 |
88.9 |
3.500 |
4 1/2 |
3 |
2 |
6 |
9 |
6 1/4 |
|
3 1/2 |
101.6 |
4.000 |
5 1/4 |
3 1/2 |
2 1/4 |
7 |
10 1/2 |
7 1/4 |
|
4 |
114.3 |
4.500 |
6 |
4 |
2 1/2 |
8 |
12 |
8 1/4 |
|
5 |
141.3 |
5.563 |
7 1/2 |
5 |
3 1/8 |
10 |
15 |
10 5/16 |
|
6 |
168.3 |
6.625 |
9 |
6 |
3 3/4 |
12 |
18 |
12 5/16 |
|
8 |
219.1 |
8.625 |
12 |
8 |
5 |
12 |
24 |
16 5/16 |
|
10 |
273.1 |
10.750 |
15 |
10 |
6 1/4 |
15 |
30 |
20 3/8 |
|
12 |
323.9 |
12.750 |
18 |
12 |
7 1/2 |
18 |
36 |
24 3/8 |
Yes, custom sizes are available for Stainless Steel 202 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@harryfittings.us.
Stainless Steel 202 Pipe Fittings find extensive use in those applications where moderate resistance to corrosion, high strength, and cost-effectiveness are required. These fittings are widely used in food processing, chemical facilities, drug equipment, and shipbuilding because they resist oxidation and corrosive fluids. They can also be applied to construction, automotive parts, and heating, ventilation, and air conditioning systems, providing durability and consistent performance under extreme conditions. SS 202 is a cost–effective substitute for higher grades such as 304, offering a viable solution for decorative piping, structural support, and light industrial systems that have a need for reliable service life.
