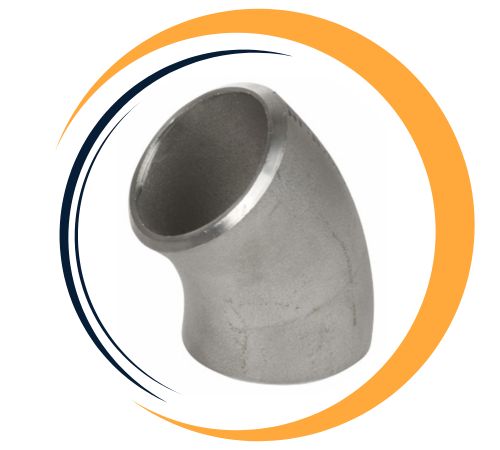

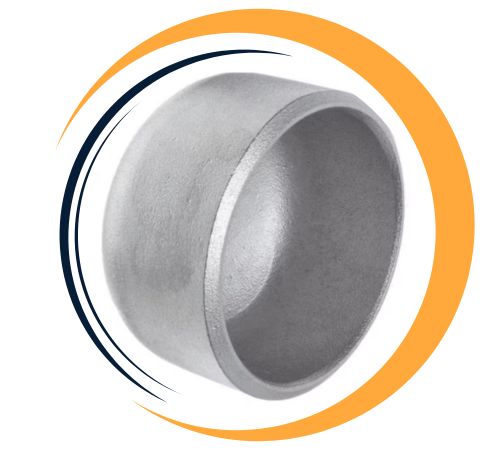

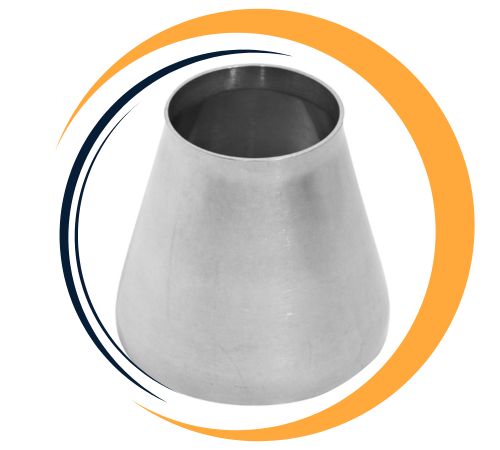

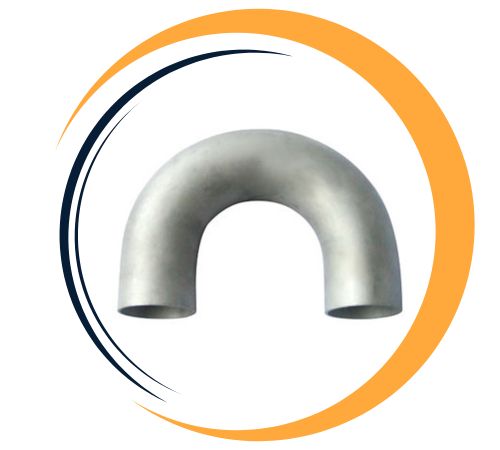

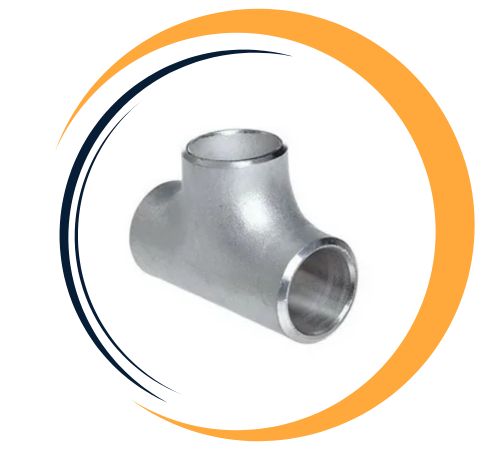

Based in Houston, USA, Vipul Pipes and Tubes is a well-known producer and supplier of premium stainless steel 304 buttweld fittings that are designed for both industrial and general-purpose piping applications. The most popular austenitic stainless steel is SS 304, which has good mechanical strength, good corrosion resistance, and ease of fabrication. ASTM A403 specifications are followed in the manufacturing of these buttweld fittings, which include elbows, tees, reducers, and caps. Vipul’s SS 304 fittings are perfect for the food processing, chemical, petrochemical, pharmaceutical, and water treatment industries because they guarantee precision engineering, longevity, and an excellent surface finish.
| Specifications | ASTM A403 / ASME SA403 |
|---|---|
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
Chromium (18–20%), Nickel (8–11%), Carbon ≤0.08%, and trace amounts of Manganese, Silicon, and Phosphorus make up Vipul Pipes and Tubes’ stainless steel 304 buttweld fittings. In a variety of settings, these fittings show outstanding resistance to corrosion. Tensile strength ≥515 MPa, yield strength ≥205 MPa, and elongation ≥40% are examples of mechanical properties. Because of its excellent ductility, formability, and weldability, stainless steel 304 is a popular material for structural and pressure applications. It is very adaptable and dependable because it retains mechanical stability in moderately corrosive and temperature-controlled environments.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304 | min. | – | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||
| 304L | min. | – | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
Harry Fittings is a leading supplier of Stainless Steel 304 Buttweld Fittings in Houston, USA. We offer an extensive range of Stainless Steel 304 Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
| 304L | S30403 | 304S11 | 58E | 1.4306/1.4307 | X2CrNi18-9 / X2CrNi19-11 | 2332 | SUS 304L |
Stainless Steel 304 Buttweld Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 304 buttweld fittings provide excellent corrosion resistance, making them ideal for a variety of environments including marine and chemical applications Their long-lasting strength ensures long service life, and reduces replacement costs. These fittings have excellent weldability, providing easy and reliable installation. With great strength and strength, they withstand changes in pressure and temperature well. Their smooth interior reduces friction losses and increases flow efficiency in piping systems. Also, SS 304 is cost-effective compared to high-quality alloys while maintaining a luxurious appearance. These advantages make SS 304 buttweld fittings versatile for a variety of applications.

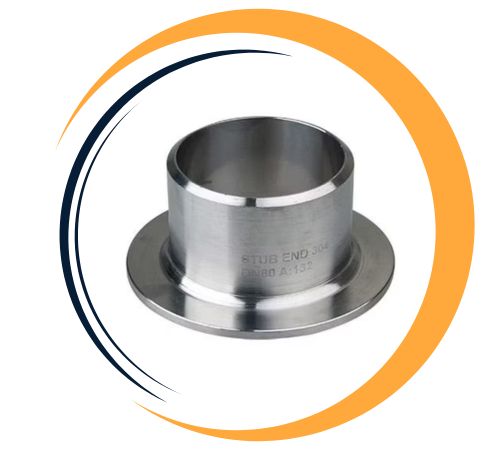

| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | (inches) | Length (inches) | Center to End (inches) | Center to End (inches) | Lap Diameter (inches) | Long Length (inches) | Short Length (inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes for Stainless Steel 304 Buttweld Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
Stainless steel 304 buttweld fittings from Vipul Pipes and Tubes are extensively utilised in a variety of industries, including dairy equipment, food and beverage processing, pharmaceuticals, chemical manufacturing, water treatment, and textile processing. Plumbing, sanitary piping, low to moderate pressure systems, and general fluid transport can all use these fittings. For non-critical and non-extreme service conditions, stainless steel 304 is the preferred material due to its corrosion resistance, affordability, and ease of fabrication. These fittings provide strength, durability, and hygienic conditions over extended periods of use, whether they are utilised in municipal piping networks, commercial kitchens, or brewery lines.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
