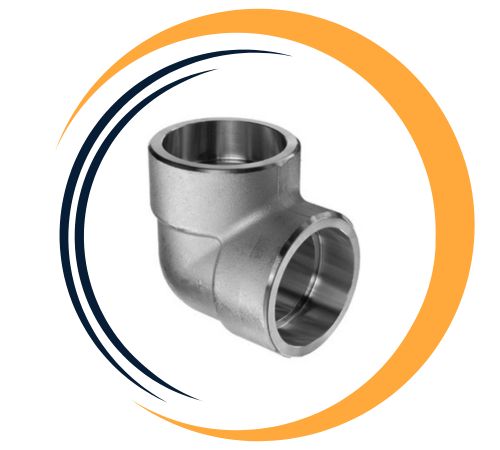

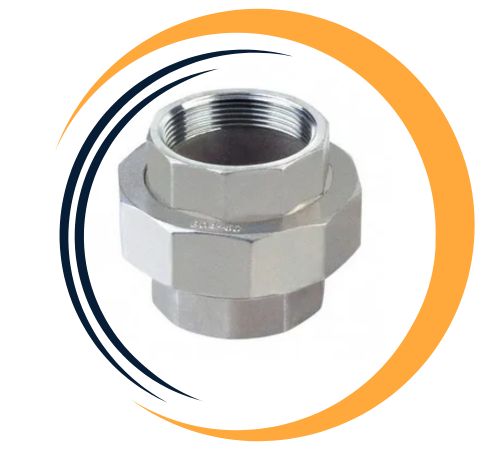

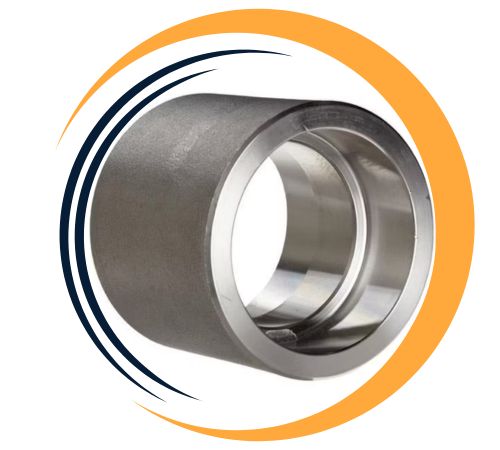

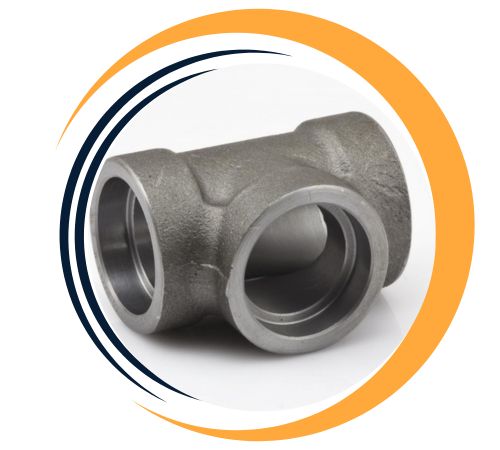

Harry Fittings is a reliable name for manufacturing and supplying Stainless Steel 410 Forged Fittings from our Houston, USA facility. Our SS 410 forged fittings are highly prized for their hardness, strength, and wear resistance, which makes them suitable for structural and mechanical use. 410, being a martensitic stainless steel, is heat-treatable and offers moderate corrosion resistance with high tensile strength, making it preferable for applications that demand the same. We manufacture forged couplings, tees, elbows, and unions that conform to international standards of reliability and accuracy. Harry Fittings is the first choice for long-lasting SS 410 forged fittings in harsh industrial conditions.
| Standard : | ASTM A182 / ASME SA182 |
| Grade : | S41000/ 410 / 1.4006 |
| Specifications : | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size : | 1/8″~4″ (DN6~DN100) |
| Pressure Class : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type : | Socketweld Fittings, Screwed-Threaded Fittings |
410 Stainless Steel Forged Fittings are mostly made up of iron along with 11.5–13.5% chromium and negligible nickel. The martensitic stainless steel fittings are reputed for having a high strength value and high hardness after heat treatment. They possess a tensile strength of about 450–790 MPa and yield strength of around 275 MPa. Although not as corrosion-resistant as austenitic grades, they are suitable for mildly corrosive and high-wear environments. It is magnetic and possesses good mechanical properties at elevated temperatures, hence is applied for high-strength forged parts and wear-extreme systems.
| C | Mn | Si | P | S | Cr | Ni |
| 0.15 max | 1.00 max | 1.00 max | 0.04 max | 0.03 max | min: 11.5 max: 13.5 | 0.50 max |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 410 | 65 (450) | 30 (205) | 20 | 217 | 96 |
Harry Fittings is a leading supplier of Stainless Steel 410 Forged Fittings in Houston, USA. We offer an extensive range of Stainless Steel 410 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Stainless Steel | Tradename | UNS no. | Werkstoff No. |
| 410 | 410 Stainless | S41000 | 1.4006 |
| Density lbm/in3 | Thermal Conductivity (BTU/h ft. °F) | Electrical Resistivity (in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/ °F x 10-6 | Specific Heat (BTU/lb/ °F) | Melting Range (°F) |
| at 68°F: 0.276 | 14.4 at 212°F | 56 at 68°F | 29 | 5.90 at 68 – 392°F | 0.11 at 68°F to 212°F | 2700 to 2790 |
| 6.5 at 68 – 1112°F |
Choose Stainless Steel 410 Forged Fittings from Harry Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless steel 410 forged fittings provide excellent corrosion resistance, high strength and durability, making them ideal for rugged applications Their resistance to oxidation and wear ensures extended service even in harsh environments. These materials are also highly resistant to acids and chemicals, providing a wide range of applications in industries such as petrochemicals, food processing, and power plants in addition to improving the performance of welded 410 stainless steel devices ease of access, allowing flexibility during installation. Its high hardness and strength make it suitable for both high and low temperatures, making it reliable and safe in critical systems.
Yes, custom sizes for Stainless Steel 410 Forged Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us
| ASME b16.9 Fittings Normal Pipe Size | ANSI b16 9 Pipe Fitting O D Y | Wall Thickness T (Pipe Elbow Sch.) | LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight | LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
|---|---|---|---|---|---|---|---|---|---|---|
| millimeter | inch. | millimeter | millimeter | Schedule | millimeter | kilogram | millimeter | kilogram | millimeter | kilogram |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Stainless Steel 410 Forged Fittings are extensively utilized in engineering and mechanical sectors where wear resistance and strength are important. Typical uses are steam and gas turbine parts, oil & gas lines, petrochemical processing systems, valve bodies, and pump casings. They are suitable for moderate corrosion conditions and are best for mechanical stress or abrasive fluid-exposed systems. SS 410‘s resistance to thermal cycling and mechanical abrasion makes it perfect for power generation, refinery, and tool handling systems. These forged fittings provide firm, secure joints in high-pressure systems demanding toughness and durability.
