Harry Fittings offers premium Stainless Steel 304/304L forged fittings in Houston, USA, for general-purpose and moderately corrosive services. These fittings have excellent weldability, corrosion resistance, and pressure-handling strengths. 304L, the low-carbon version, is best suited for welded systems where intergranular corrosion is to be prevented. Made according to ASTM A182, these fittings find widespread application in dairy, beverage, water treatment, and petrochemical pipelines. With in-house inspection and quick Houston-based shipping, Harry Fittings facilitates industries requiring dependable, cost-efficient stainless steel fittings that fulfill both performance and regulatory requirements for safe and consistent operation.
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
304/304L stainless steel has ~18–20% chromium and ~8–11% nickel. 304L possesses lower carbon (~0.03%) for enhanced weldability and corrosion protection in heat-affected areas. The mechanical properties are tensile strength ~75 ksi (515 MPa), yield strength ~30 ksi (205 MPa), and elongation ~40%. The alloys are resistant to oxidation and corrosion in most atmospheric and mild chemical exposures. 304L provides equivalent mechanical strength to 304 but with greater protection from carbide precipitation during welding.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Harry Fittings is a leading supplier of Stainless Steel 304/304L Forged Fittings in Houston, USA. We offer an extensive range of Stainless Steel 304/304L Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| Products | Size | |
|---|---|---|

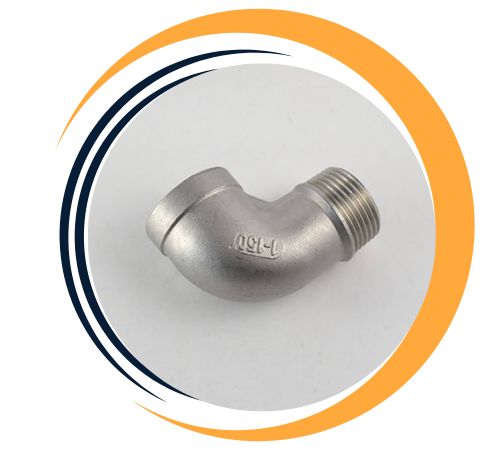

| ASTM A182 SS 304 Forged 90° Elbow | ASTM A182 SS 304 Forged 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

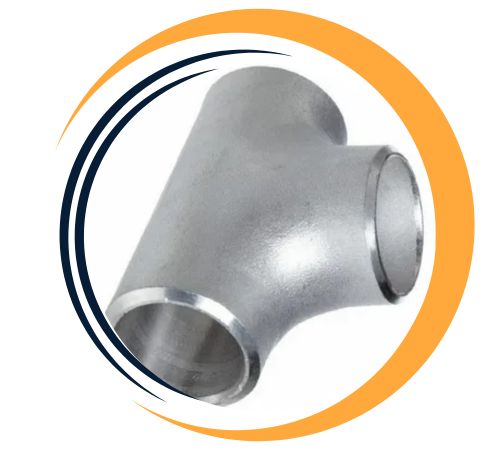

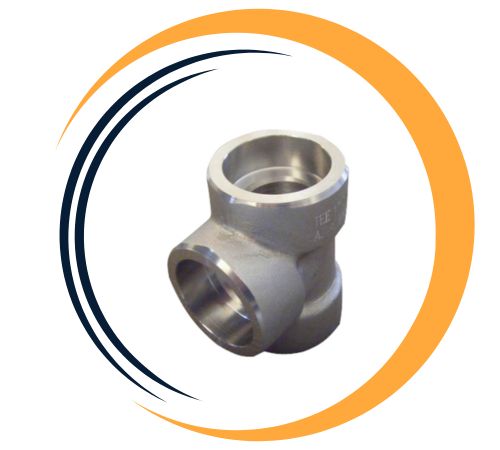

| ASTM A182 SS 304 Forged Tee | ASTM A182 SS 304 Forged Union | |
| ASTM A182 SS 304 Forged Cross | ASTM A182 SS 304 Forged Insert | |
| ASTM A182 SS 304 Forged Bushing | ASTM A182 SS 304 Forged Pipe Nipple | |
| ASTM A182 SS 304 Forged Cap | ASTM A182 SS 304 Forged Coupling | |
| ASTM A182 SS 304 Forged Plug | ASTM A182 SS 304 Forged Street Elbow | |
Choose Stainless Steel 304/304L Forged Fittings from Harry Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless steel 304/304L forged fittings offer many advantages, including superior corrosion resistance, especially in acidic and alkaline environments, and their high tensile strength and toughness ensure durability under stress and temperature conditions even at higher levels. The low carbon content of 304L improves weldability and reduces the risk of carbide precipitation, thereby maintaining overall system integrity. These fittings are highly resistant to corrosion, oxidation and staining, making them ideal for a wide range of applications including pharmaceutical, food processing and marine etc. Their smooth finish makes for easy maintenance and excellent aesthetic appeal.
Yes, custom sizes for Stainless Steel 304/304L Forged Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us
| DN-NPT | MAJOR DIAMETER MM | TAPPING DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps | 1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness | SCH 80 / XS | SCH 160 | XXS |
304/304L forged fittings find diverse applications in water treatment systems, food processing, chemical handling, and plumbing. In Houston, they are used in breweries, pharmaceutical plants, and industrial piping utility where sanitation, corrosion resistance, and cost-effectiveness are of primary consideration. Due to their superior formability and welding compatibility, they are ideal for use in process piping and structural piping. 304L‘s weldable character makes it best suited for pressure piping and fabricated tanks. These fittings offer reliable service under ambient and slightly corrosive conditions, providing long life and low maintenance in general industrial service.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
