Harry Fittings, a Houston-based USA company, is a reliable manufacturer and exporter of high-quality industrial fittings for high-performance uses. With an unyielding focus on precision engineering, long-lasting quality, and customer satisfaction, we meet the needs of industries worldwide with a comprehensive array of reliable solutions. Of our core products, Alloy Steel WP22 Buttweld Fittings are designed to provide outstanding performance in high-pressure and high-temperature settings. Known for their higher strength, corrosion resistance, and thermal stability, these fittings can be suitably used in power plants, petrochemical plants, and oil & gas operations, providing safety, reliability, and long life.
| Specifications | : | ASTM A234 / ASME SA234 |
| Size | : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | : | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Type | : | Seamless / Welded / Fabricated |
Alloy Steel WP22 Buttweld Fittings consist of 2.25% Chromium and 1% Molybdenum, along with limited contents of carbon, manganese, silicon, phosphorus, and sulfur. This alloy provides improvement in creep strength, oxidation resistance, and resistance at high temperatures. Mechanically, WP22 fittings have a minimum tensile strength of 415 MPa, yield strength of 205 MPa, and a minimum of 30% elongation, making them tough at severe pressure and thermal stresses. Due to their superior resistance to thermal fatigue, corrosion, and wear, they are extremely well suited for critical service conditions in harsh industrial processes.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP22 | 0.05-0.15 | 0.3-0.6 | ≤0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP22 | 415-585 | ≥205 | ≥20 |

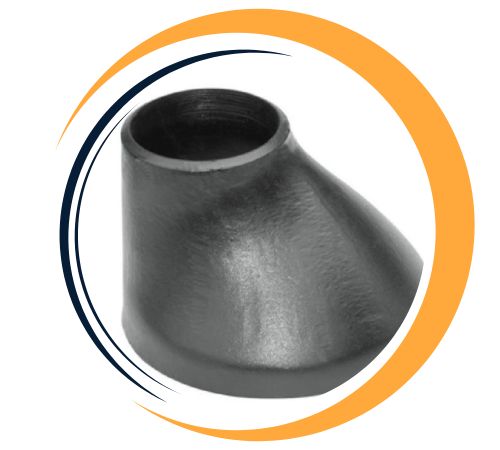

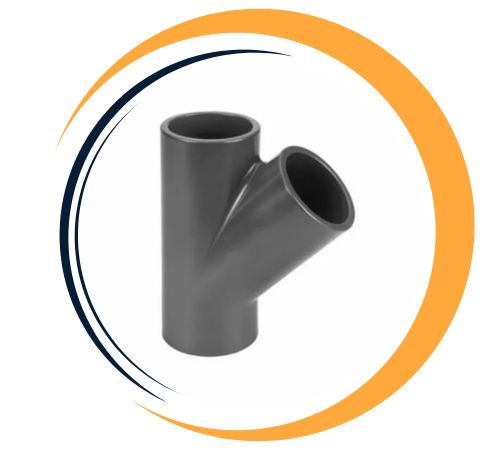

Harry Fittings one of the largest suppliers of Alloy Steel WP22 Buttweld Fittings in Houston, USA. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Alloy Steel WP22 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Alloy Steel WP22 Buttweld Fittings in the USA.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP22 Buttweld Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

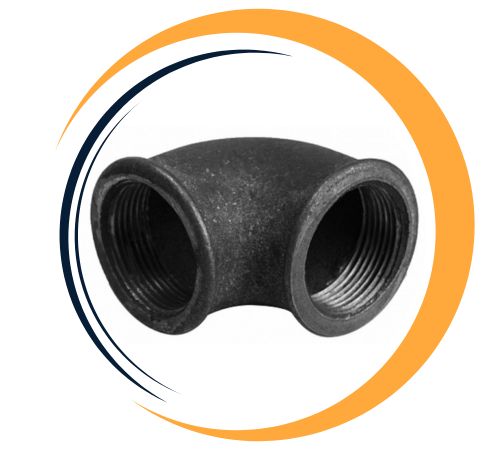

| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Alloy Steel WP22 Buttweld Fittings offer numerous advantages, making them ideal for high-temperature and high-pressure applications. Their composition, with chromium and molybdenum, provides superior resistance to oxidation, thermal fatigue, and corrosion. These Buttweld Fittings exhibit excellent weldability, strength, and durability, ensuring long-term performance in demanding industries such as power generation, petrochemical, and oil & gas. WP22 fittings maintain their structural integrity even in extreme environments, reducing the risk of failure. They also offer cost-effective solutions by requiring minimal maintenance and providing a longer service life, making them a reliable choice for critical systems.

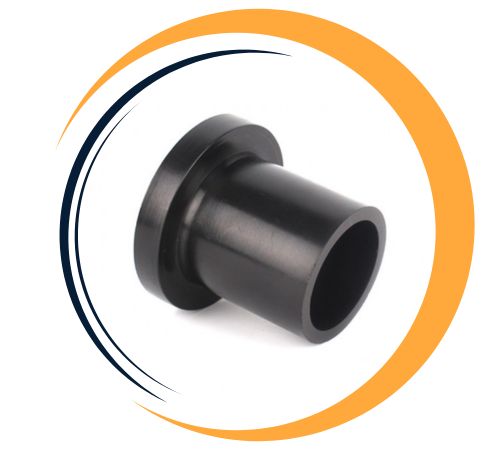

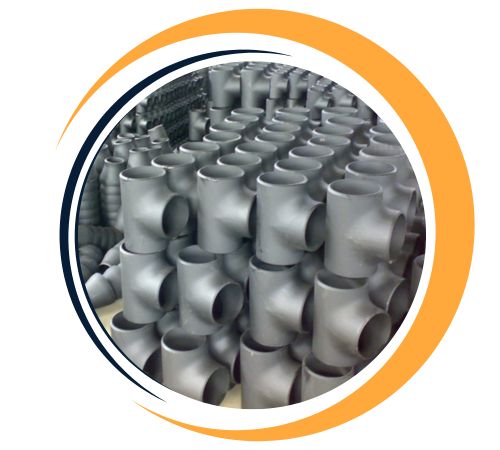

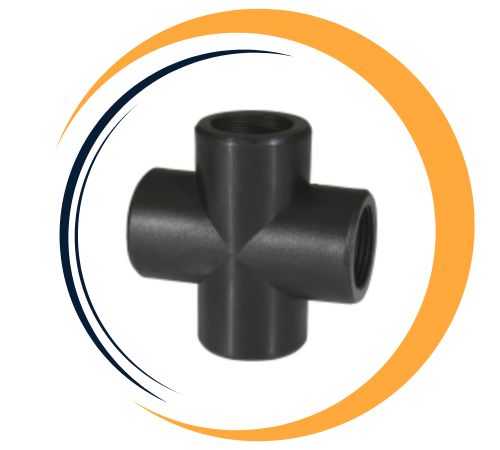

| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | ASME B16.9 Pipe End Cap | ASME B16.9 Straight Tee | ASME B16.9 Straight Cross | ASME B16.9 Long And Short Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inch./ Inches) | (millimeter/ MM) | (Inches) | Length (Inches) | Center to End (Inches) | Center to End (Inches) | Lap Diameter (Inches) | Long Length (Inches) | Short Length (Inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes are available for Alloy Steel WP22 Buttweld Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@harryfittings.us.
Alloy Steel WP22 Buttweld Fittings find extensive applications in industries which function under higher pressure and temperature conditions. They are in their best application in the power generation industry in steam piping, heat exchangers, boilers, and pressure vessels. The petrochemical industry uses WP22 fittings for carrying hot fluids and gases, while oil & gas industry use them in refineries, offshore drilling platforms, and processing units where they need to be highly reliable. Their thermal stress and oxidation resistance guarantees stable performance in harsh environments, which makes them the choice for significant piping systems that need safe and long-duration operation.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
