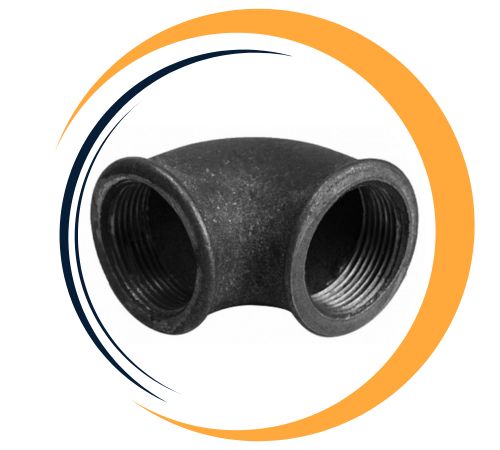

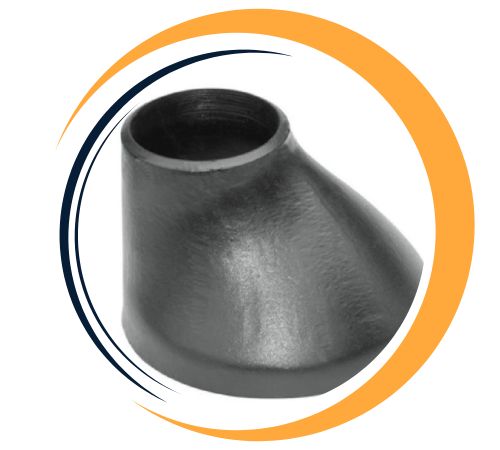

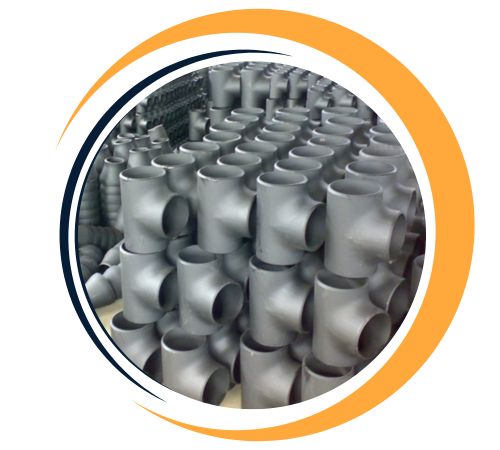

For use in high-temperature and high-pressure piping systems, Harry Fittings, a renowned industrial manufacturer and supplier with headquarters in Houston, USA, provides premium Alloy Steel WP11 Buttweld Fittings. Available as elbows, tees, reducers, and caps, these fittings are made to ASTM A234 WP11 specifications and are perfect for critical applications in industrial boilers, refineries, petrochemical plants, and power generation. Harry Fittings is renowned for its exceptional strength, metallurgical consistency, and dimensional accuracy. It produces reliable products that are supported by strict quality control and timely delivery schedules. For cutting-edge piping solutions that provide dependable, long-term performance in demanding environments, customers turn to Harry Fittings.
| Specifications | : | ASTM A234 / ASME SA234 |
| Size | : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | : | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Type | : | Seamless / Welded / Fabricated |
The main constituents of Alloy Steel WP11 Buttweld Fittings are molybdenum (0.44–0.65%) and chromium (1–1.5%), with trace amounts of silicon, manganese, and carbon (0.05–0.15%). Excellent resistance to heat, oxidation, and corrosion is provided by this composition. In order to improve mechanical strength and ductility, these fittings are usually heat-treated (normalised and tempered). WP11 fittings have an elongation of about 20%, a yield strength of at least 205 MPa, and a tensile strength of 415–585 MPa. They provide exceptional structural stability and resistance to thermal fatigue and creep because they are made to endure extended exposure to high temperatures and pressures.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP11 | 0.05-0.2 | 0.3-0.8 | 0.5-1 | ≤0.030 | ≤0.030 | 1-1.5 | 0.44-0.65 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP11 | 415-585 | ≥205 | ≥20 |
Harry Fittings one of the largest suppliers of Alloy Steel WP11 Buttweld Fittings in Houston, USA. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Alloy Steel WP11 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Alloy Steel WP11 Buttweld Fittings in the USA.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP11 Buttweld Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| ASTM A234 WP11 Fittings Temperature Ratings | Types Of Pressure Ratings Class | ||||
|---|---|---|---|---|---|
| Class 150# | Class 300# | ||||
| 1/4 – 1 (Inch) | 1 1/4 – 2 (Inch) | 2 1/2 – 3 (Inch) | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | – | 935 | 750 | 560 |
| 450 | 232 | – | 725 | 600 | 475 |
| 500 | 260 | – | 510 | 450 | 385 |
| 550 | 288 | – | 300 | 300 | 300 |
| Normal Size Of Pipe (DN) | Schedule Number | Outer Daimeter In inch millmeter | Wall Thickness inch millmeter | Mass lb/ft kg/m |
|---|---|---|---|---|
| 1/8 6 | 5S | 0.405 10.3 | … | … |
| 1/8 6 | 10S | 0.405 10.3 | 0.049 1.24 | 0.19 0.28 |
| 1/8 6 | 40S | 0.405 10.3 | 0.068 1.73 | 0.24 0.37 |
| 1/8 6 | 80S | 0.405 10.3 | 0.095 2.41 | 0.31 0.47 |
| 1/4 8 | 5S | 0.540 13.7 | … | … |
| 1/4 8 | 10S | 0.540 13.7 | 0.065 1.65 | 0.33 0.49 |
| 1/4 8 | 40S | 0.540 13.7 | 0.088 2.24 | 0.43 0.63 |
| 1/4 8 | 80S | 0.540 13.7 | 0.119 3.02 | 0.54 0.80 |
| 3/8 10 | 5S | 0.675 17.1 | … | … |
| 3/8 10 | 10S | 0.675 17.1 | 0.065 1.65 | 0.42 0.63 |
| 3/8 10 | 40S | 0.675 17.1 | 0.091 2.31 | 0.57 0.84 |
| 3/8 10 | 80S | 0.675 17.1 | 0.126 3.20 | 0.74 1.10 |
| 1/2 15 | 5S | 0.840 21.3 | 0.065 1.65 | 0.54 0.80 |
| 1/2 15 | 10S | 0.840 21.3 | 0.083 2.11 | 0.67 1.00 |
| 1/2 15 | 40S | 0.840 21.3 | 0.109 2.77 | 0.85 1.27 |
| 1/2 15 | 80S | 0.840 21.3 | 0.147 3.73 | 1.09 1.62 |
| 3/4 20 | 5S | 1.050 26.7 | 0.065 1.65 | 0.68 1.02 |
| 3/4 20 | 10S | 1.050 26.7 | 0.083 2.11 | 0.86 1.28 |
| 3/4 20 | 40S | 1.050 26.7 | 0.113 2.87 | 1.13 1.69 |
| 3/4 20 | 80S | 1.050 26.7 | 0.154 3.91 | 1.48 2.20 |
| 1 25 | 5S | 1.315 33.4 | 0.065 1.65 | 0.68 1.02 |
| 1 25 | 10S | 1.315 33.4 | 0.083 2.11 | 0.86 1.28 |
| 1 25 | 40S | 1.315 33.4 | 0.133 3.38 | 1.68 2.50 |
| 1 25 | 80S | 1.315 33.4 | 0.179 4.55 | 2.17 3.24 |
| 1-1/4 32 | 5S | 1.660 42.2 | 0.065 1.65 | 1.11 1.65 |
| 1-1/4 32 | 10S | 1.660 42.2 | 0.109 2.77 | 1.81 2.69 |
| 1-1/4 32 | 40S | 1.660 42.2 | 0.140 3.56 | 2.27 3.39 |
| 1-1/4 32 | 80S | 1.660 42.2 | 0.191 4.85 | 3.00 4.47 |
| 1-1/2 40 | 5S | 1.900 48.3 | 0.065 1.65 | 1.28 1.90 |
| 1-1/2 40 | 10S | 1.900 48.3 | 0.109 2.77 | 2.09 3.11 |
| 1-1/2 40 | 40S | 1.900 48.3 | 0.145 3.68 | 2.72 4.05 |
| 1-1/2 40 | 80S | 1.900 48.3 | 0.200 5.08 | 3.63 5.41 |
| 2 50 | 5S | 2.375 60.3 | 0.065 1.65 | 1.61 2.39 |
| 2 50 | 10S | 2.375 60.3 | 0.109 2.77 | 2.64 3.93 |
| 2 50 | 40S | 2.375 60.3 | 0.154 3.91 | 3.66 5.44 |
| 2 50 | 80S | 2.375 60.3 | 0.218 5.54 | 5.03 7.48 |
| 2-1/2 65 | 5S | 2.875 73 | 0.083 2.11 | 2.48 3.69 |
| 2-1/2 65 | 10S | 2.875 73 | 0.120 3.05 | 3.53 5.26 |
| 2-1/2 65 | 40S | 2.875 73 | 0.203 5.16 | 5.80 8.63 |
| 2-1/2 65 | 80S | 2.875 73 | 0.276 7.01 | 7.67 11.41 |
| 3 80 | 5S | 3.500 88.9 | 0.083 2.11 | 3.03 4.52 |
| 3 80 | 10S | 3.500 88.9 | 0.120 3.05 | 4.34 6.46 |
| 3 80 | 40S | 3.500 88.9 | 0.216 5.49 | 7.58 11.29 |
| 3 80 | 80S | 3.500 88.9 | 0.300 7.62 | 10.26 15.27 |
| 3-1/2 90 | 5S | 4.000 101.6 | 0.083 2.11 | 3.48 5.18 |
| 3-1/2 90 | 10S | 4.000 101.6 | 0.120 3.05 | 4.98 7.41 |
| 3-1/2 90 | 40S | 4.000 101.6 | 0.226 5.74 | 9.12 13.57 |
| 3-1/2 90 | 80S | 4.000 101.6 | 0.318 8.08 | 12.52 18.64 |
| 4 100 | 5S | 4.500 114.3 | 0.083 2.11 | 3.92 5.84 |
| 4 100 | 10S | 4.500 114.3 | 0.120 3.05 | 5.62 8.37 |
| 4 100 | 40S | 4.500 114.3 | 0.237 6.02 | 10.80 16.08 |
| 4 100 | 80S | 4.500 114.3 | 0.337 8.56 | 15.00 22.32 |
| 5 125 | 5S | 5.563 141.3 | 0.109 2.77 | 6.36 9.46 |
| 5 125 | 10S | 5.563 141.3 | 0.134 3.40 | 7.78 11.56 |
| 5 125 | 40S | 5.563 141.3 | 0.258 6.55 | 14.63 21.77 |
| 5 125 | 80S | 5.563 141.3 | 0.375 9.53 | 20.80 30.97 |
| 6 150 | 5S | 6.625 168.3 | 0.109 2.77 | 7.59 11.31 |
| 6 150 | 10S | 6.625 168.3 | 0.134 3.40 | 9.30 13.83 |
| 6 150 | 40S | 6.625 168.3 | 0.280 7.11 | 18.99 28.26 |
| 6 150 | 80S | 6.625 168.3 | 0.432 10.97 | 28.60 42.56 |
Yes, custom sizes are available for Alloy Steel WP11 Buttweld Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@harryfittings.us.
Thermal power plants, boilers, superheaters, heat exchangers, and steam pipelines that function in high-pressure, high-temperature environments frequently use alloy steel WP11 buttweld fittings. These fittings are crucial in chemical processing facilities, petrochemical facilities, and oil and gas refineries where heat resistance and material dependability are crucial. WP11 is appropriate for moving high-temperature gases, corrosive fluids, and superheated steam due to its strong mechanical and thermal characteristics. Because of their robust weldability and leak-proof connections, industrial systems that function in harsh service conditions can have safer, longer-lasting pipeline performance with less maintenance and more efficiency.
