Incoloy 825 Buttweld Fittings Manufacturer and Supplier in Houston, USA

Harry Fittings, a top-notch manufacturer and supplier based in Houston, USA, is all about high-quality Incoloy 825 buttweld fittings. These fittings are celebrated for their remarkable resistance to corrosion and stress cracking, making them perfect for tough industries like chemical processing, oil and gas, and marine engineering. Thanks to their advanced manufacturing techniques and a strong commitment to quality, Harry Fittings provides reliable and durable solutions that meet a variety of industrial needs, ensuring smooth performance and happy customers.

ANSI B16.9 Incoloy 825 Welded Buttweld Fittings USA, Incoloy UNS N08800 Seamless Pipe Fittings United kingdom, Incoloy 3d Pipe Bend Houston, Alloy 825 Short Radius Elbow Supplier Los Angeles, Incoloy 825 Pipe Fittings Houston, 825 Incoloy® Alloy Welded Pipe Fittings Dealer Texas, 825 Incoloy Alloy End Cap California, ASTM B366 825 Incoloy Alloy 90 degree Elbow Exporters and Suppliers in USA, Incoloy 1.5d Pipe Bend United kingdom, 825 Incoloy Alloy End Cap Houston, Incoloy WERKSTOFF NR1.4958 Cross Exporter in Texas.

Incoloy 825 Buttweld Fittings Specification

Grade	Incoloy Alloy 825 / UNS N08825
Standard	ASTM B366, ASME SB366
Dimensions	ASME B16.28, ASME/ANSI B16.9, MSS-SP-43
Incoloy 825 Seamless Fittings	1/2″ NB – 10″ NB
Incoloy 825 Welded Fittings	1/2″ NB – 48″ NB
Form	90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap
Schedule	SCH 5 To SCH XXS
Wall Thickness	from 2 to 40 mm
Type	Seamless / Welded / Fabricated

Incoloy 825 Buttweld Fittings Chemical Composition

Ni	Fe	C	Mn	Si	Mb	Cu	Cr	Al	Ti	S
38.0 – 46.0	22.0 min	0.05 max	1.0 max	0.5 max	2.5 – 3.5	1.5 – 3.0	19.5 – 23.5	0.2 max	0.6 – 1.2	0.015 max

Incoloy 825 Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa -550	Psi – 32,000 , MPa – 220	30 %

Incoloy 825 buttweld fittings are made from a nickel-iron-chromium alloy, enhanced with molybdenum, copper, and titanium. This unique blend gives them exceptional resistance to both oxidizing and reducing acids, as well as protection against chloride-induced stress corrosion cracking. With a tensile strength of around 550 MPa and impressive creep resistance, these fittings are built to thrive in high-temperature and high-pressure settings. Their sturdy mechanical properties make them a go-to choice for applications that demand strength, durability, and resistance to corrosive substances.

825 Incoloy Alloy End Cap USA, Incoloy® Alloy 825 180 Deg bend United kingdom, Incoloy Alloy 825 Pipe Bend Houston, Jis Ncf 825 Pipe Fittings Los Angeles, Incoloy Alloy 825 Stub Ends Houston, Incoloy 825 Pipe End Cap Texas, 825 Incoloy Alloy End Cap California, Incoloy® Alloy 825 Equal Tee Houston, Ansi B16.9 800h Incoloy 45 / 90 / 180 Deg. Reducing Elbow USA, Incoloy 825 Pipe Elbow Houston, Supplier of Incoloy 825 45 degree Elbow USA, Incoloy 10d Pipe Bend Los Angeles, 825 Incoloy Reducer, Incoloy® Alloy 825 Pipe bend Supplier in USA.

Largest Incoloy 825 Buttweld Fittings Supplier in Houston, USA

Harry Fittings is a leading supplier of Incoloy 825 Buttweld Fittings in Houston, USA. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Why Choose Incoloy 825 Buttweld Fittings from Harry Fittings?

Incoloy 825 Buttweld Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

ANSI B16.9 Incoloy 825 Welded Buttweld Fittings USA, Incoloy UNS N08800 Seamless Pipe Fittings United kingdom, Incoloy 3d Pipe Bend Houston, Alloy 825 Short Radius Elbow Supplier Los Angeles, Incoloy 825 Pipe Fittings Houston, 825 Incoloy® Alloy Welded Pipe Fittings Dealer Texas, 825 Incoloy Alloy End Cap California, ASTM B366 825 Incoloy Alloy 90 degree Elbow Exporters and Suppliers in USA, Incoloy 1.5d Pipe Bend United kingdom, 825 Incoloy Alloy End Cap Houston, Incoloy WERKSTOFF NR1.4958 Cross Exporter in Texas.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Incoloy 825 buttweld fittings offer several key advantages. Their exceptional resistance to a wide range of corrosive environments, including acids, seawater, and gases, makes them ideal for harsh industrial conditions. The alloy’s high nickel and chromium content ensures excellent stress corrosion cracking resistance and oxidation resistance. Incoloy 825 also provides superior weldability, allowing for easy fabrication and installation. With excellent mechanical properties, including high strength and durability, these fittings are perfect for use in industries such as chemical processing, oil and gas, and power generation, ensuring long-lasting and reliable performance.

Incoloy 825 Buttweld Fittings Dimensions

Nominal PipeSize	Outside Diameter		90° Elbows		45° Elbows		180° Returns
*(inches)*	–		Long Radius	Short Radius	Long Radius		Long Radius
	*(mm)*	*(inches)*	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8		7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

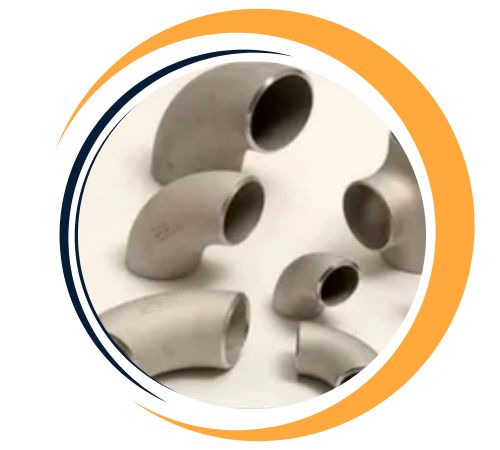

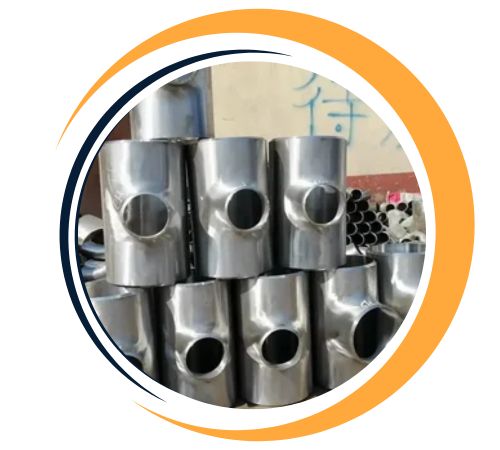

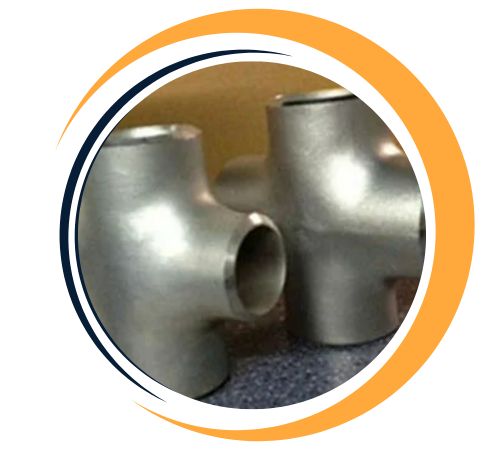

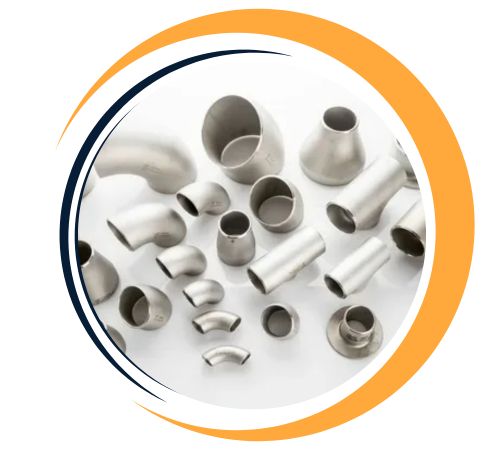

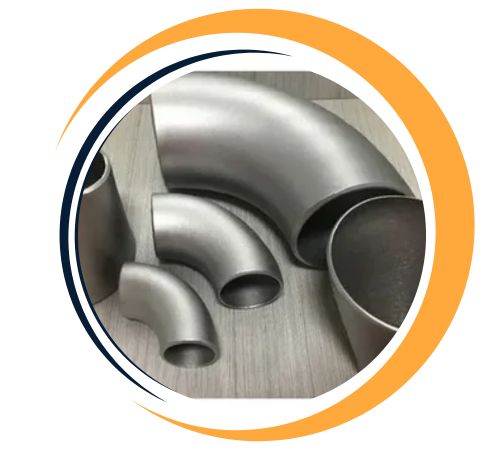

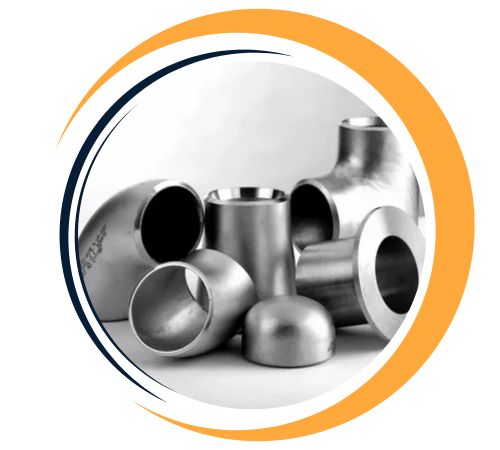

Types of Incoloy 825 Buttweld Fittings

Are Custom Sizes Available for Incoloy 825 Buttweld Fittings?

Yes, custom sizes for Incoloy 825 Buttweld Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.

825 Incoloy Alloy End Cap USA, Incoloy® Alloy 825 180 Deg bend United kingdom, Incoloy Alloy 825 Pipe Bend Houston, Jis Ncf 825 Pipe Fittings Los Angeles, Incoloy Alloy 825 Stub Ends Houston, Incoloy 825 Pipe End Cap Texas, 825 Incoloy Alloy End Cap California, Incoloy® Alloy 825 Equal Tee Houston, Ansi B16.9 800h Incoloy 45 / 90 / 180 Deg. Reducing Elbow USA, Incoloy 825 Pipe Elbow Houston, Supplier of Incoloy 825 45 degree Elbow USA, Incoloy 10d Pipe Bend Los Angeles, 825 Incoloy Reducer, Incoloy® Alloy 825 Pipe bend Supplier in USA.

Application Industry of Incoloy 825 Buttweld Fittings

Incoloy 825 buttweld fittings are a staple in industries that deal with aggressive chemicals and harsh conditions. They’re particularly well-suited for chemical processing plants, where being resistant to sulfuric and phosphoric acids is crucial. These fittings shine in oil and gas operations, especially in sour gas environments, and are frequently used in marine applications due to their ability to resist seawater corrosion. Moreover, they find their place in power generation, pollution control, and heat exchanger systems, ensuring top-notch performance and reliability even in challenging situations.
