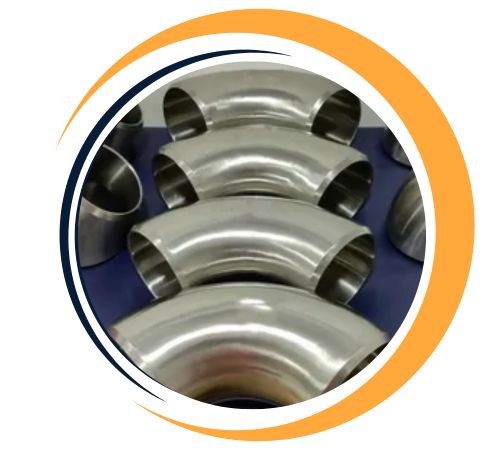

Harry Fittings Manufacturer and Suppliers, based in Houston, USA, has built a solid reputation for producing and distributing Titanium Grade 2 Buttweld Fittings. Renowned for their meticulous craftsmanship and commitment to international quality standards, they deliver strong, corrosion-resistant solutions suitable for a variety of industrial piping systems. With a keen focus on durability and customer satisfaction, Harry Fittings serves sectors like chemical processing, desalination, marine, and power generation. Their Titanium Grade 2 fittings are prized for their excellent formability, moderate strength, and resistance to oxidizing environments, making them perfect for critical fluid handling tasks.
| Specifications | ASTM B363 / ASME SB363 |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | ½”NB to 24″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Type | Seamless, ERW, Welded, Fabricated |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness. |
| Pipe Fittings Type | Reducer (Concentric & Eccentric), CAP, Stubend (Long &Short), Nipple (Barrel), Bend (Long & Short), Elbow (180 Deg., 90 Deg. & 45 Deg.), Tee (Equal & Unequal) |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
Titanium Grade 2 is a commercially pure titanium alloy, consisting of about 99.2% titanium along with small amounts of oxygen, iron, and other elements. It boasts remarkable corrosion resistance in both oxidizing and mildly reducing environments. With a tensile strength of around 344 MPa and a yield strength of about 275 MPa, it offers solid mechanical properties along with impressive ductility and weldability. Its density is roughly 4.51 g/cm³, and it maintains its performance across a broad temperature range. These characteristics make it particularly well-suited for applications that require moderate strength and exceptional corrosion resistance.
Harry Fittings is a leading supplier of Titanium Grade 2 Buttweld Fittings in Houston, USA. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 2 Buttweld Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| ASME B16.9 ASTM B363 Grade 2 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| MSS SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
| All Fittings | 90°and 45° Ells and Tees | Reducers and Lap Joint Stub | Caps | 180° Returns | Angularity Tol | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pipe Plane Size (NPS) | Outside(1) Diameter at Bevel | Inside(1) Diameter at End | Wall(2) Thickness | Centre-to- End Dimension A,B,C,M | Overall Length L | Overall Length E | Centre-to- Centre Dimension O | Back-to- Face Dimension K | Alignment at Ends U | Nominal Pipe SIze | Off Angle Q | Off Angle P |
| 1/2 TO 2-1/2 | +1/16 | ±1/32 | Not less than 87-1/2% of Normal Thickness | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 12 to 4 | 1/32 | 1/16 |
| -1/32 | 5 to 8 | 1/16 | 1/8 | |||||||||
| 3 TO 3-1/2 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 10 to 12 | 3/32 | 3/16 | |
| 4 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 14 to 16 | 3/32 | 1/4 | |
| 5 TO 8 | +1/32 | ±1/16 | ±1/16 | ±1/16 | ±1/4 | ±1/4 | ±1/4 | ±1/32 | 18 to 24 | 1/8 | 3/8 | |
| -1/16 | ||||||||||||
| 10 TO 18 | +1/16 | ±1/8 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | All dimensions are in inches | |||
| -1/8 | ||||||||||||
| 20 TO 24 | +1/4 | ±3/32 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | ||||
| -3/32 | ||||||||||||
Yes, custom sizes for Titanium Grade 2 Buttweld Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
Titanium Grade 2 Buttweld Fittings are a go-to choice in industries that need a solid mix of corrosion resistance, reliability, and weldability. These fittings shine in chemical processing, marine applications, desalination plants, and heat exchangers, where they face tough environmental challenges. Their outstanding resistance to seawater and oxidizing chemicals makes them perfect for offshore and underwater piping systems. Plus, thanks to their biocompatibility and non-toxicity, they find a place in the pharmaceutical and medical fields as well. At Harry Fittings, we take pride in ensuring that every product is crafted to exact specifications, delivering reliable performance for both standard and custom-engineered piping solutions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
