Harry Fittings is a renowned Houston, USA-based supplier and manufacturer of high-quality pipe fittings providing precision-engineered solutions to diverse industries. Among our high–end products, Super Duplex Steel S32760 Pipe Fittings are highly prized for their high corrosion resistance, superior strength, and durability in harsh environments. Designed to international standards, these fittings suit demanding applications like offshore, chemical, and marine industries. With a firm commitment to excellence and prompt delivery, Harry Fittings supplies reliable, high-performance fittings that address the varied requirements of clients from across the world.
| Specification | ASTM A815/ ASME SA815 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type Of Dimension | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Type | Seamless / Welded / Fabricated |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule | Schedule 5 TO Schedule XXS. |
Super Duplex Steel S32760 Pipe Fittings consist of around 24–25% Chromium, 6–8% Nickel, 3–4% Molybdenum, and Nitrogen, Manganese, and trace elements. The high-performance alloy displays excellent corrosion resistance, especially in chloride-rich and aggressive environments. These fittings have tensile strength of up to 1000 MPa, yield strength of approximately 650 MPa, and elongation of 25%. They also have high resistance to pitting, crevice corrosion, and stress corrosion cracking, but possess good toughness and weldability—rendering them the best selection for high-stress, high-pressure industrial applications.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
Harry Fittings is a leading supplier of Super Duplex Steel S32760 Pipe Fittings in Houston, USA. We offer an extensive range of Super Duplex Steel S32760 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex S32760 | 1.4410 | S32760 |
Super Duplex Steel S32760 Pipe Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Super Duplex Steel S32760 pipe fittings offer exceptional corrosion resistance, especially against pitting, crevice corrosion, and stress corrosion cracking, making them ideal for harsh environments like seawater, chemical processing, and oil and gas industries. They combine high strength and excellent toughness, ensuring reliable performance under extreme pressure and temperature conditions. With excellent weldability, these fittings are easy to fabricate, reducing installation time and costs. Their resistance to chloride-induced corrosion and superior mechanical properties enhance longevity, making them a cost-effective solution for demanding industrial applications.

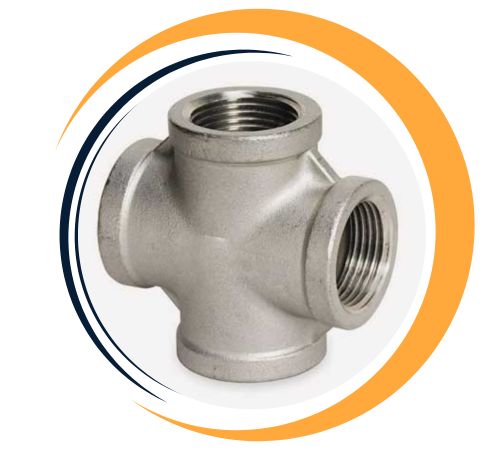

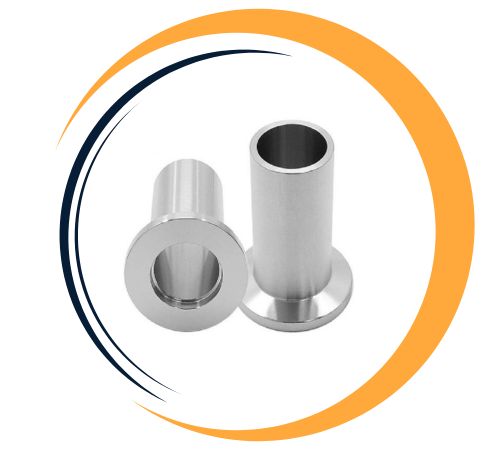

| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes for Super Duplex Steel S32760 Pipe Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
Super Duplex Steel S32760 Pipe Fittings find extensive application in industries demanding superior mechanical strength, corrosion resistance, and long-term performance. Typical uses are offshore oil and gas platforms, petrochemical and chemical processing facilities, desalination plants, power plants, and marine structures. These fittings find special application in conveying seawater, chlorides, and corrosive acidic chemicals under high pressure and heat. Their localized corrosion resistance, such as pitting and crevice attack, guarantees performance in aggressive and corrosive service conditions. In addition, their excellent weldability, formability, and dimensional stability qualify them well for use in critical piping systems and structural assemblies.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
