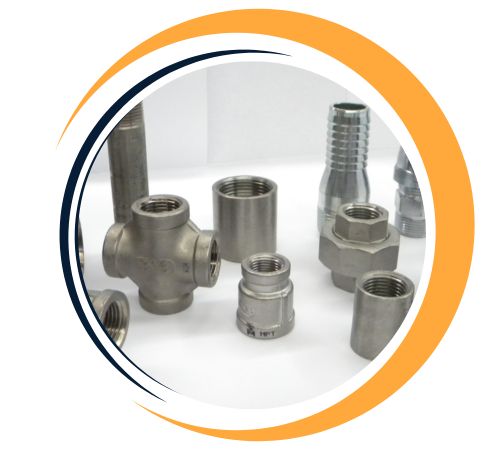

Houston, USA-based Harry Fittings, a reputable manufacturer of high-performance piping components, provides precisely engineered Monel 400 Forged Fittings for applications requiring exceptional strength and resistance to corrosion. A solid solution alloy of copper and nickel, Monel 400 is well known for its exceptional resistance to alkalis, acids, and seawater. Vipul offers a wide variety of ASTM B564-certified forged fittings, such as elbows, tees, couplings, unions, plugs, and crosses. These fittings are perfect for sectors that require durability and leak-proof performance, like offshore oil and gas, chemical processing, power generation, and the marine industry.
Specification : ASTM B564 / ASME SB564
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB

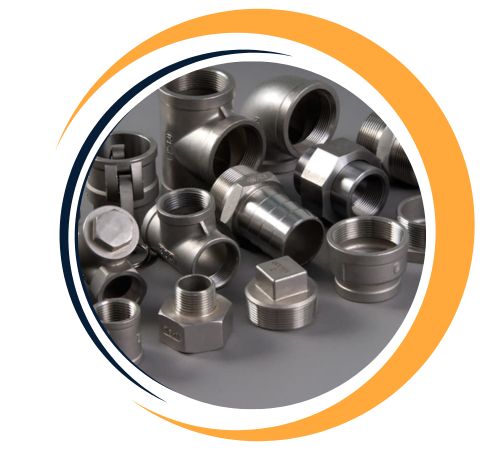

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS.
Socket-weld End – 3000 / 6000/ 9000 LBS.
Nickel (~63%) and copper (~30%) make up the majority of Monel 400 Forged Fittings from Harry Fittings, with trace amounts of iron, manganese, carbon, and silicon. This composition offers exceptional resistance to brine environments, hydrofluoric acid, and corrosion caused by chloride. With tensile strength ≥550 MPa, yield strength ≥170 MPa, and elongation ≥35%, these fittings provide mechanical stability even at extremely high and low temperatures. Because of its exceptional ductility and workability, Monel 400 is perfect for forged parts used in high-stress, pressurised, and welded industrial systems.
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 35,000 , MPa – 240 | Psi – 80,000 , MPa – 550 | 40 % |
Harry Fittings is a leading supplier of Monel 400 Forged Fittings in Houston, USA. We offer an extensive range of Monel 400 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Choose Monel 400 Forged Fittings from Harry Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Monel 400 Forged Fittings offer several advantages, including outstanding corrosion resistance, especially in seawater, acidic, and alkaline environments. They are highly durable, with excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, ensuring reliable performance in harsh conditions. These fittings maintain their strength at elevated temperatures, making them ideal for high-pressure and high-temperature applications. Additionally, Monel 400 offers superior weldability and machinability, allowing for easy customization and installation. With their long-lasting durability and high performance, Monel 400 Forged Fittings are the preferred choice for critical industrial applications.
Yes, custom sizes for Monel 400 Forged Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us
Monel 400 Forged Fittings from Vipul Pipes and Tubes are extensively utilised in heat exchangers, offshore platforms, chemical processing, marine engineering, and valves and pumps. These fittings are crucial in nuclear facilities, desalination plants, and oil refineries because they are particularly well-suited for systems that handle brine, seawater, hydrofluoric acid, and alkaline solutions. In mission-critical operations, dependable, long-lasting connections are ensured by their exceptional strength and resistance to corrosion under high pressure. These fittings are appropriate for explosive and aerospace settings where material integrity and safety are crucial due to Monel 400’s non-magnetic and spark-resistant properties.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
