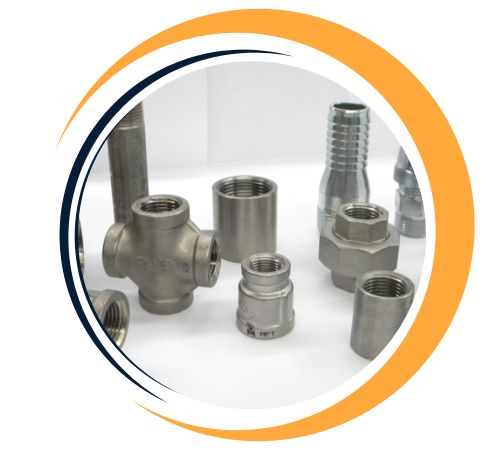

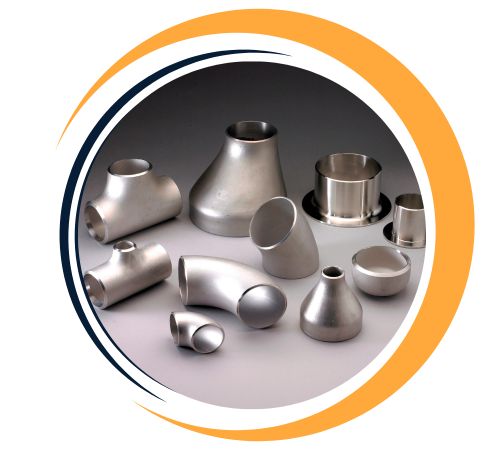

A top producer and supplier of high-quality alloy steel F22 forged fittings for high-pressure and high-temperature industrial systems, Harry Fittings is based in Houston, Texas, in the United States. Our F22 forged fittings are made from high-quality chromium-molybdenum alloy steel and provide exceptional mechanical strength, resistance to corrosion, and long-term thermal stability. We provide a full line of fittings that meet ASTM A182 and ASME standards, such as elbows, tees, couplings and unions. Harry Fittings guarantees dependable performance, dimensional accuracy, and prompt delivery in both domestic and foreign markets by catering to important industries like power generation, petrochemicals, oil & gas, and refineries.
| Specification : | ASTM A182 F22 Forged Fittings |
|---|---|
| Size | Threaded Fittings = ½” – 4” |
| Pressure Rating | Threaded Fittings = Class 2000, Class 3000, Class 6000 |

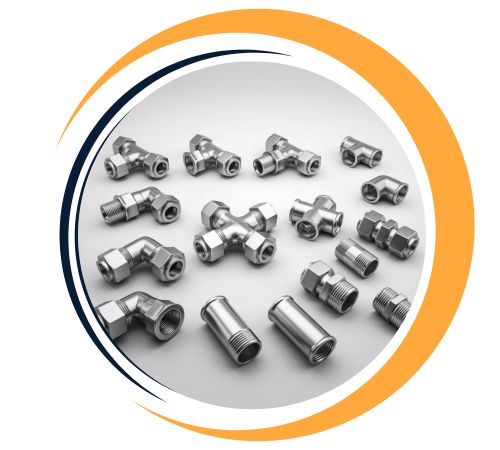

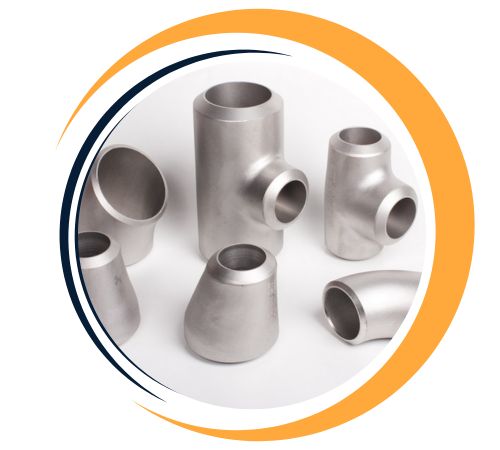

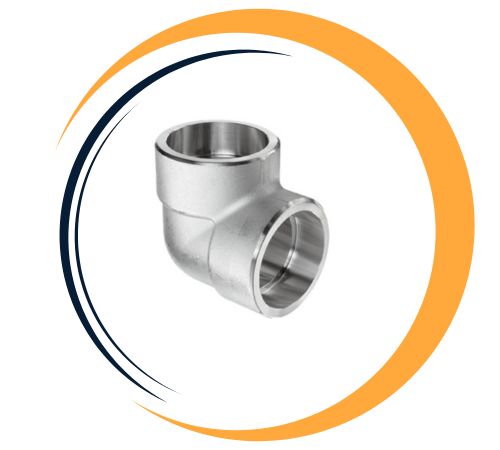

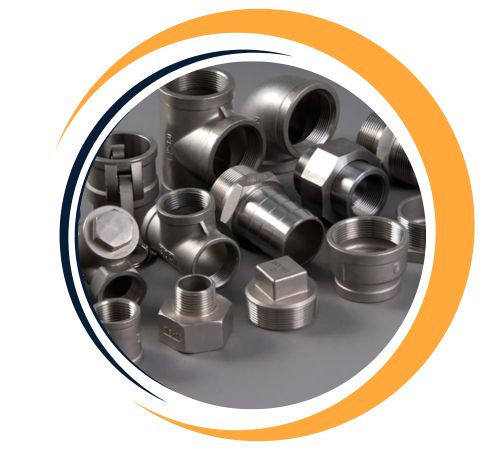

| Type Of Pipe systems | 45 Deg Elbow, Equal tee, Full Coupling, Reducing Tee, 90 Deg Elbow, Half Coupling, Street Elbow, Bull Plug, Boss, Union (Male/Female), Lateral Outlet, 45 Lateral Tee, Equal Cross, Pipe Cap, Branch Outlets, Swage Nipple. |
| Thread Connections | ASME B16.11 (Socket Welding and Threaded) Fittings, MSS-SP-83 (Class Unions) Fittings, ASME B16.3 (Malleable Iron Fittings) Fittings, ASME B16.4 ( Gray Iron Fittings) Fittings, ASME B16.39 (Malleable Iron Unions) Fittings, ASME B16.34 (Valves — Flanged) Fittings, ASME B16.39 (Malleable Iron Pipe Unions, 150#, 250#, Or 300#) Fittings. |
| Standards | ASME B16.11 (American Standard), Bs3799, MSS SP 79, JIS B2302, MSS-SP-97 (Threadolet), MSS-SP-83 (Union), ASME B36.19 (Nipple) |
| Types Of Thread | NPT Fittings, BSPP Fittings, BSPT Fittings, PF Fittings, PT Fittings, MPT Fittings |
| Applications | Oil and Gas Chemical Power station Water Pipeline Noncritical Applications Fire Protection |
| Advantages Of | Simple Usage Easy installation Economic as cheaper |
With iron as the base element, alloy steel F22 forged fittings are made up of 2.25% chromium, 1% molybdenum, and trace amounts of carbon, manganese, silicon, phosphorus, and sulphur. High resistance to oxidation, creep, and thermal fatigue is offered by this alloy. Tensile strength of 415–620 MPa, yield strength of 205–415 MPa, and elongation of roughly 20% are all provided by the fittings. Alloy Steel F22 fittings are heat-treated for improved mechanical performance and durability, making them suitable for elevated temperature service up to 1100°F (593°C). To satisfy ASTM A182 F22 requirements, every product from Harry Fittings is put through a rigorous testing process.
| Gr | C | Mn | Si | S | P | Cr | Mo |
| ASTM A182 F22 Forged Fittings | 0.15 | 0.3 – 0.6 | 0.5 – 1 | 0.03 | 0.03 | 8 – 10 | 0.9 – 1.1 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| ASTM A182 F22 Forged Fittings | 380 | 585 | 20 |
Harry Fittings is a leading supplier of Alloy Steel F22 Forged Fittings in Houston, USA. We offer an extensive range of Alloy Steel F22 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Alloy Steel F22 Forged Fittings from Harry Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Alloy Steel F22 Forged Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
| STANDARD | UNS | WERKSTOFF NR. | Trade Name |
| ASTM A182 F22 Forged Fittings | K21590 | 1.7380 | 2-1/4Cr-1/2Mo-Vd |
| DN | NPS | Center to End NPT Elbow, NPT Tee, NPT Cross A | Center to End 45 Deg Elbow C | O.D. of Band H | Min. Wall Thick. G | Length of Thread. Minimum (1) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| Normal Pipe Size | A | B | QTY | Weight In KG |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
Refineries, power plants, petrochemical processing, and oil and gas pipelines all use alloy steel F22 forged fittings extensively in high-temperature, high-pressure systems. They are perfect for boilers, steam piping, turbine systems, and heat exchangers because of their exceptional resistance to oxidation, scaling, and thermal fatigue. Critical systems that are subjected to periodic mechanical and thermal stresses are particularly well-suited for these fittings. Mission-critical industrial infrastructure around the world trusts F22 forged fittings because of their precise engineering, leak-proof joints, and long-lasting service, structural reliability, and safety in harsh environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
