Harry Fittings is a reputable manufacturer and supplier of Alloy 20 Forged Fittings, proudly based in Houston, USA. They cater to both local and international markets, providing precision-engineered piping components. Renowned for their high-quality, corrosion-resistant fittings, the company serves a diverse array of industries, including chemical processing, petrochemical, and power generation. With a strong focus on excellence and customer satisfaction, Harry Fittings guarantees that every product adheres to strict quality standards. Their Alloy 20 Forged Fittings are especially prized for their durability and performance in harsh, corrosive environments, making them a go-to choice for critical applications.
| Forged Fittings Specifications | ASTM B462/ ASME SB462 |
|---|---|
| Alloy 20 Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Alloy 20 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Alloy 20 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B462 Alloy 20 Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Alloy 20 Forged Fittings Thread | NPT, BSPT, BSPP |
| Alloy 20 Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nickel Alloy 20 Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
These Alloy 20 Forged Fittings are primarily made from nickel, chromium, and iron, with added copper and molybdenum to boost corrosion resistance, particularly in sulfuric acid settings. They boast impressive mechanical properties, featuring a tensile strength of about 80 ksi (552 MPa) and a yield strength of 35 ksi (241 MPa), along with good elongation and toughness. The alloy’s ability to resist pitting, crevice corrosion, and stress corrosion cracking makes it perfect for demanding applications. Plus, its composition allows for excellent weldability and formability, making these fittings a versatile option for corrosive service conditions.
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
Harry Fittings is a leading supplier of Alloy 20 Forged Fittings in Houston, USA. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
Alloy 20 Forged Fittings from Harry Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy 20 Forged Fittings offer exceptional advantages, particularly in challenging industrial environments. They provide outstanding resistance to corrosion, especially against sulfuric, phosphoric, and nitric acids, making them ideal for chemical and pharmaceutical industries. Their excellent mechanical properties ensure high strength, durability, and ease of fabrication. With superior resistance to pitting, crevice corrosion, and stress corrosion cracking, they excel in harsh environments like marine and petrochemical applications. Additionally, their ability to maintain performance across a wide temperature range enhances reliability, ensuring a cost-effective, long-lasting solution for demanding industrial processes.
| ASTM B462 / B462M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Alloy 20 Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Alloy 20 fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| Products | Size | |
|---|---|---|
| ASTM B462 Alloy 20 90° Elbow | ASTM B462 Alloy 20 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM B462 Alloy 20 Forged Tee | ASTM B462 Alloy 20 Union | |

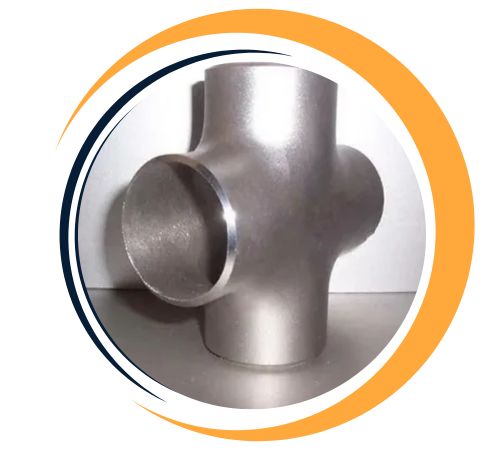

| ASTM B462 Alloy 20 Forged Cross | ASTM B462 Alloy 20 Insert | |
| ASTM B462 Alloy 20 Screwed Bushing | ASTM B462 Alloy 20 Threaded Pipe Nipple | |
| ASTM B462 Alloy 20 Forged Socket weld Cap | ASTM B462 Alloy 20 Screwed Coupling | |
| ASTM B462 Alloy 20 Forged Plug | ASTM B462 Alloy 20 Street Elbow | |
Yes, custom sizes for Alloy 20 Forged Fittings are available at Harry Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@harryfittings.us.
Alloy 20 Forged Fittings find extensive use in industries that require robust resistance to acidic and corrosive environments. They’re commonly utilized in chemical and petrochemical processing plants, especially for handling sulfuric acid, phosphoric acid, and nitric acid. Additionally, these fittings are employed in food processing, pharmaceuticals, power generation, and marine applications, where durability and corrosion resistance are crucial. Their strength and toughness make them ideal for high-pressure piping systems, heat exchangers, and reactor vessels, enhancing operational safety and efficiency in critical process environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
